Transmission/Crankshaft/Crank Case

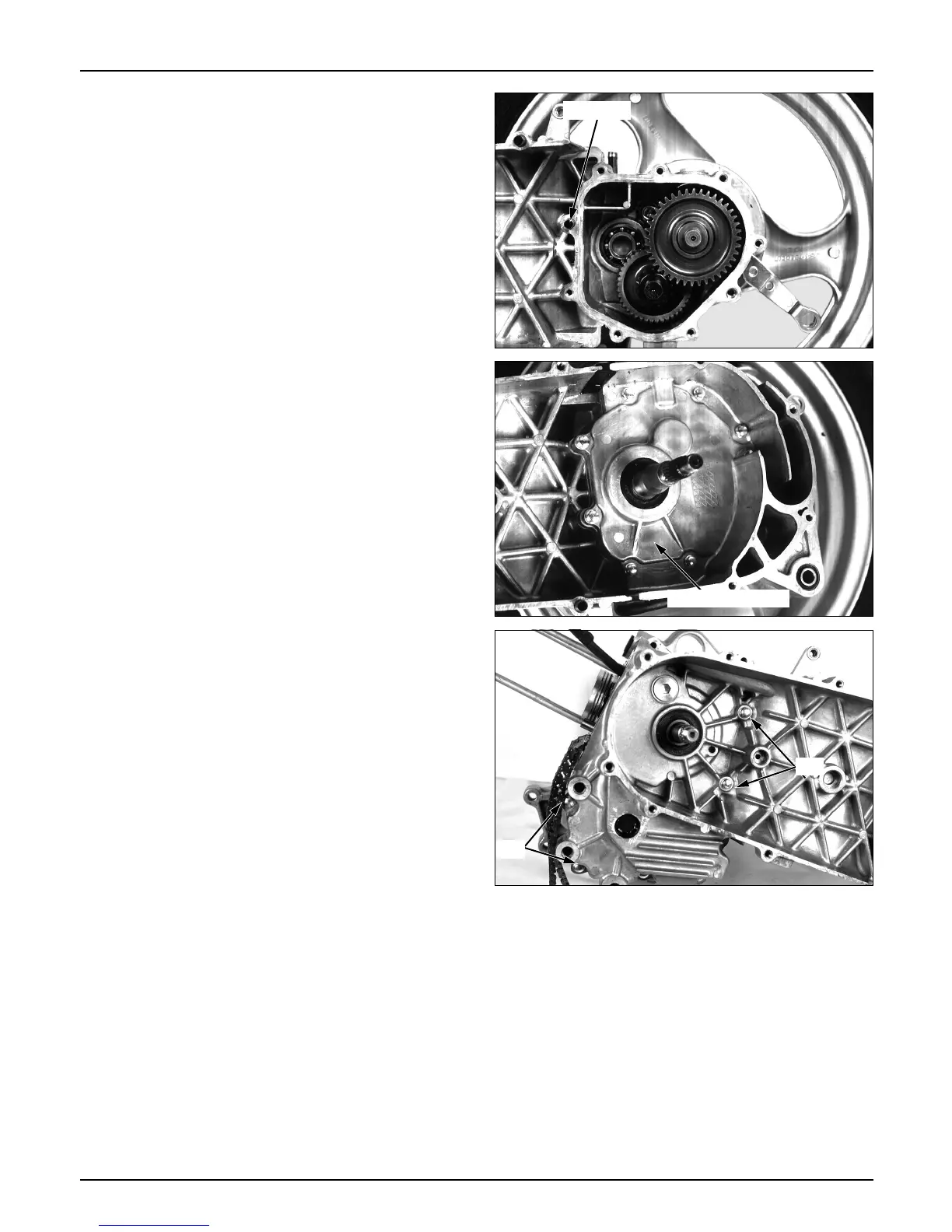

Crank Case Disassembly
● Remove the engine from the frame. ( section 6)
● Remove the R/L crank case cover.
● Remove the transmission cover.
● Remove the parts to disassemble crank case.
● Loosen the seven R/L crank case setting bolts.
● Install a new gasket and dowel pin.
● Tighten the transmission cover with setting bolts.
- Assemble the rear wheel ( section 13)
- Assemble continuously variable transmission
( section 8)
- Assemble the R. crank case cover ( section 8)
● Fill transmission oil.
11-6
Dowel pin
Transmission cover
Bolt
Bolt
