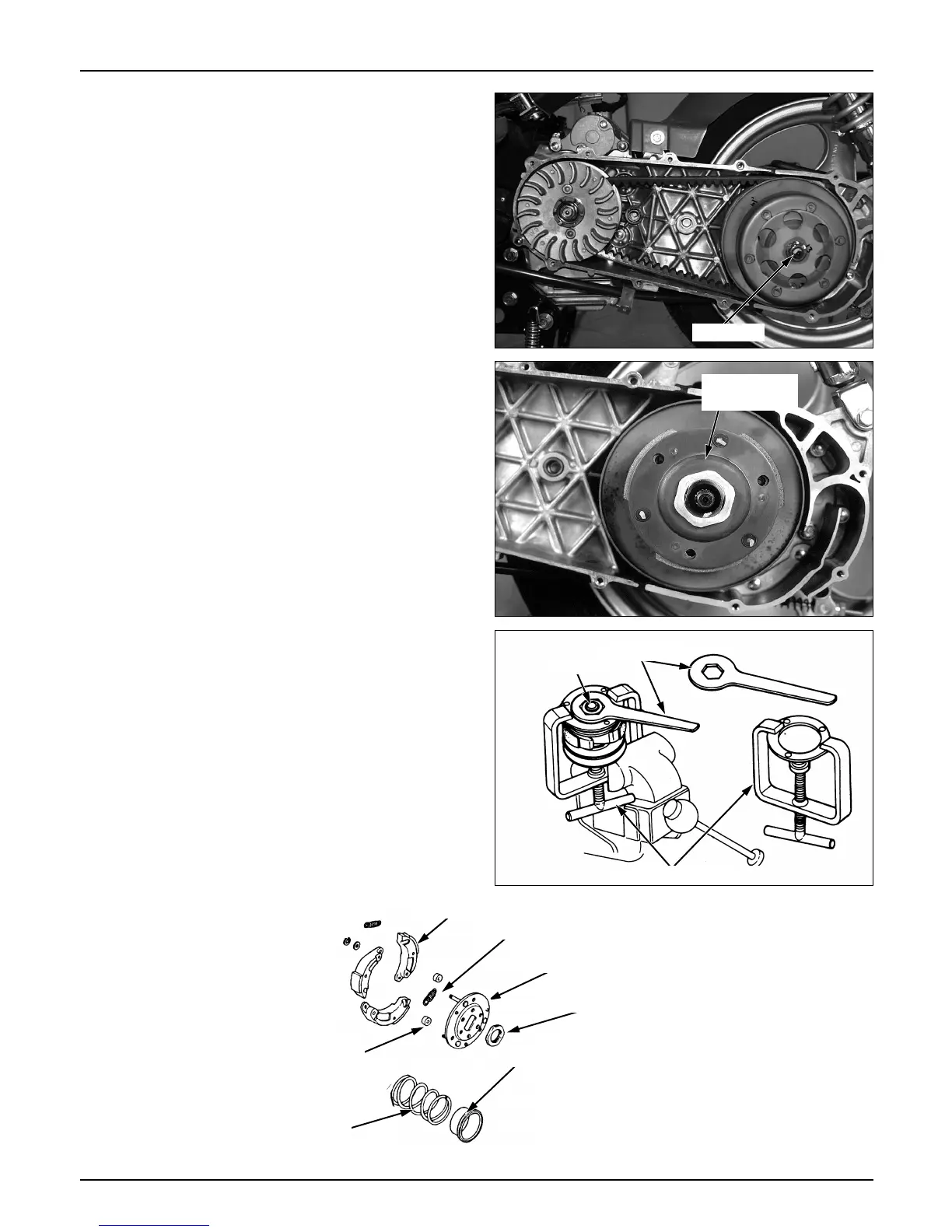

L. Crank Case Cover/Kick Starter/Continuously Variable Transmission
Clutch Disassembly
● Remove the L. crank case cover. ( 7-2)
● Disassemble the movable drive face. ( 7-9)
● Disassemble the drive belt. ( 7-7)
● Use a universal holder to hold the clutch outer,
and remove the clutch outer after disassembling
the 12mm flange nut.
● Remove the movable driven face and the clutch
from the drive shaft.
Driven Face Disassembly
● Disassemble the 30mm special nut.
7-12
Movable drive
face.clutch
Drive
Drive
Drive
Clutch spring
Drive plate
Face nut
Rubber
Spring collar
Clutch spring
Clutch shoe
Setting nut
