L. Crank Case Cover/Kick Starter/Continuously Variable Transmission
7-13

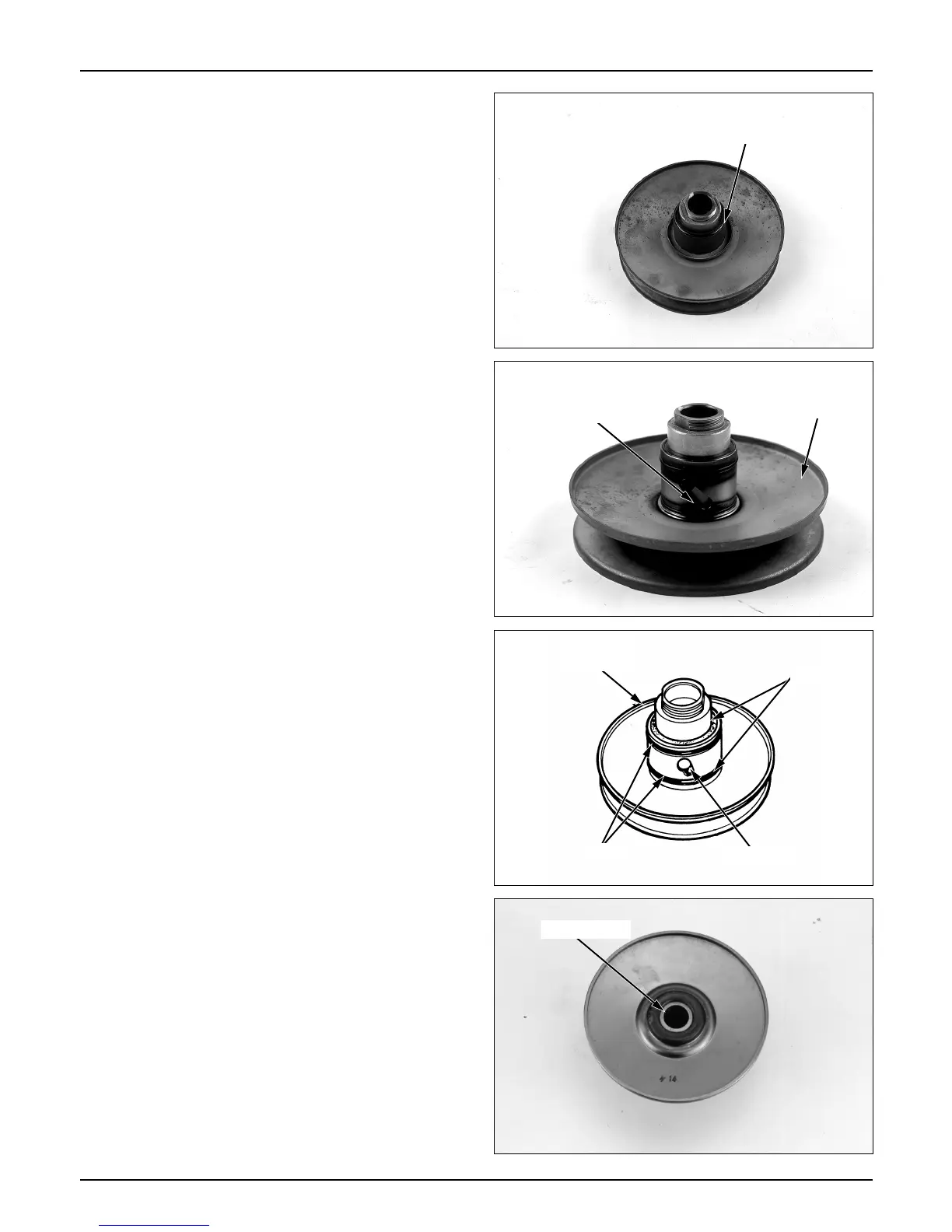

● Remove the seal collar.
● Remove the guide roller and its pin.
● Remove the movable driven face.
● Remove the O-ring from the movable drive face.
● Remove the oil seal from the movable driven
face.
● Remove the inner bearing.
Seal collar
Guide roller
Inner bearing
Movable
driven face
Oil seal
Guide pin
O-ring
Movable
driven face
To Next Page
