L. Crank Case Cover/Kick Starter/Continuously Variable Transmission
Kick Starter
Removal
● Remove the L. crank case cover.( 7-2)
● Remove the kick starter spring from the kick
return stopper plate on the L. crank case cover.
● Remove the kick starter spindle.
● Remove the kick driven gear.
● Remove the kick starter idle shaft.
7-4

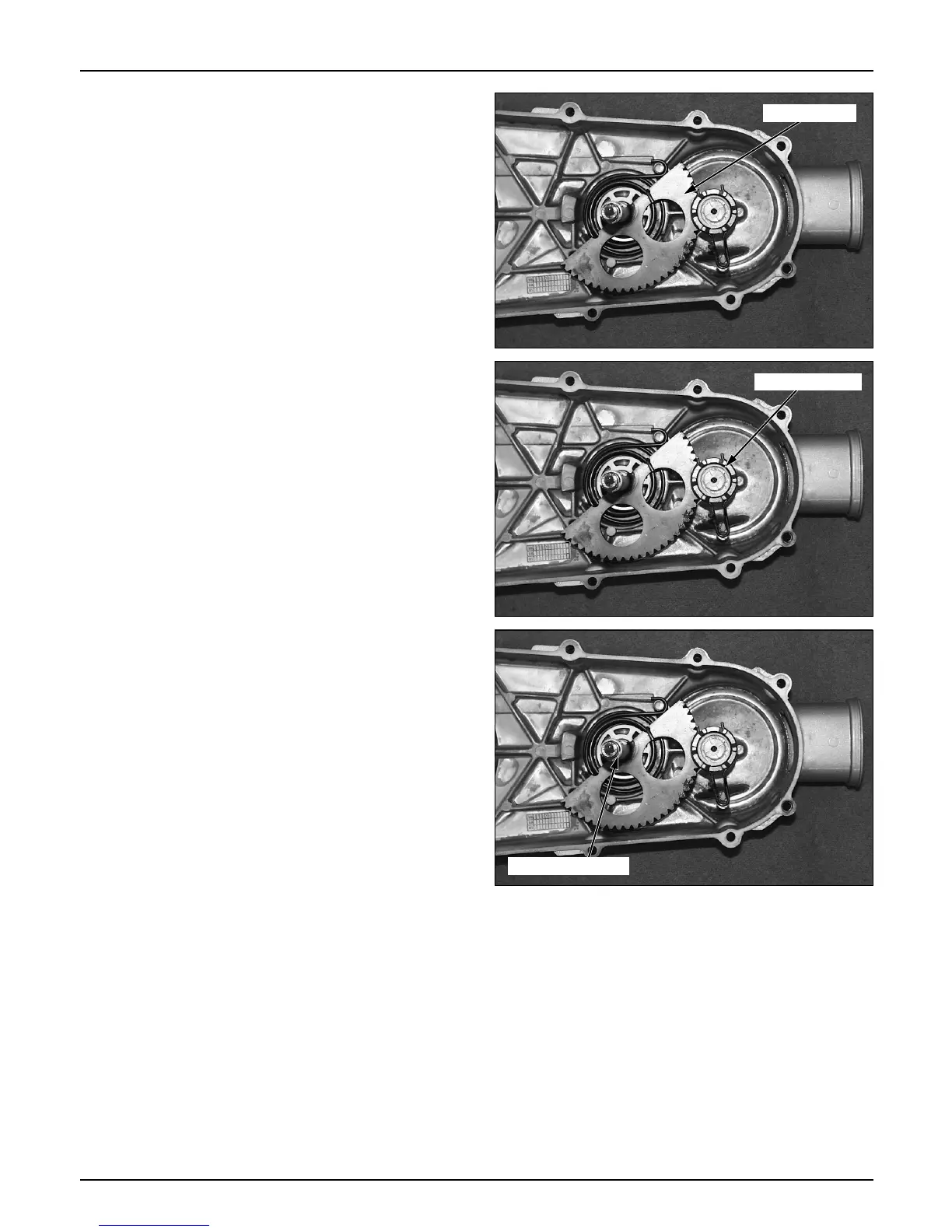

Kick driven gear
Stopper plate
Kick start idle shaft
