Transmission/Crankshaft/Crank Case

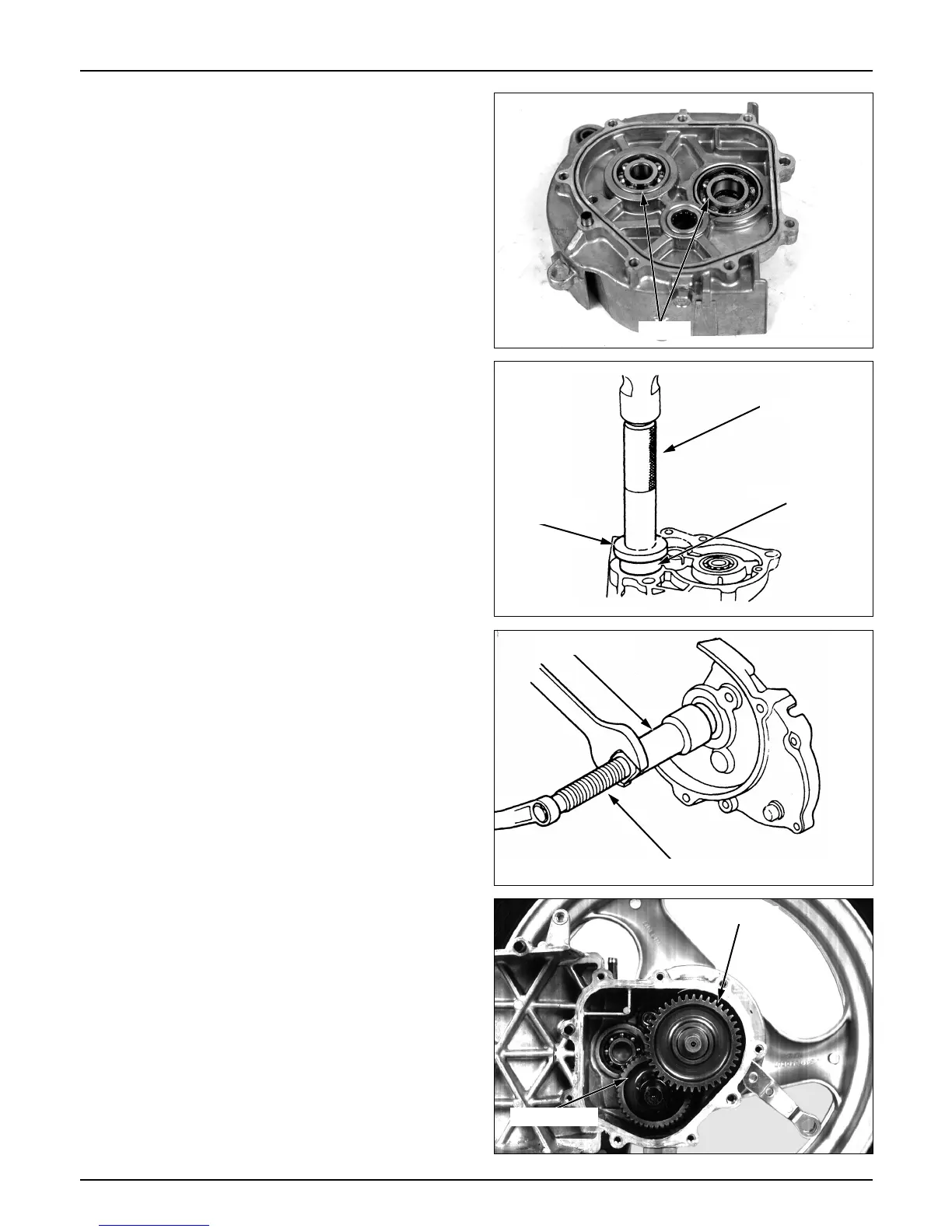

Bearing inspection
● Manually turn the bearing inner race installed
inside the transmission cover, and check if the race
is turning smoothly.
● Verify the outer race is accurately installed in the
case.
● Replace the bearing, if necessary.
● Use special tools to push in the bearing into the
case.
Tools: Driver handle A
Outer Driver
Driver pilot
● Check the L. crank case oil seal for wear or
damage.
11-5
Installation
● Install the drive shaft on the transmission cover.
● Install a new drive shaft oil seal.
Tools: Crank assembly shaft
Crank assembly collar
● install the final shaft and counter gear on the L.
crank case.
Final shaft
Countershaft
Bearing
Outer handle
Driver pilot
Outer driver
Assembly collar
Assembly shaft
