Cylinder Head/Valve

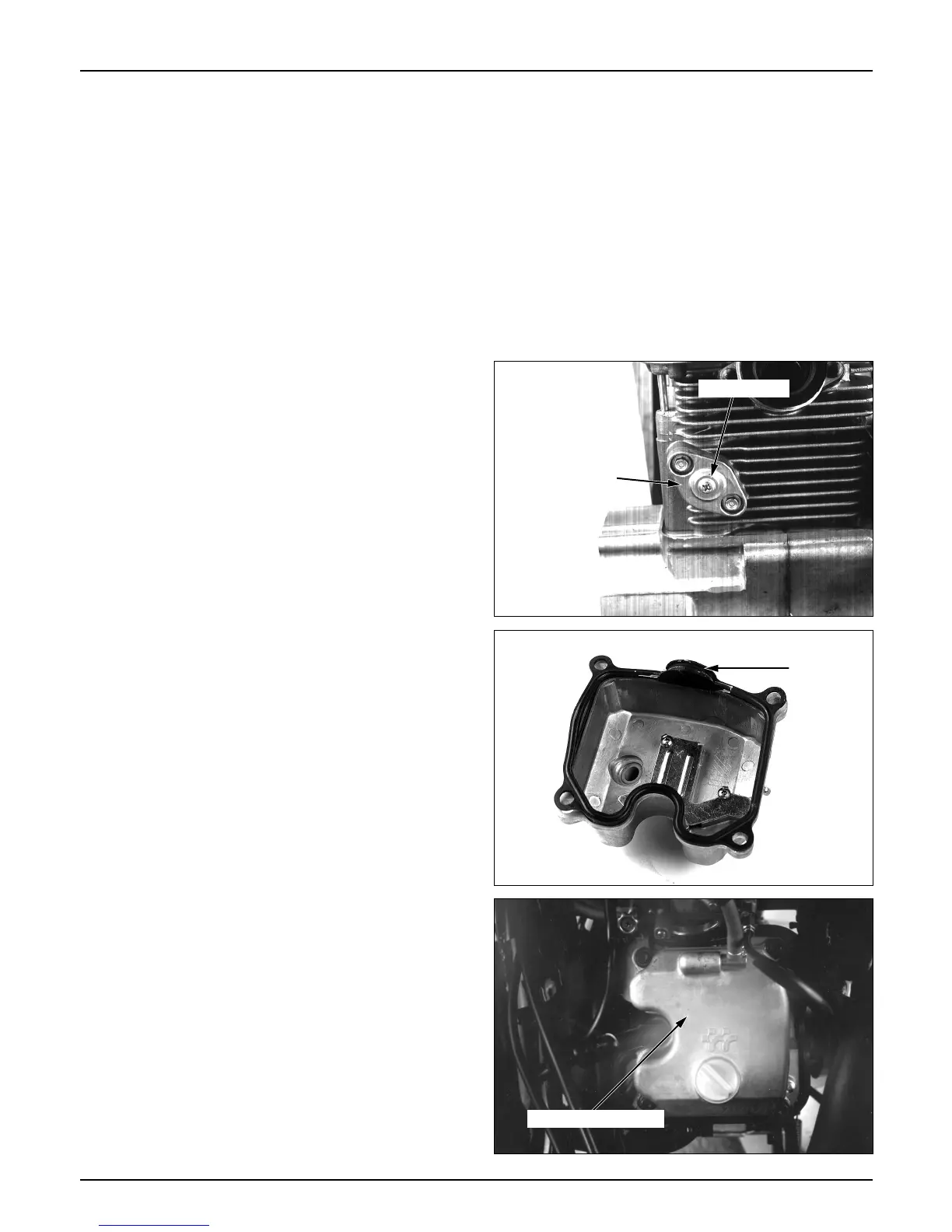

● Fix the tensioner shaft with a hard clip.
● assemble a new gasket to the tensioner lifter, and
install the tensioner lifter on the cylinder.
● Tighten the tensioner mounting bolts.
Torque values: 1.2kg-m (12N.m, 9ft-lb)
● Remove the tensioner shaft clip from the
tensioner lifter. Assemble sealing washers and
screws to the tensioner lifter.
Torque values: 0.4kg-m(4N.m, 3ft-lb)
● Fill clean engine oil into the operating parts of the
cylinder head.
● Adjust the valve clearance. (⇨ 3-5)
● Remove oil from the cylinder head cover
grooves, and accurately assemble the gasket to
the cover.
● Assemble the cylinder head cover.
● Tighten the cylinder head cover bolt.
Torque values: 1.3kg-m (13N.m, 9ft-lb)
- Install the R/L shroud. (⇨ 8-2)
- Install the luggage box. (⇨ 4-5)
- Install the center cover. (⇨ 4-4)
9-15
Cylinder head cover
Sealing screw
Cam chain
tensioner
Gasket
