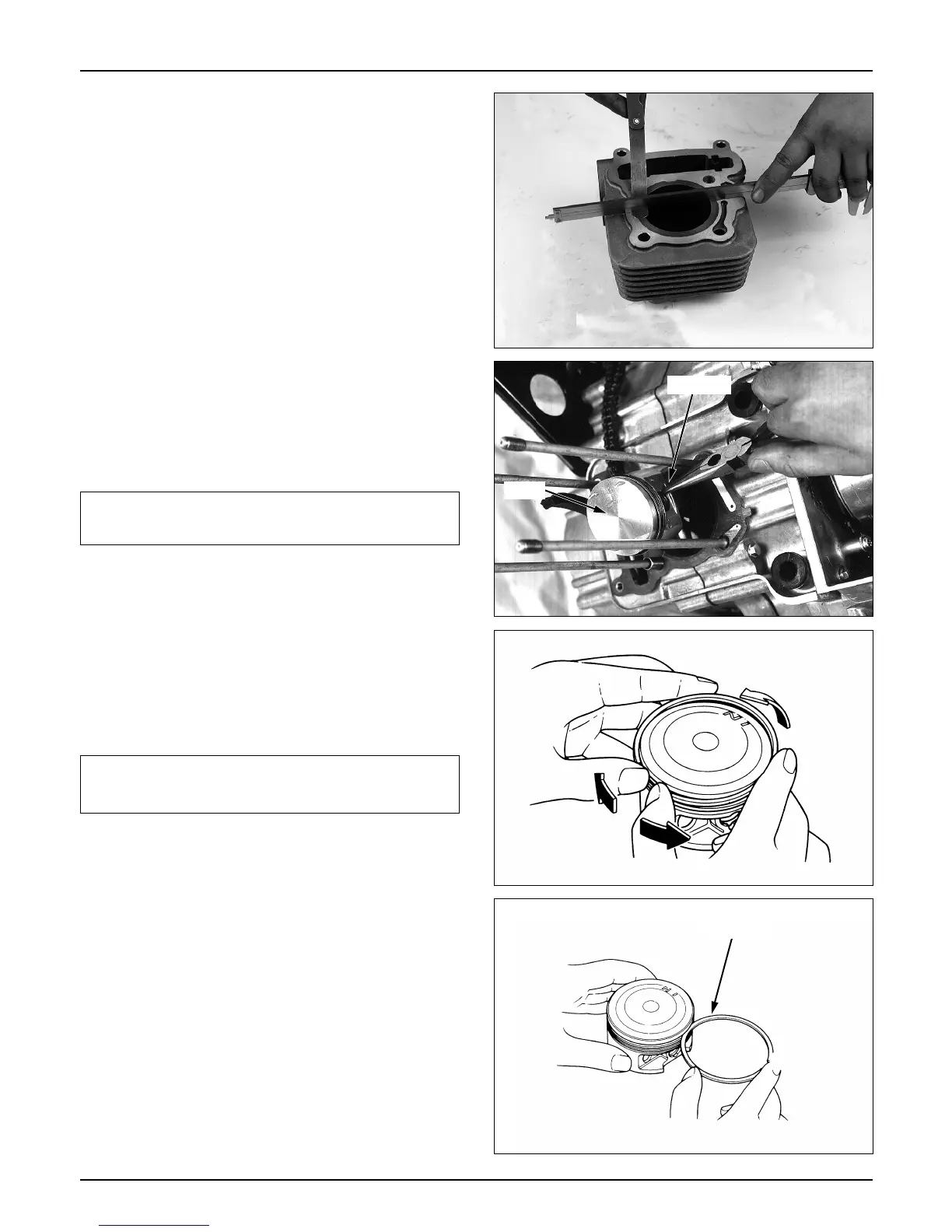

Cylinder/Piston
● Check the cylinder distortion.
Service limit: 0.02mm (0.0008in)
Piston
Disassembly
● Remove the piston pin clip
NOTE
● Remove the piston pin, and separate piston.
● Check the piston ring.
● Remove the piston ring.
NOTE
● Check the clearance between the piston ring and
groove.
Service limit: Top 0.110mm(0.0043in)
Second 0.080mm (0.003in)
Oil 0.280mm(0.0110in)
● Check the piston for wear or damage.
10-3
󳢯Take precautions not to drop the piston pin clip
into the crank case.
󳢯Be careful not to damage the piston with the
piston ring while removing the ring.
Piston pin
Piston
Piston ring
