Front Wheel/Front Fork/Steering

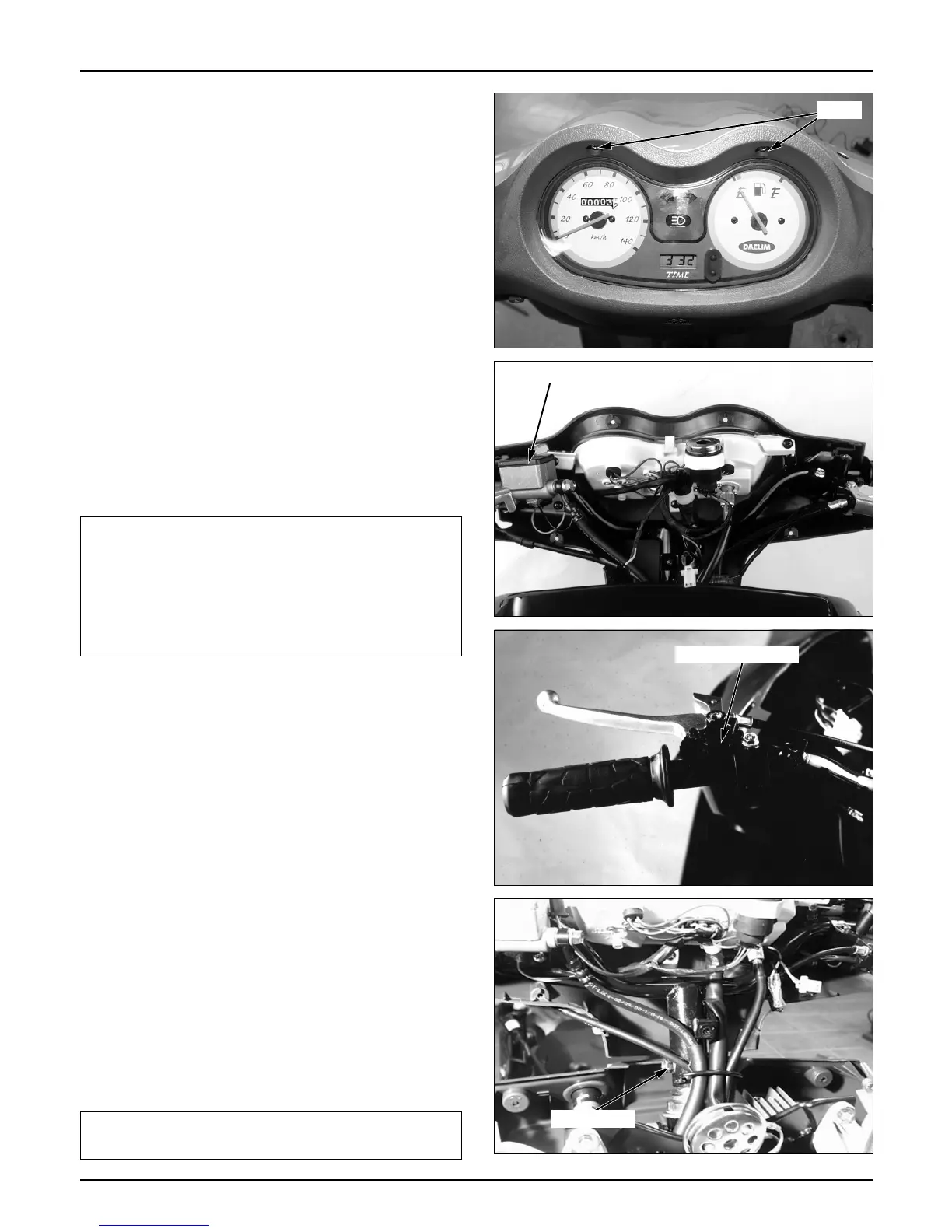

Handle Bar
Removal
● Remove the following parts.
- Headlight ( 18-2)
- Main switch connector ( 18-4)
- Front cover ( 4-3)
- Front handle cover
- Headlight, and winker wiring
- Disassemble the speedometer cable from the
speedometer.
- R/L handle bar switch wire and throttle grip
- Rear handle cover
● Loosen the master cylinder holder bolts.
● Remove the master cylinder.
CAUTION
Support master cylinder properly to prevent
brake fluid from leaking.
If the master cylinder is dropped upside down,
air may enter the hydraulic system. Fix it to the
vehicle while maintaining the correct assembled
location.
● Unscrew the rear brake lever holder setting bolts.
● Remove the rear brake lever.
● Remove the handle setting bolts and U nuts.
● Remove the handle bar.
Installation
● Install the handle bar.
● Assemble the handle setting bolt and U nuts.
Torque values: 5.0kg-m(50N.m, 36ft-lb)
NOTE
When installing the handle setting collar, match it
with the groove accurately.
12-3
Screw
Master cylinder
Setting bolt
Rear brake holder
To Next Page
