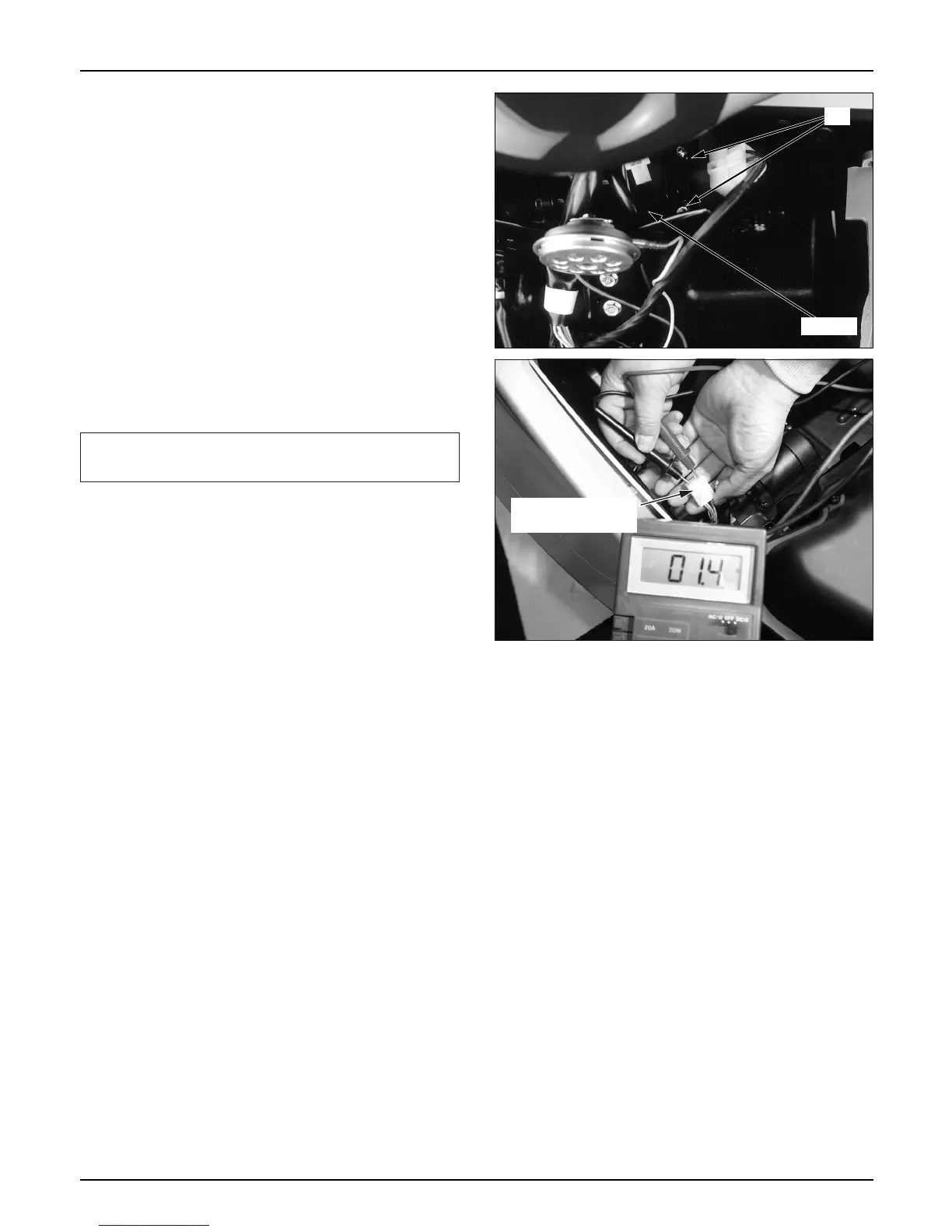

Charging System/Battery
Replacement
● Remove the front cover. (⇨ 4-3)
● Disconnect the regulator / rectifier wire coupler.
Remove the 2 regulator / rectifier setting bolts
attached to the headlight stay.
● Install in the reverse order of removal.
A.C Generator Inspection
NOTE
● Disconnect the 4P coupler of the generator cord.
● Measure the resistance between the yellow leads.
Resistance value: 1.0-1.5
ΩΩ
(20
℃℃
/68
℉℉
)
● Measure the resistance between the yellow leads
and the engine earth.
● If the resistance value is great, or if power is
connected between terminals and the earth
terminals, replace the stator with a new one.
15-6
This test is carried out with the stator assembled
to the engine.
Nut
Rectifier
