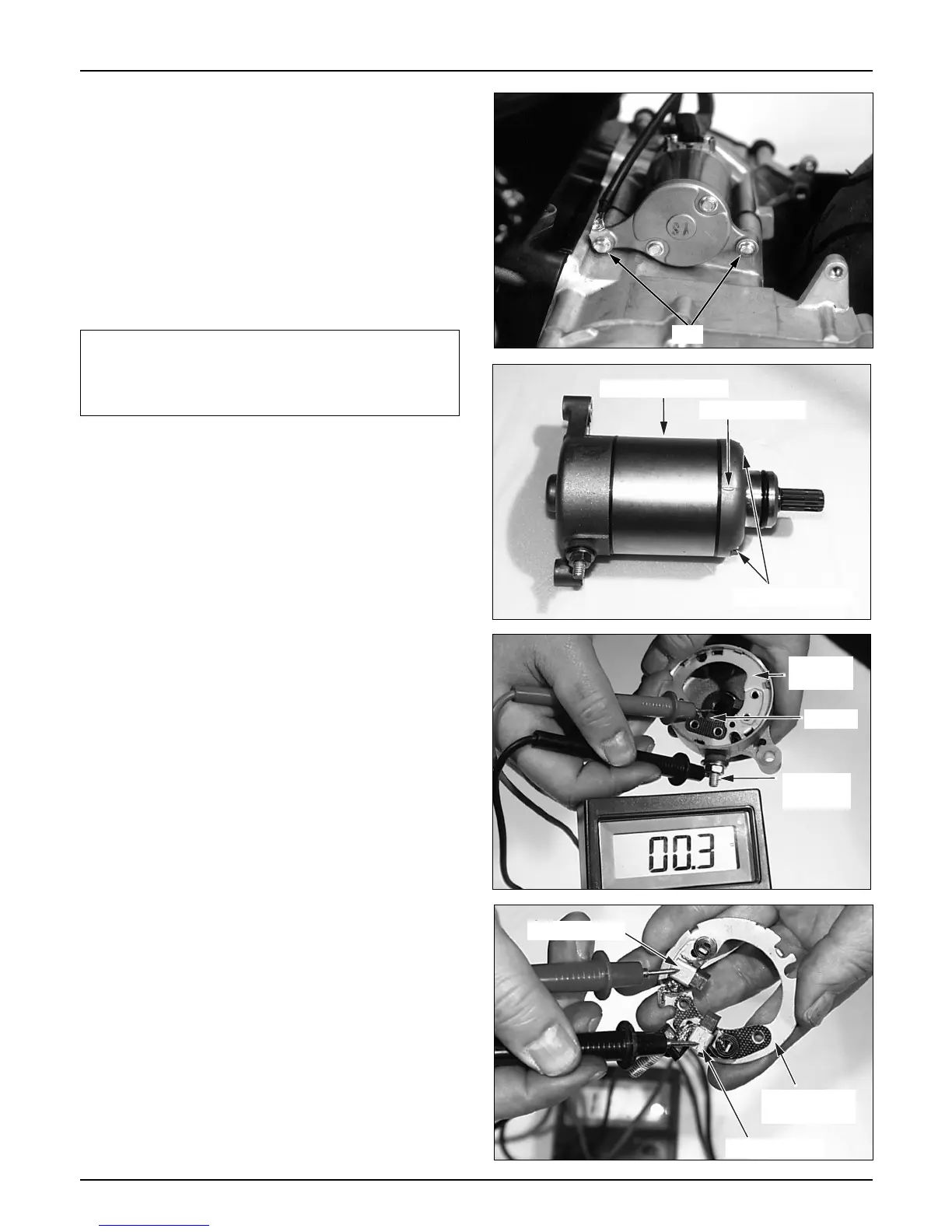

Starter System
17-3
Starter Motor
Removal
- Remove the luggage box. ( 4-5)
- Remove the body cover ( 4-6)
● Remove the starter motor cable from the motor.
● Unfasten the 2 starter motor mounting bolts, and
remove the starter motor.
NOTE
·Always turn the ignition switch OFF before servicing
the starter motor. The motor could suddenly start,
causing serious injury.
·Accurately tighten the battery earth cable.
Disassembly
●Remove the starter motor cable.
●Before disassembling the starter motor mark the
position of the case and cover so the starter can be
assembled correctly later.
●Loosen the starter motor case bolts and remove the
motor cover.
Inspection
●Check for continuity of the starter motor case.
-Between cord terminal“” and bracket“”: normal if
no continuity.
-Between cord terminal and brush : normal if there is
continuity.
●If abnormal, replace with a new one.
●Loosen the brush terminal setting nut, remove the brush
holder set.
●Check for continuity between “” and “” terminals
of the brush holder.
●If there is continuity, replace with a new one.
To Next Page
