Lower bolt

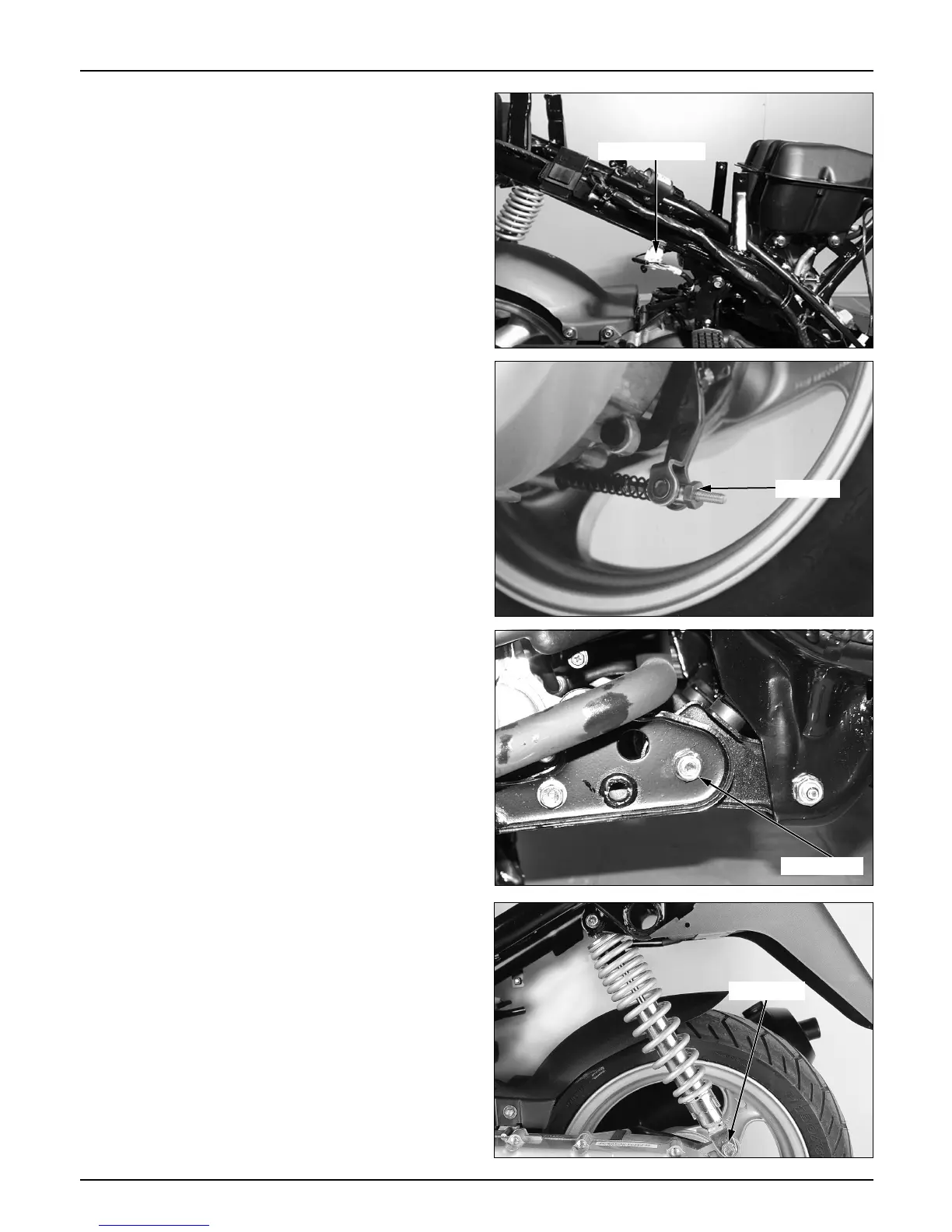

Engine Removal
Engine Removal
● Drain the engine oil.
● Remove the following parts.
- Luggage box ( 4-5)
- Frame body cover ( 4-6)
- Air cleaner ( 5-4)
● Remove A.C. generator, and starter motor cable.
● Remove the high-tension cord.
● Remove the carburetor. ( 5-6)
● Remove the rear brake rod.
● Remove the fuel tube.
● Remove the L.floor side cover.
● remove the radiator hose.
● Loosen the 3 rear mud-guard setting bolts.
● Loosen the engine hanger mounting bolt.
● Loosen the rear cushion lower bolt.
6-2
Brake rod
A.C.G connector
Hanger bolt
