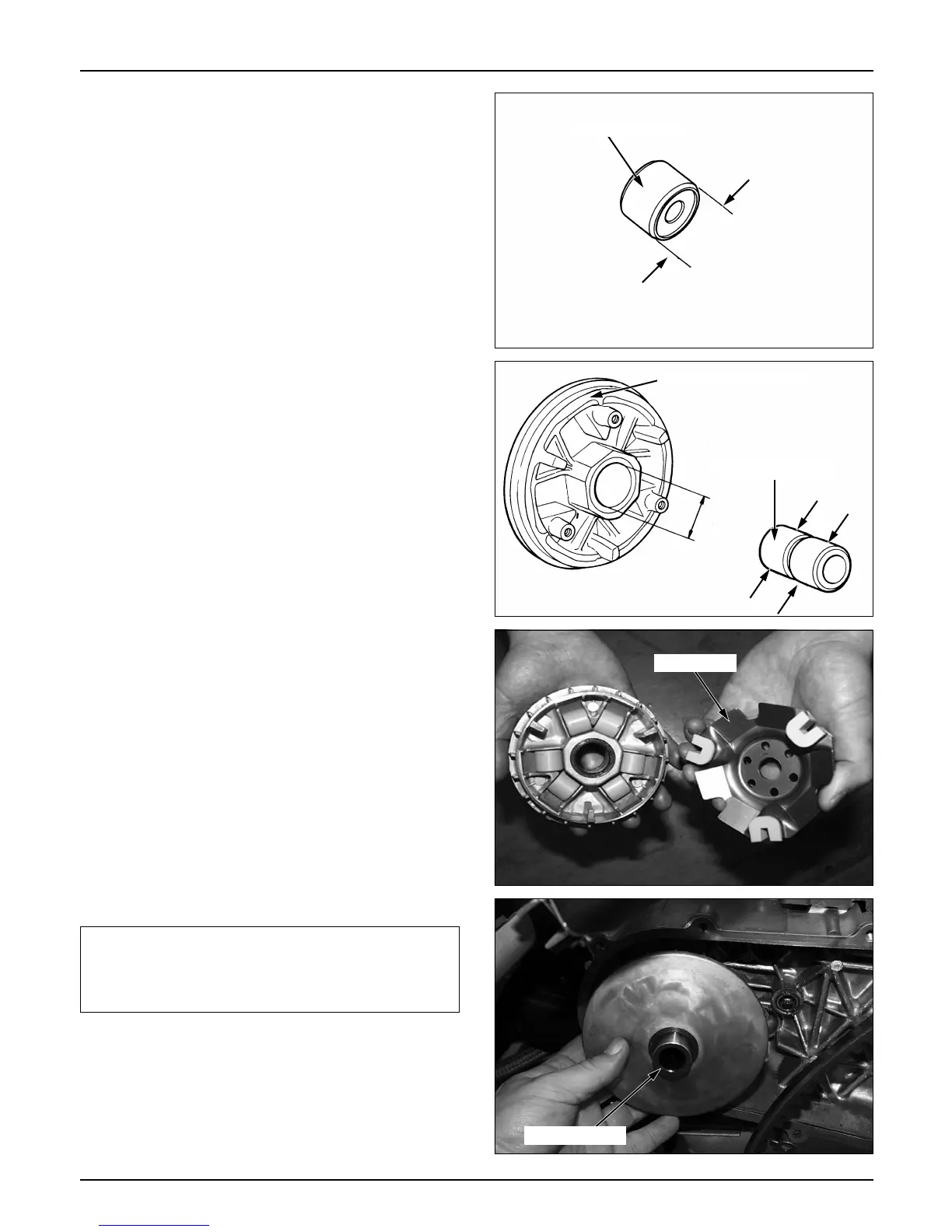

L. Crank Case Cover/Kick Starter/Continuously Variable Transmission
● Check the movable drive face boss for wear or
damage.
● Check the outer diameter of the movable drive
face boss.
Service limit: 23.96mm (0.943in)
● Check the inner diameter of the movable drive
face.
Service limit: 24. 043mm (0.946in)
Movable Drive Face Inspection
● Check the weight roller for wear or damage.
● Check the weight roller outer diameter.
Service limit: 19.5mm (0.767in)
Movable Drive Face Assembly
● Supply grease on the inner side of the movable
drive face boss part.
● Assemble oil seal in the both sides of the
movable drive face boss part.
● Assemble the weight roller.
● Assemble the ramp plate.
● Connect the movable drive face boss together.
NOTE
7-10
Do not apply the grease to the pully surface of
the movable drive face.
If grease is applied, remove the grease.
Ramp plate
Weight roller
Movable drive face
Drive face boss
Drive face boss
To Next Page
