DAELIM NS125III - A.C. Generator

Generator/Starter Clutch
8-2
Shroud
Removal
● Remove the following parts.
- Luggage box (⇨ 4-5)
- Body cover (⇨ 4-6)
- Center cover (⇨ 4-4)

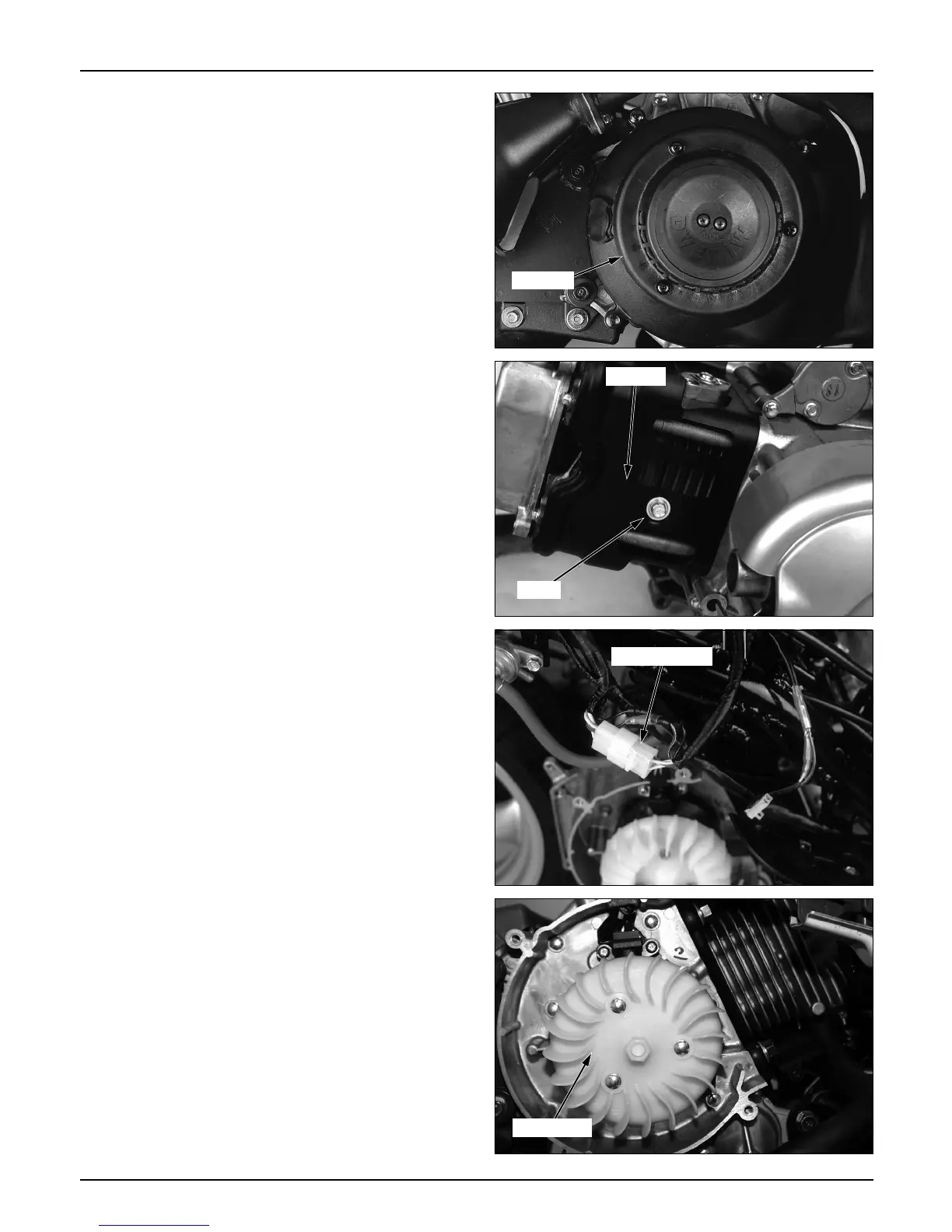

● Loosen the 4 R. shroud setting bolts.
● Loosen the 3 shroud R/L setting bolts.
● Loosen the shroud L setting screw.
● Remove the shroud R/L.
● Install in the reverse order of removal.
A.C. Generator
Removal
● Remove the following parts.
- Luggage box (⇨ 4-5)
- Body cover (⇨ 4-6)
- Center cover (⇨ 4-4)
- R. shroud comp (⇨ 7-2)
● Remove the A.C. generator wiring connection.
● Remove the 3 cooling fan bolts.
Screw
L. shroud
Generator wire
Cooling fan
R. shroud
