DAELIM NS125III

“T” mark
Cylinder Head/Valve

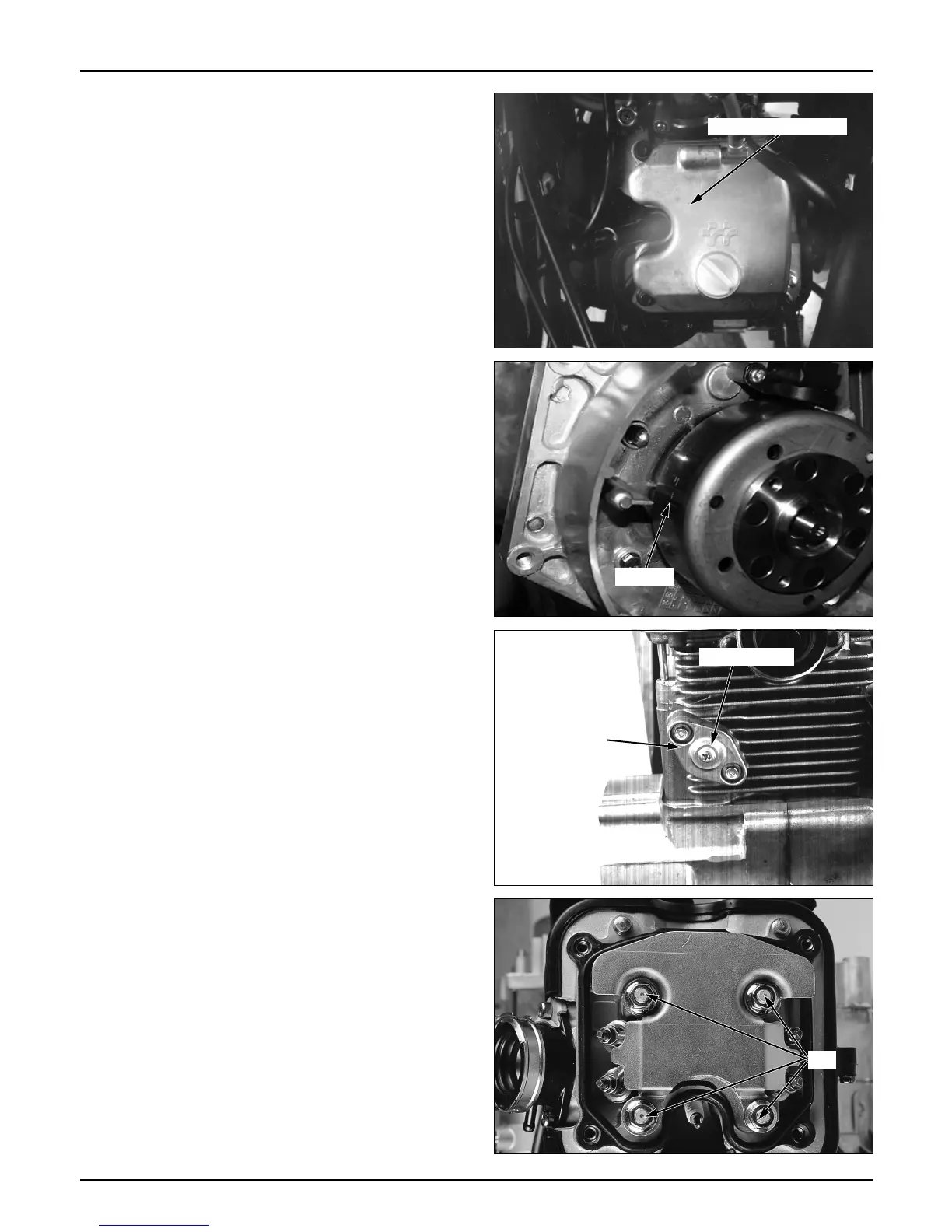

Camshaft Removal
● Remove the luggage box. (⇨ 4-5)
● Remove the center cover. (⇨ 4-4)
● Remove the shroud R/L.(⇨ 8-2)
● Remove the cylinder head cover bolt and cover.
● Remove the fan cover from the R shroud. Turn
the crankshaft to the left, and align the “T” mark
of the flywheel with the index mark of the R crank
case cover.
● Verify that the piston is located at the top dead
center. (Make all camshaft lobes face downward.)
● If all camshaft lobes face upward, rotate the
crankshaft to the left for 1 turn (360
○
), and align th
“T” mark with the index mark once again.
● Loosen the four 8mm nuts of the camshaft holder.
● Remove the camshaft holder from the cylinder
head.
● Loosen the four 8mm nuts of the camshaft holder.
● Remove the camshaft holder from the cylinder
head.
9-3
Cylinder head cover
Sealing screw
Cam chain
tensioner
Nut
