Operation Section
-51-
Operator’s Station and Monitoring Systems
Instrument Panel
Your lift truck may not have the same indicator or warning lights as shown in the illustrations.
Due to the various options available, typical instrument panels are shown.
However, the symbols on the indicators and lights on your panel identify what those particular items are.
Also, the symbol for each of the items is identified and an explanation of their function and location is described on the
following pages.

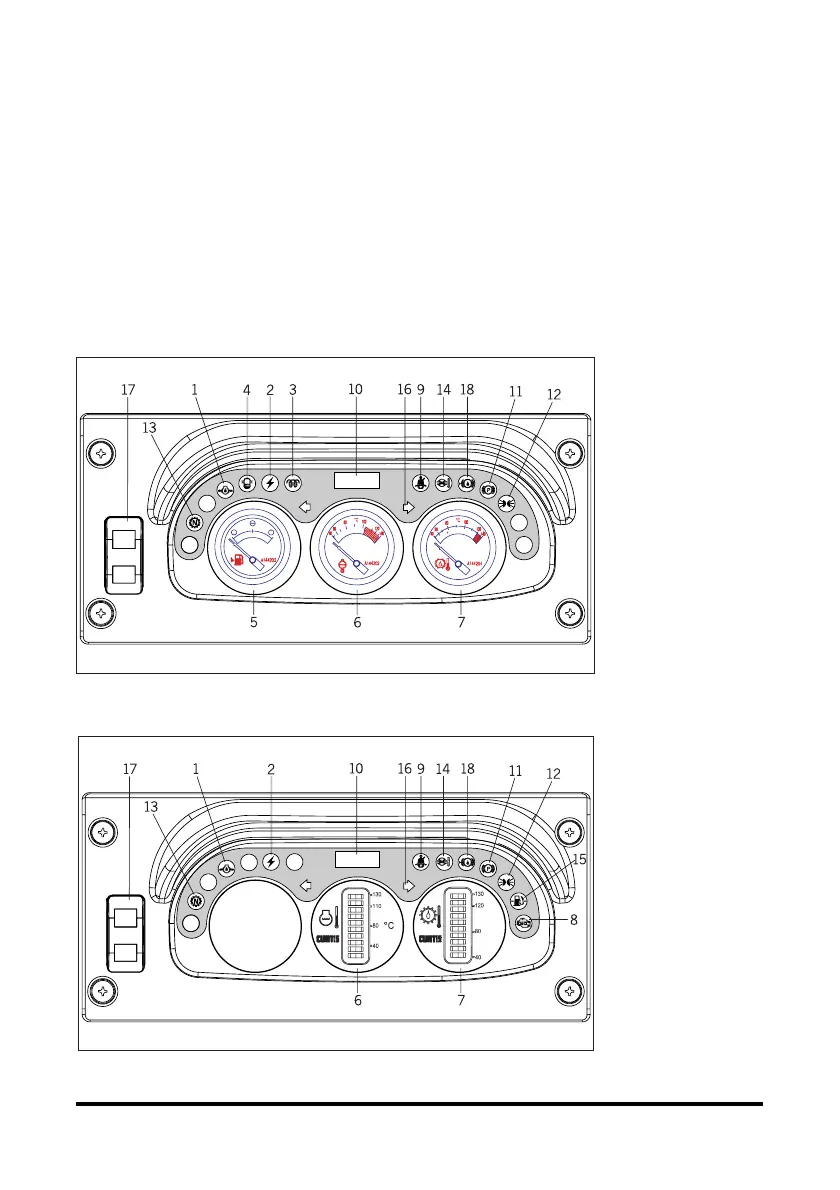

Diesel (24V)
LPG (12V) – LED Type
