User’s Manual
31
Snap
Direction
Obverse: Only captures vehicles that enter.
Reverse: Only captures vehicles that leave.
: Captures vehicles that enter or leave.
Algorithm
Type
Select Middle Distance or Long Distance as needed.
Algorithm type is only available for long range models.
Max Pass
Time
Enter max vehicle passing time (5 s by default).
For example, set max vehicle passing time as 5 s, when using mix in and mix
out with loop, after the logical loop is triggered, it will trigger capture loop
camera not to take snapshot within 5 s.
Step 3 Click Confirm.
4.5.1.1.2 RS485/IO
You can configure 485 interface associated configuration information and loop IO snapshot
configuration.
Select Setup > ITC > Detection > RS485/IO, the RS485/IO interface is displayed.
Start RS-485 Port
Step 1 Select Start RS485 Port, but not Start Coil IO.

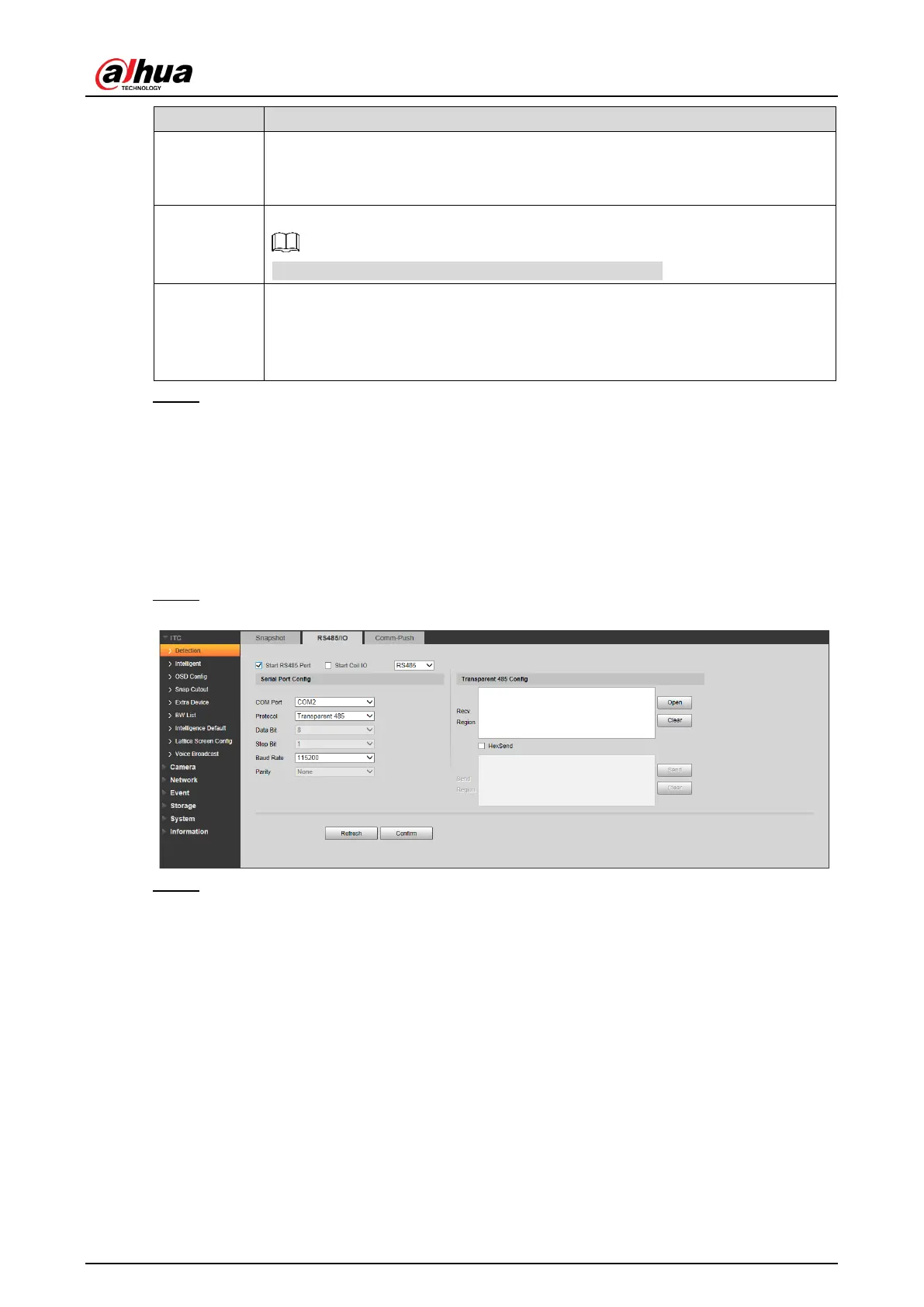

Figure 4-30 RS485/IO (start RS485 port)
Step 2 Select Protocol, and set protocol type according to the number of com port.
Select CarDetect from Protocol.
1) Set the baud rate of the protocol.
2) Select scheme.
◇ Single_in1-snap_nospeed: Lay single coil and it will take snapshot when the
vehicle enters coil.
◇ Double_in1-snap_speed: Lay double coil and it will take snapshot when the
vehicle enters the first coil.
◇ Double_in2-snap_speed: Lay double coil and it will take snapshot when the
vehicle enters the second coil.
3) Click Setup corresponding to Coils Map and it pops up the Coils Map dialog box.
Select the corresponding relationship between logical coil and physical coil and
click Yes.
