The function needs to be configured in the mix in and mix out mode. See
Standard Construction Scheme.
When the scheme is single_in1-snap_nospeed, then you only need to
select the corresponding physical coil of logical coil.
Select Transparent 485 from Protocol.
1) Select the baud rate of the protocol.
2) If it needs test, then it needs to select the HexSend check box. Click Open on the
right of Recv Region and test the reception status of transparent 485 according to
actual situation.
Select COM-Push or Wiegand from Protocol: Select the baud rate of the
protocol.
Step 3 Click Confirm.
Start Coil IO
Step 1 Select Start Coil IO but not select Start RS485 Port.

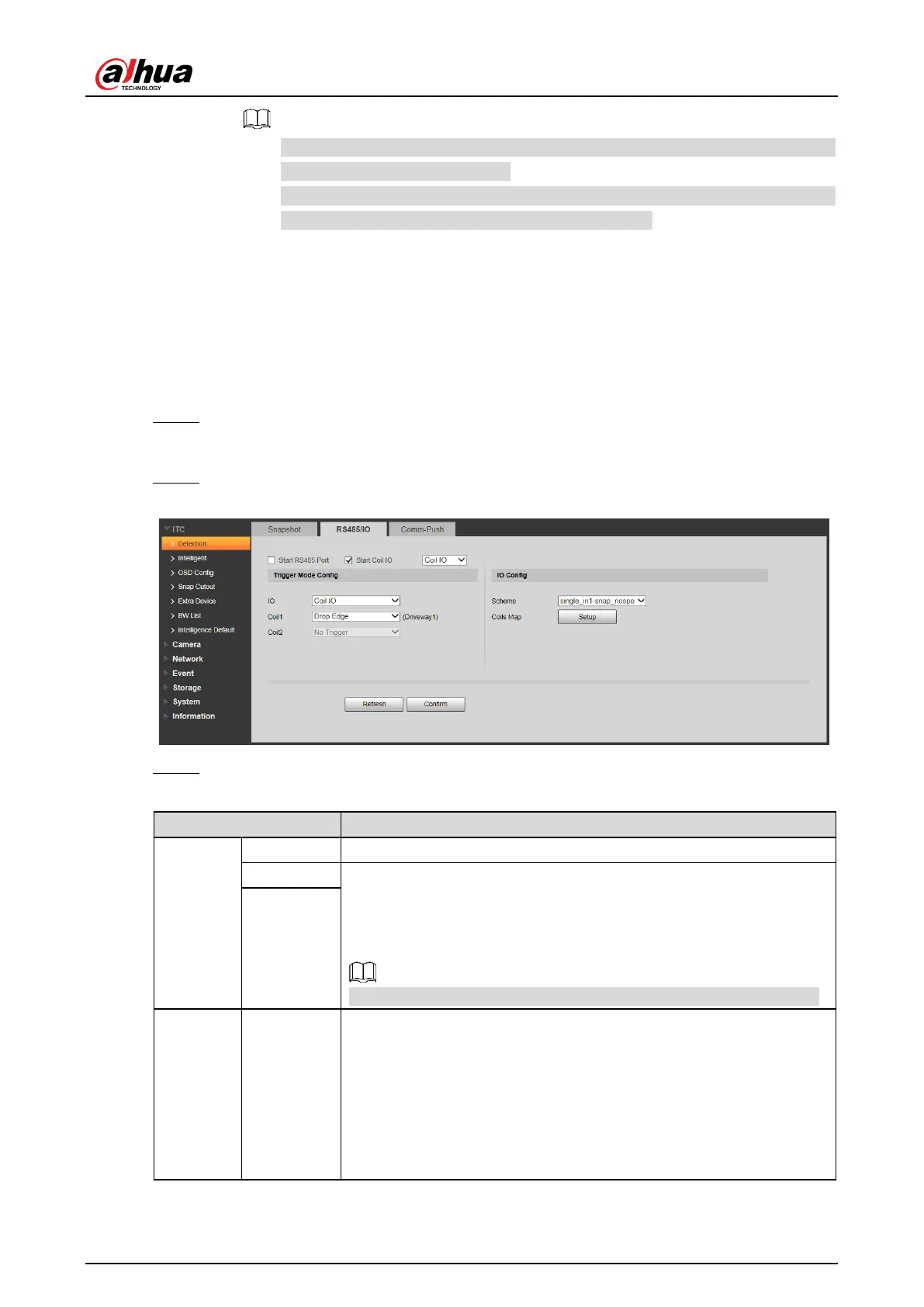

Figure 4-31 RS485/IO (Start Coil IO)
Step 2 Configure the parameters.
Table 4-13 Coil IO parameters description
Trigger
Mode
Config
IO
Only Coil IO can be selected.
Set the coil trigger mode.
No trigger: No capture is triggered.
Rise Edge: Capture is triggered when the vehicle enters coil.
Drop Edge: Capture is triggered when the vehicle exits coil.
When the scheme is single_in1-snap, then coil 2 can not be set.
Coil 2
IO Config Scheme
Set IO snapshot scheme.
Single_in1-snap_nospeed: Lay single coil and it will take
snapshot when the vehicle enters coil.
Double_in1-snap_speed: Lay double coil and it will take
snapshot when the vehicle enters the first coil.
Double_in2-snap_speed: Lay double coil and it will take
snapshot when the vehicle enters the second coil.
