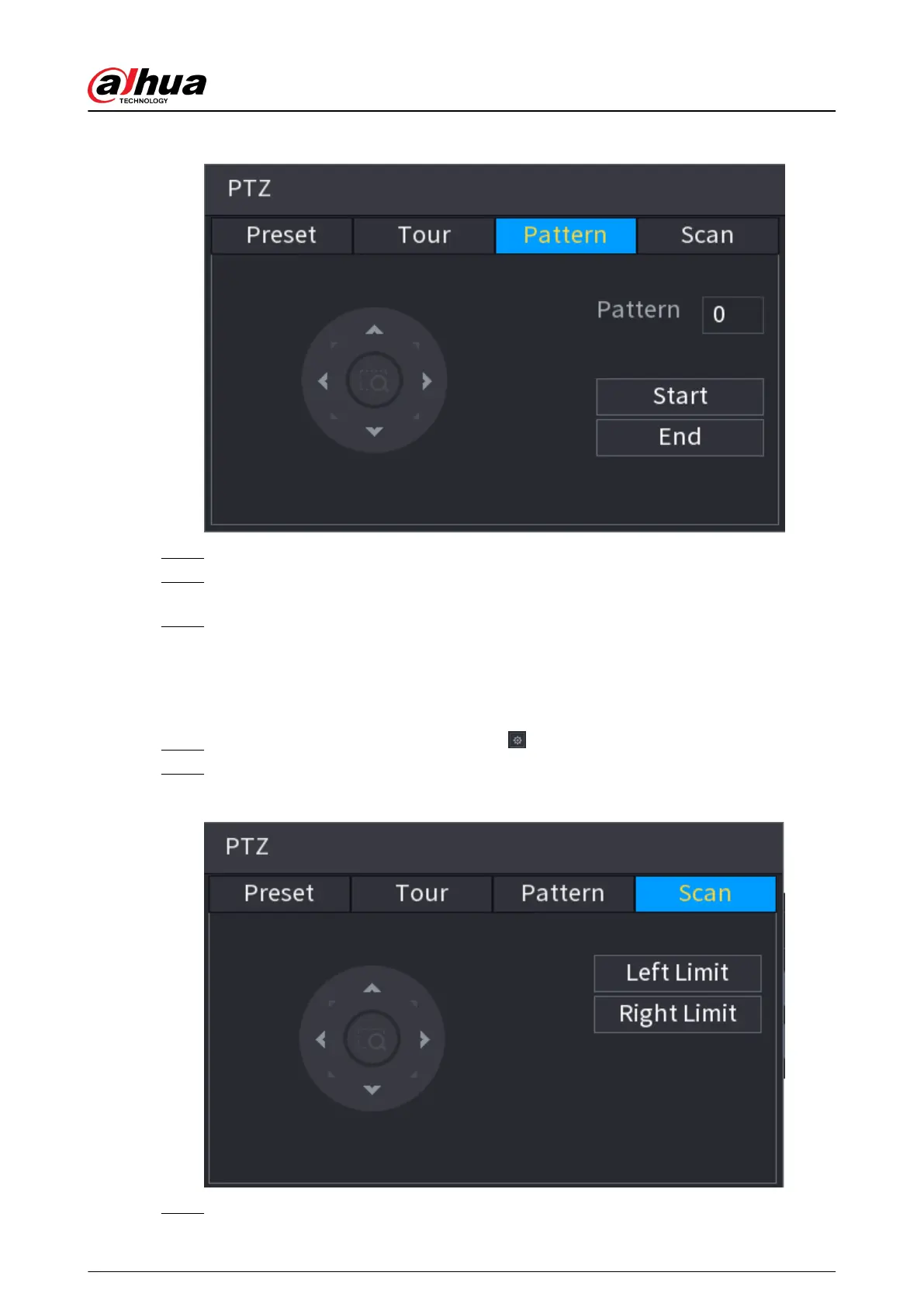

Figure 5-41 Pattern
Step 3 In the Pattern box, enter the value for pattern.
Step 4 Click Start to perform the directions operations. You can also go to the PTZ Control Panel
to perform the operations of adjusting zoom, focus, iris, and directions.
Step 5 On the PTZ window, click End to complete the settings.
5.6.7.3.4 Conguring AutoScan
Procedure
Step 1 On the expanded PTZ control panel, click .
Step 2 Click the Scan tab.
Figure 5-42 Scan
Step 3 Click the direction arrows to position the left and right limits.
User's Manual
154
