Dahua PFM906 User Manual

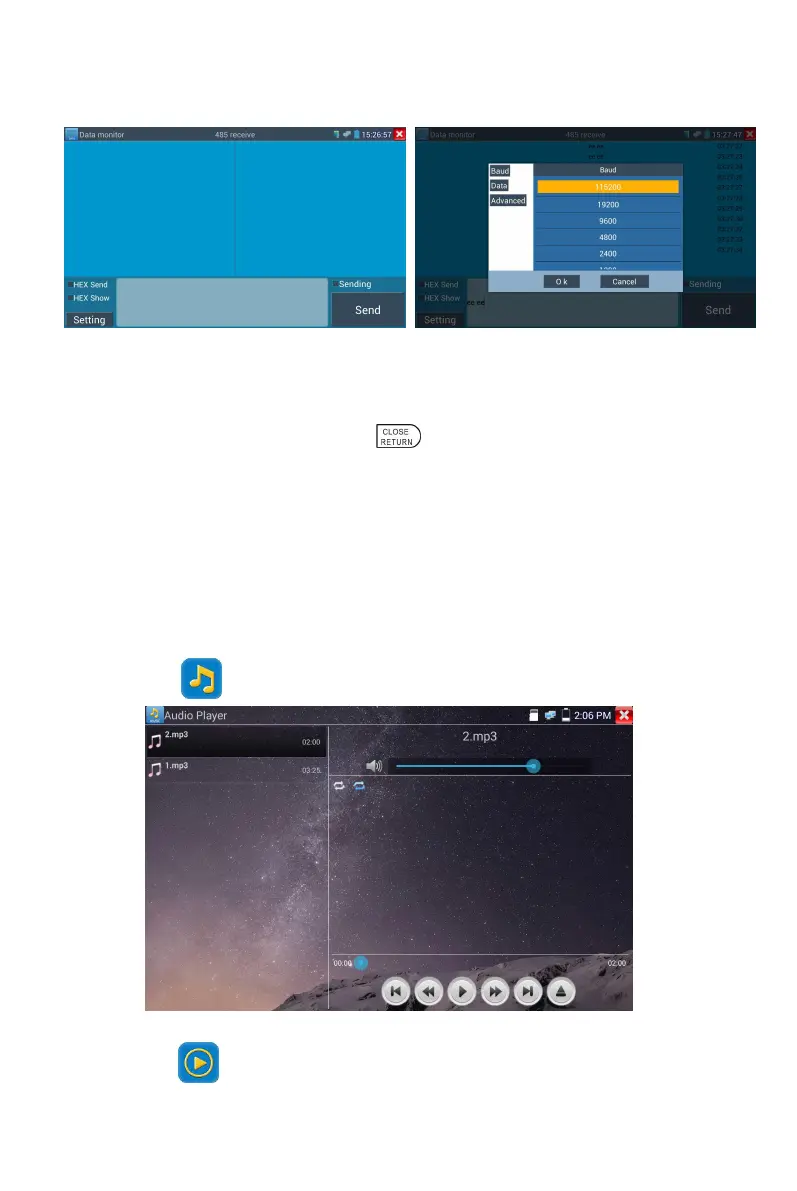

Page.101.
Click “Setting” to choose the baud rate of RS485; it must be the same as the DVR or the Control.
keyboard .The DVR or Control keyboard send the code to the tester, if it can be read, the protocol will
shown on the upper right, like Pelco D, if not, like P:---
While the tester receives the code, press the key to empty.
Though the RS485 port, display the PTZ control code of the multifunctional keyboard or the DVR.
Controller can check the status of the RS485 transmission through the code on the display. (The RS485
communication rate must be the same.)
Application: Check the RS485 communication states of the video optical transmitter whether normal.
Engineer can analyze the protocol and check the data through the displayed code.
3.3.31
Audio player
Click the icon to enter . The audio player only supports MP3 format Audio files.
3.3.32
Media Player
Click the icon to enter
