Test LAN cable or telephone cable.
Connect LAN cable or telephone cable with the Integrated Mount Tester and cable tester. And then the
connecting status, cable type and the sequence of wires as well as the serial number of the cable tester
kit will be displayed.
If need several different number other types cable testers, should pay the additional cost.
Cable test

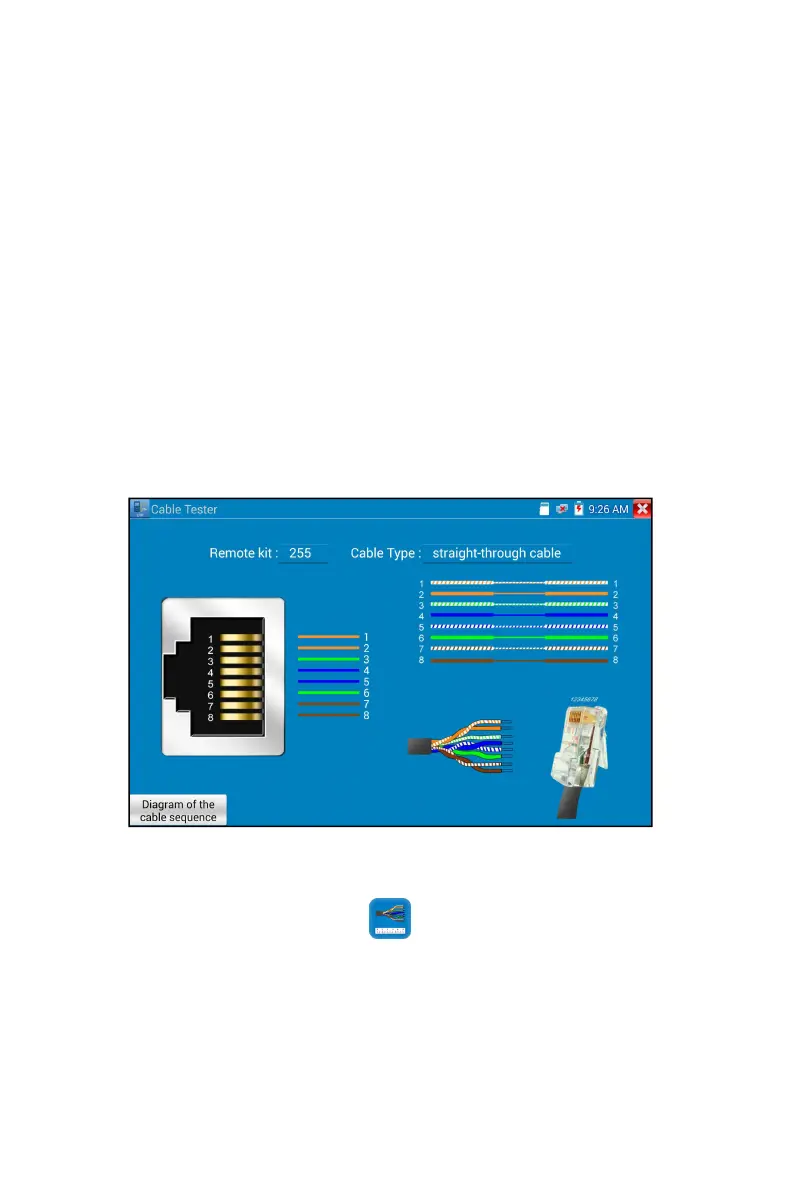

Tap "cable test sketch map" ,pop up Straight-through cable and crossover cable skectch, It is for line
sequence reference ,when the crystal on the first pressure in the twisted-pair.
3.3.21
RJ45 cable TDR test
Connect cable to tester’s LAN port, click icon to enter RJ45 cable TDR test app.
