3.2 Instrument connection
3.2.1 IP camera connection

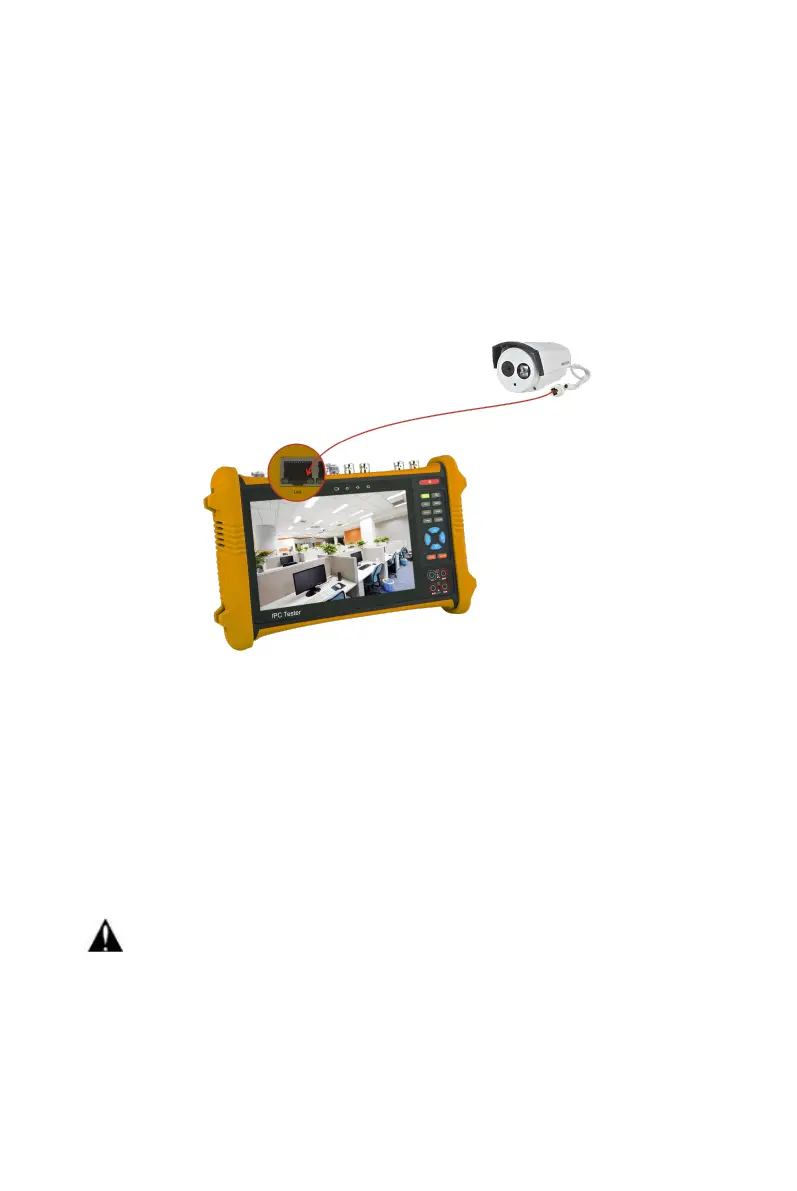

Power an IP camera with an independent power supply, then connect the IP camera to the tester’s LAN
port, if the link indicator of the tester’s LAN port is green and the data indicator flickers, it means the IP
camera and the tester are communicating. If the two indicators don’t flicker, check if the IP camera is
powered on or the network cable is not functioning properly.
Note:1) If the IP camera requires PoE power, then connect the IP camera to the tester’s LAN port . The
tester will supply PoE Power for the IP camera. Click on the icon labeled POE to turn the PoE Power
off or on.
2) If use the tester’s menu to turn off the tester’s PoE power supply, the PoE switch and the power
sourcing equipment are allowed to connect to the tester’s PSE port, and the PoE power will be supplied
to the IP camera by the tester’s LAN port. On this condition, the tester cannot receive data from IP
camera, but the computer connected to the PoE switch can receive the data via the tester.
Warning: PoE switch or PSE power sourcing equipment only can be connected to tester “PSE
IN” port, otherwise will damage the tester.
