Page.46.
If IP address setting has error or IP camera is not connected.. The tester prompts “Network Error”.
Click to quit from image display and return to the Tester interface.
Once you are viewing video on the Tester app, you will see the “Video Menu” icon on the top
right. This button will give you access to Snapshot, Record, Photo, Playback, PTZ, and Set. Please refer
to the ONVIF section to use these functions.

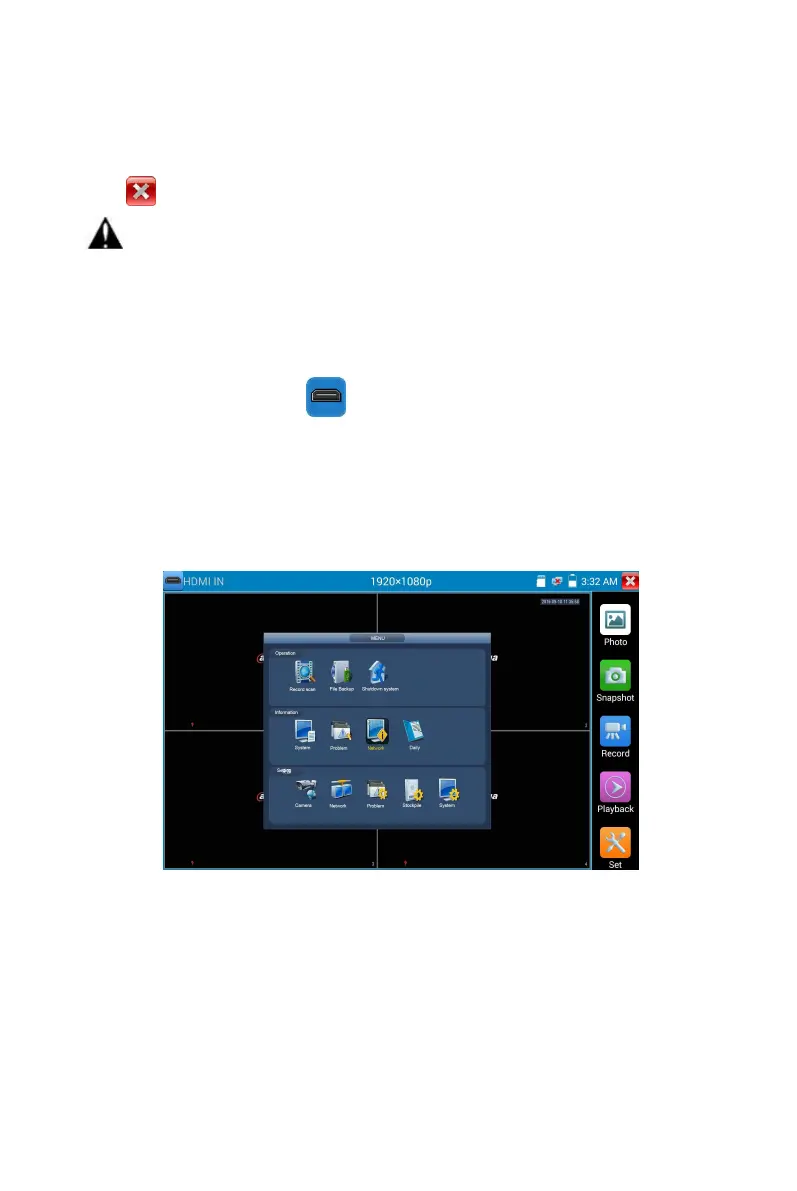

HDMI in HD signal test, Tap icon “ ”to enter
When tester receives HDMI in image, the top tool bar shows the resolution of this image. You can
select “resolution ”to set resolution in the setting menu .Tap screen by twice, full image display.
Support resolution below
720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p
(1) Snapshot
Click the icon “Snapshot “, when the video in, to take a picture and save the current video frame in the
tester as JPEG file.
If the unit is set to the manual mode an “Input Name” pop up box will appear and you can enter a title
for the snapshot. If the unit is set up to automatically set file names, this box will not pop up.
