Page.84.

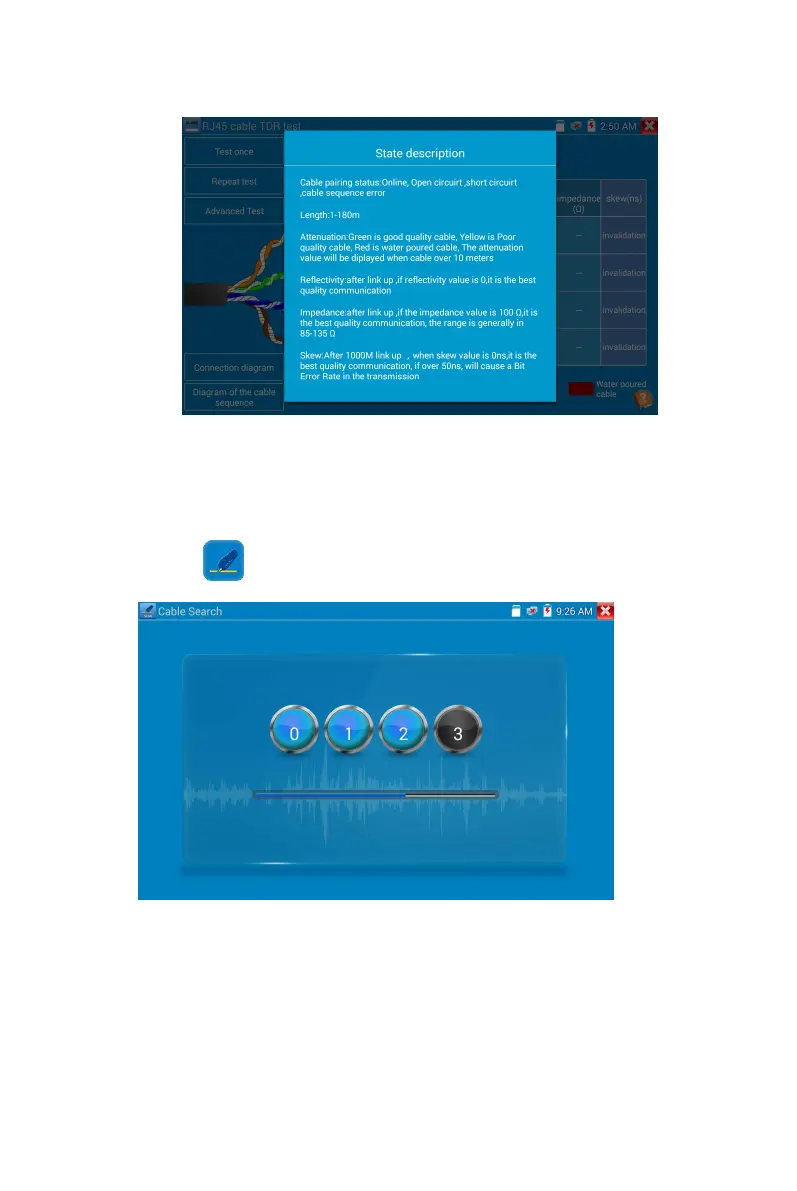

Click “Help”, check the instruction of all parameters.
Connect test cable or BNC cable to the UTP port or the CABLE SCAN (VIDEO OUT) port on the
bottom. Click icon to enter, click the Number on the screen to adjust audio type.
Use the blue Combination cable identifier and network cable tester’s copper pointer to touch all the
cables in the bundle .
You are searching at the other end. The cable that gives off the loudest tone is the cable connected to
the tester. Press the + or – buttons on your blue cable identifier to adjust the volume.
