Dahua PFM906 User Manual

Page.40.
Snapshot
：
Click bottom“snapshot” to screenshot the image and store it in the tester.
if select manual storage, appears dialog box “Input Name” , user-defined the files name(by Chinese
character, English letter or digit ) to save in the tester, if select “Auto- storage”,the tester auto stores the
files after snapshot.

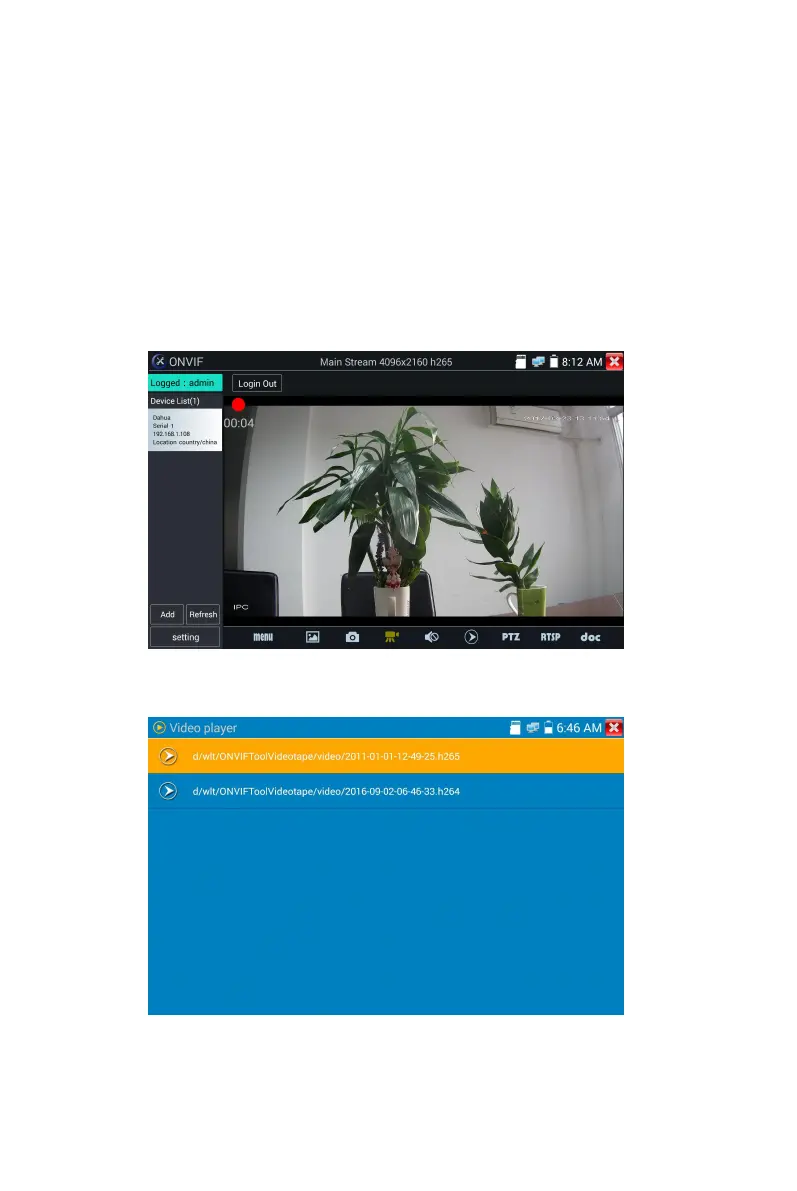

Record
：
When you click bottom the “Record” icon, video starts recording. A red recording icon appears
on the screen and begins to flash and a timer appears indicating the time elapsed for the video. Click on
the “Stop” icon to stop recording and save the video file in the tester.
Playback：Click the “Playback” icon to view saved videos. Double click the video you want to play.
Click to return to the last menu.
To rename or delete a photo, click and hold on the file until this screen appears:

Dahua PFM906 Specifications

General

Brand	Dahua
Model	PFM906
Category	Test Equipment
Language	English
