Daikin Comfora FTXP20~71L2V1B - Page 53

5 Technical data
Service manual
53
ATXP20~35L2V1B + FTXP20~71L2V1B + ARXP20~35L2V1B +
RXP20~71L2V1B
Split Comfora R32
ESIE18-01 – 2019.02

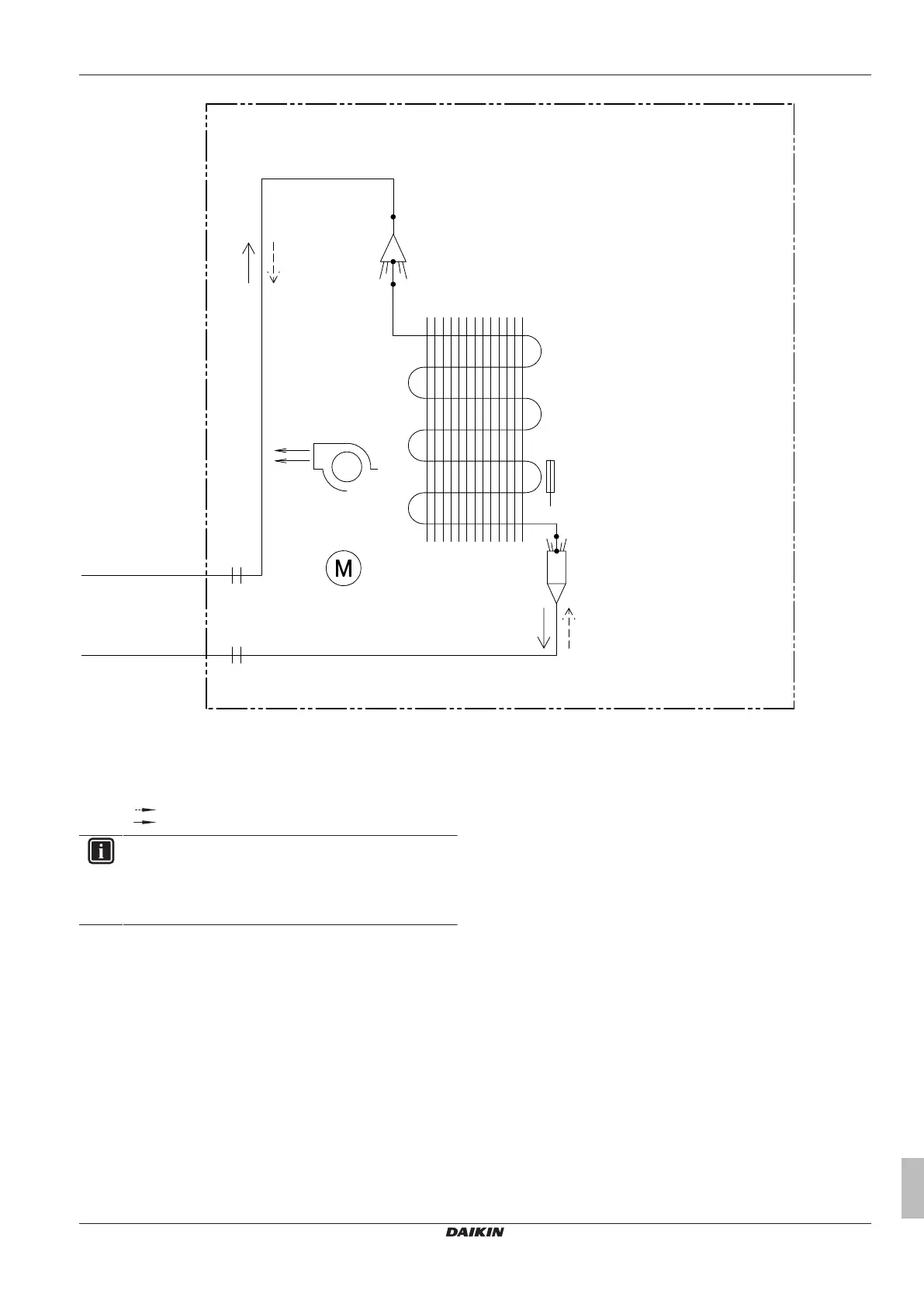

Class 50~71
6.4CuT
12.7CuT
12.7CuT
6.4CuT
a
b
c
d
R2T
M1F
e
a Field piping (liquid: Ø6.4mm flare connection)
b Field piping (gas: Ø12.7mm flare connection)
c Crossflow fan
d Heat exchanger
e Distributor
M1F Fan motor
R2T Thermistor (heat exchanger)
Heating
Cooling
INFORMATION
The diagrams shown in this manual may be incorrect due
to changes/updates to the unit. Correct diagrams are
supplied with the unit and can also be found in the
technical data book.
