Daikin Comfora FTXP20~71L2V1B - Component Overview: Outdoor Unit

5 Technical data
Service manual
58
ATXP20~35L2V1B + FTXP20~71L2V1B + ARXP20~35L2V1B +
RXP20~71L2V1B
Split Comfora R32
ESIE18-01 – 2019.02

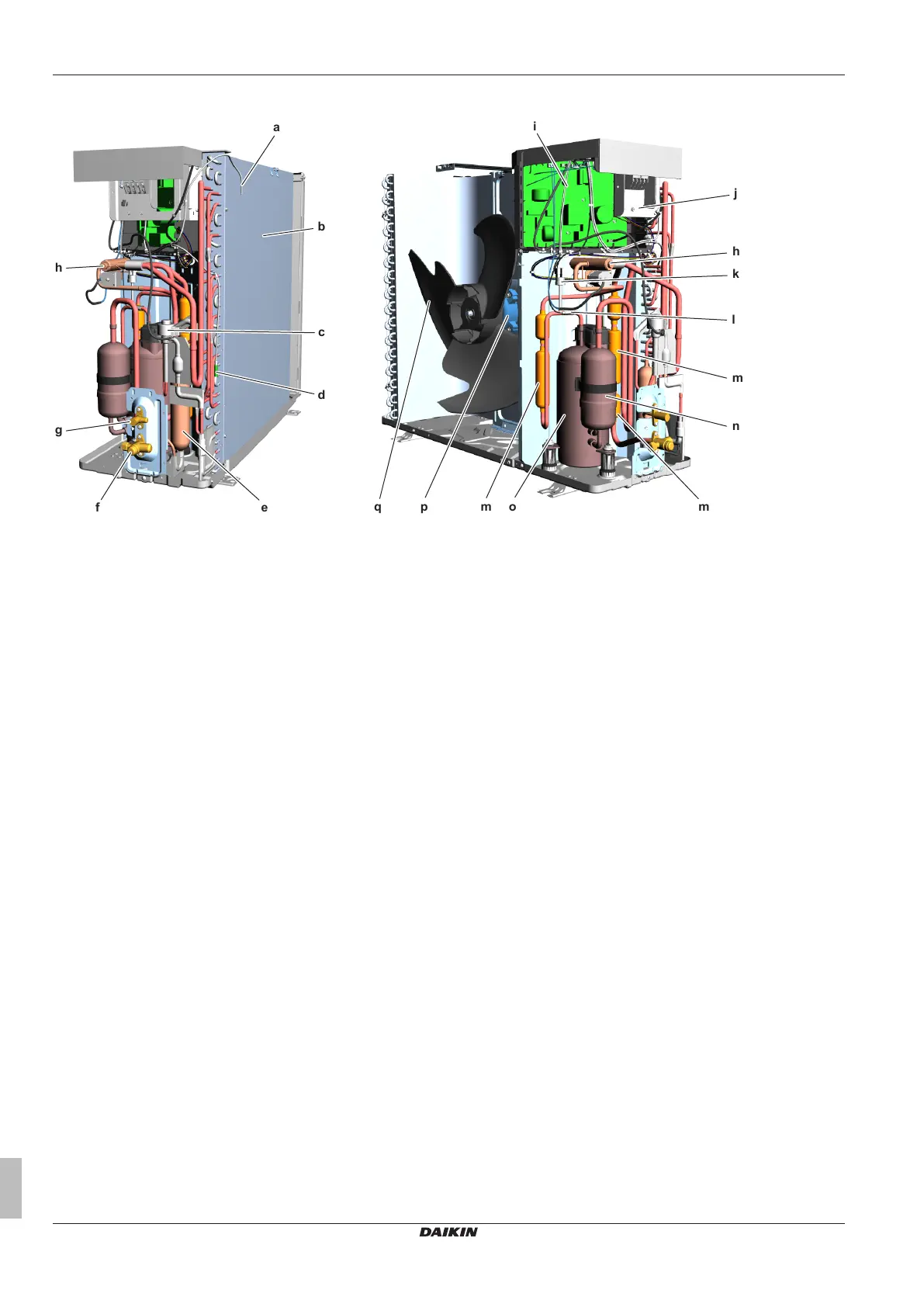

5.4.2 Component overview: Outdoor unit
i
j
h
k
l
n
mopq
a
b
c
d
e
f
g
h
m
m
a Air thermistor R1T
b Heat exchanger
c Expansion valve
d Heat exchanger thermistor R2T
e Liquid receiver
f Liquid service ports
g Gas service port
h 4‑way valve coil
i Main + inverter PCB
j Service PCB
k High pressure switch (only for RXP50~71L)
l Discharge pipe thermistor R3T
m Muffler
n Accumulator
o Compressor
p Fan motor
q Fan
