Daikin Comfora FTXP20~71L2V1B - Page 56

5 Technical data
Service manual
56
ATXP20~35L2V1B + FTXP20~71L2V1B + ARXP20~35L2V1B +
RXP20~71L2V1B
Split Comfora R32
ESIE18-01 – 2019.02

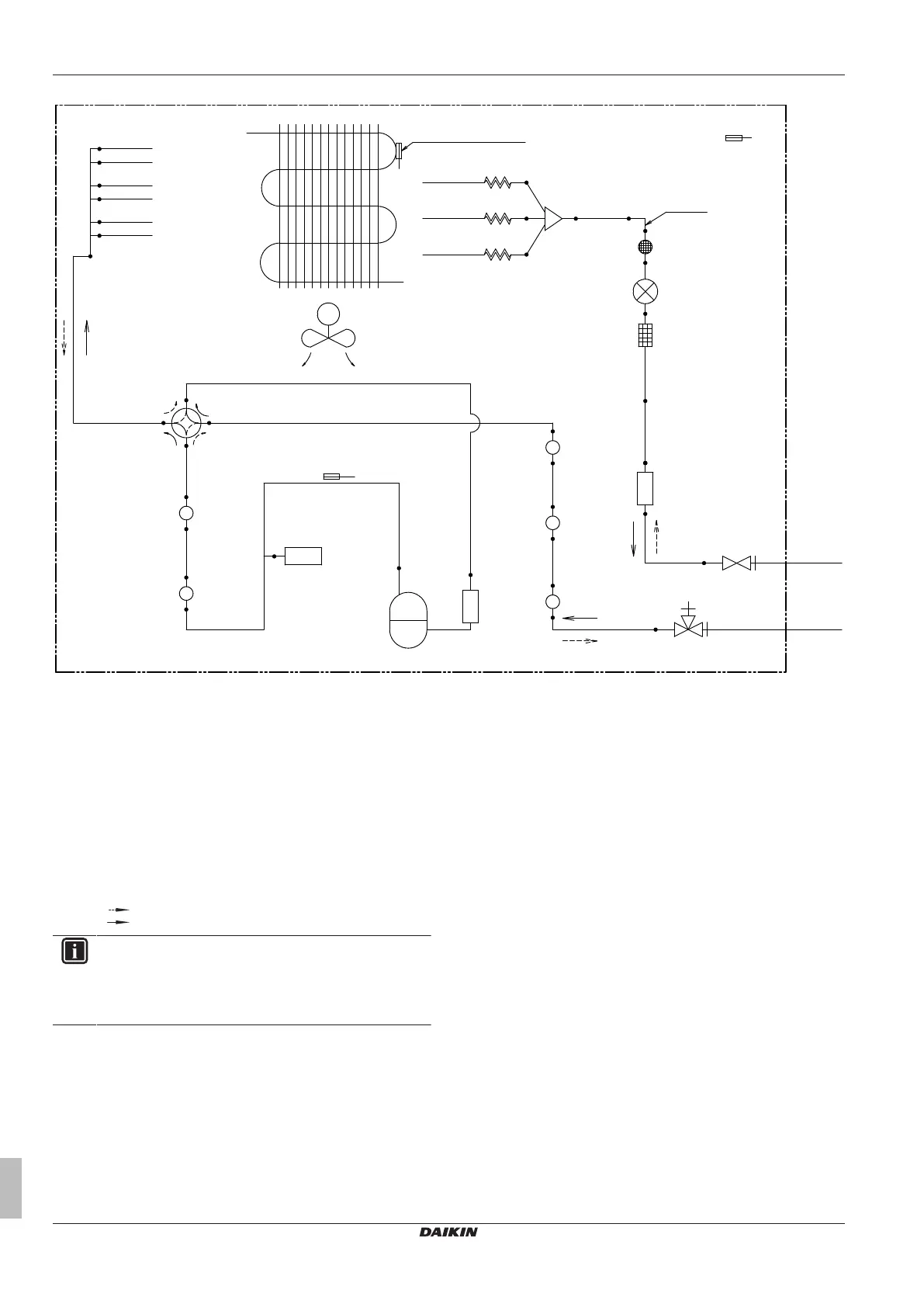

RXP60~71L
M
HPS
·7.0· CuT
·7.0· CuT
·7.0· CuT
·7.0· CuT
·7.0· CuT
·7.0· CuT
·12.7· CuT
·12.7· CuT
·12.7· CuT
·12.7· CuT
·12.7· CuT
·12.7· CuT
·9.5· CuT
·6.4· CuT
·9.5· CuT
·6.4· CuT
·6.4· CuT
·6.4· CuT
·6.4· CuT
·4.0· CuT
·4.0· CuT
·4.0· CuT
·9.5· CuT
·12.7· CuT·12.7· CuT
·6.4· CuT
a
b
c
d
e
e
f
g
h
M1C
R1T
R2T
R3T
Y1E
Y1S
e
e
e
i
j
S1PH
M1F
a Field piping (liquid: Ø6.4mm flare connection)
b Field piping (gas: Ø12.7mm flare connection)
c Stop valve (liquid)
d Stop valve (gas)
e Muffler
f Liquid receiver
g Filter
h Muffler with filter
i Heat exchanger
j Accumulator
M1C Compressor
M1F Fan
R1T Thermistor (outdoor air)
R2T Thermistor (heat exchanger)
R3T Thermistor (compressor discharge)
S1PH High pressure switch
Y1E Electronic expansion valve
Y1S Solenoid valve (4‑way valve)(ON: heating)
Heating
Cooling
INFORMATION
The diagrams shown in this manual may be incorrect due
to changes/updates to the unit. Correct diagrams are
supplied with the unit and can also be found in the
technical data book.
