Daikin Stylish Series User Manual

5 | Technical data
Service manual
152
(C)(F)TXA15~50A(W)(S)(T) + (C)(F)TXA15~50B(B)(S)(T) + RXA42+50A +
RXA20~35A + RXA42+50B
Split Stylish R32
ESIE18-03C – 2020.02

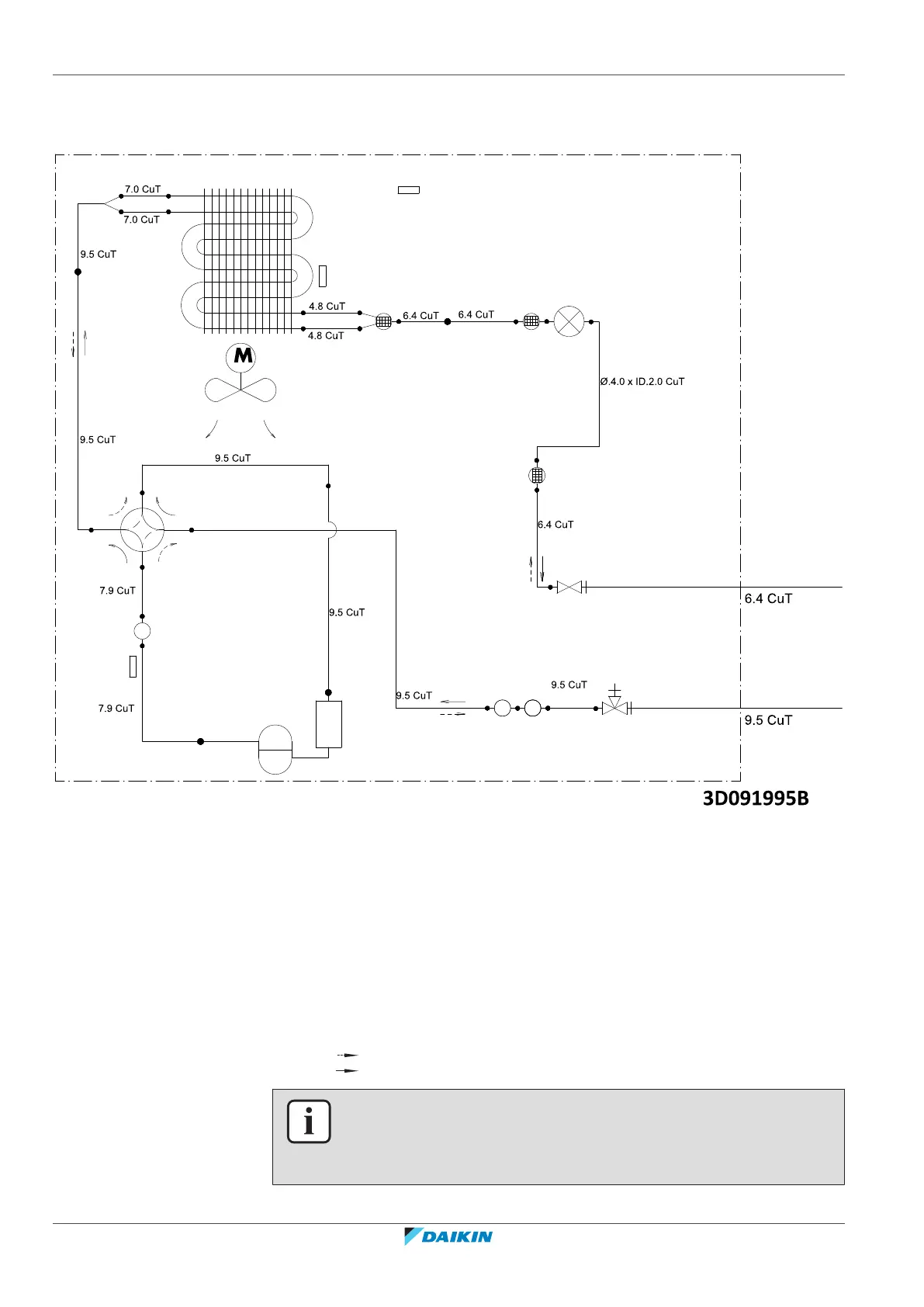

5.3.2 Piping diagram: Outdoor unit
RXA20~35A
a
b
c
d
e
f
g
h
M1C
M1F
R1T
R2T
R3T
Y1E
Y1S
e
e
h
a Field piping (liquid: Ø6.4mm flare connection)
b Field piping (gas: Ø9.5mm flare connection)
c Stop valve (liquid)
d Stop valve with service port (gas)
e Muffler with filter
f Heat exchanger
g Accumulator
h Muffler
M1C Compressor
M1F Fan
R1T Thermistor (outdoor air)
R2T Thermistor (heat exchanger)
R3T Thermistor (compressor discharge)
Y1E Electronic expansion valve
Y1S Solenoid valve (4‑way valve)(ON: cooling)
Heating
Cooling
INFORMATION
The diagrams shown in this manual may be incorrect due to changes/updates to the
unit. Correct diagrams are supplied with the unit and can also be found in the
technical data book.

Daikin Stylish Series Specifications

General

Energy Efficiency	A+++ (depending on model)
Sound Pressure Level	19 dB(A) - 50 dB(A) (depending on model)
Sound Power Level (Heating)	32 dB(A) - 62 dB(A) (depending on model)
Noise Level (Indoor Unit)	19 dB(A) - 50 dB(A) (depending on model)
Refrigerant	R32
Power Supply	220-240 V, 50 Hz
Wi-Fi Control	Yes
Color	White
Features	3D Airflow
