Daikin Stylish Series - Indoor Unit

2 | Components
Service manual
105
(C)(F)TXA15~50A(W)(S)(T) + (C)(F)TXA15~50B(B)(S)(T) + RXA42+50A +
RXA20~35A + RXA42+50B
Split Stylish R32
ESIE18-03C – 2020.02

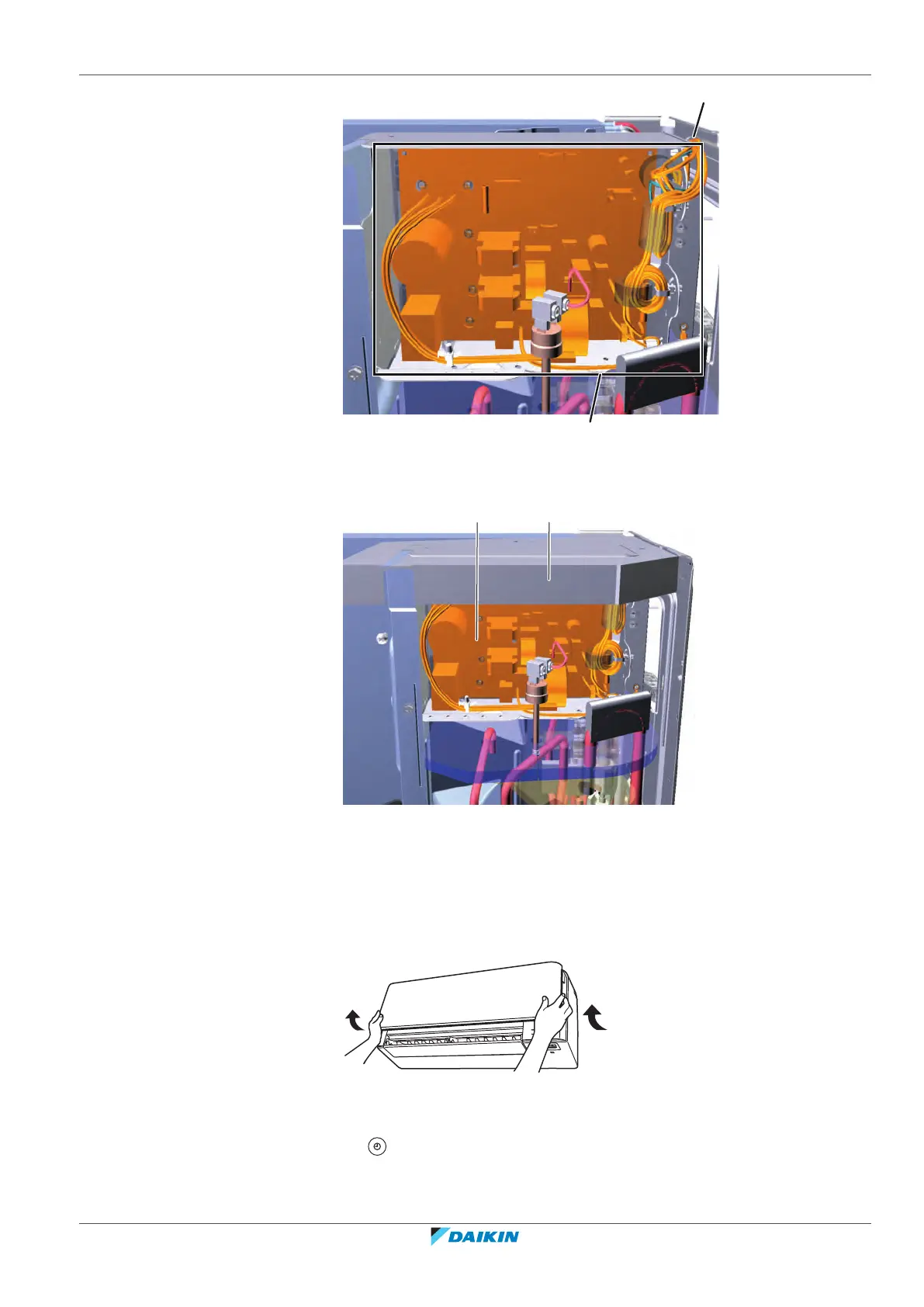

a
b
a Cable tie
b Switch box
7 Install the insulation on the upper side of the switch box.
ab
a Insulation
b Main PCB
2.13.2 Indoor unit
To open the front panel
1 Hold the front panel on both sides and open it.
Open the front panel using the user interface.
2 Stop operation.
3 Hold
on the user interface for at least 2seconds.
Result: The front panel will open.
