Page 14 of 62
SK2014SON002TechMnlFMCD00
3

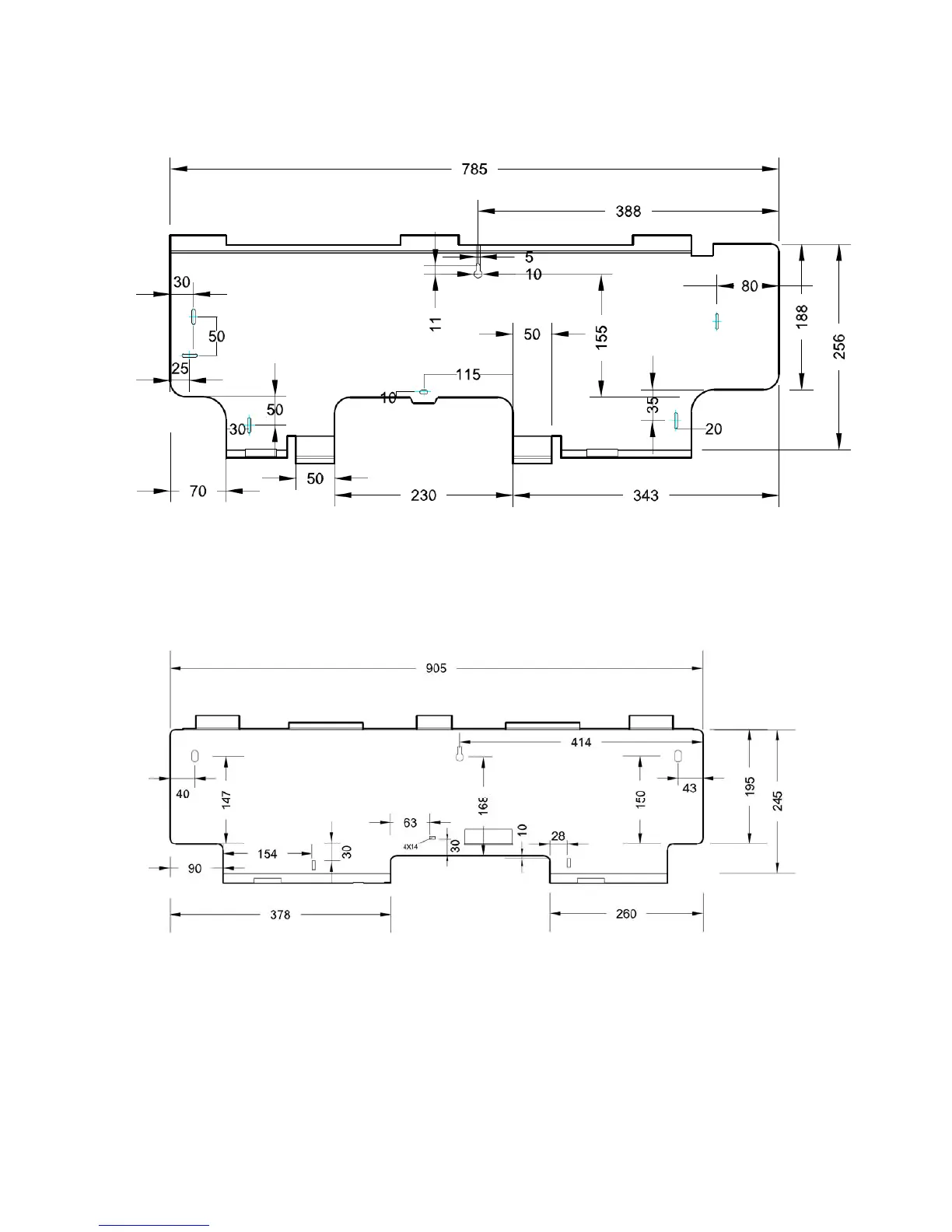

B.1.2. MountingPlateDimensions
FMCD04/06/12/15/18–ECM
FMCD20/24/30–ECM
(Alldimensionsshowninmm)
