B.1.5. InstallingtheHydronicUnit

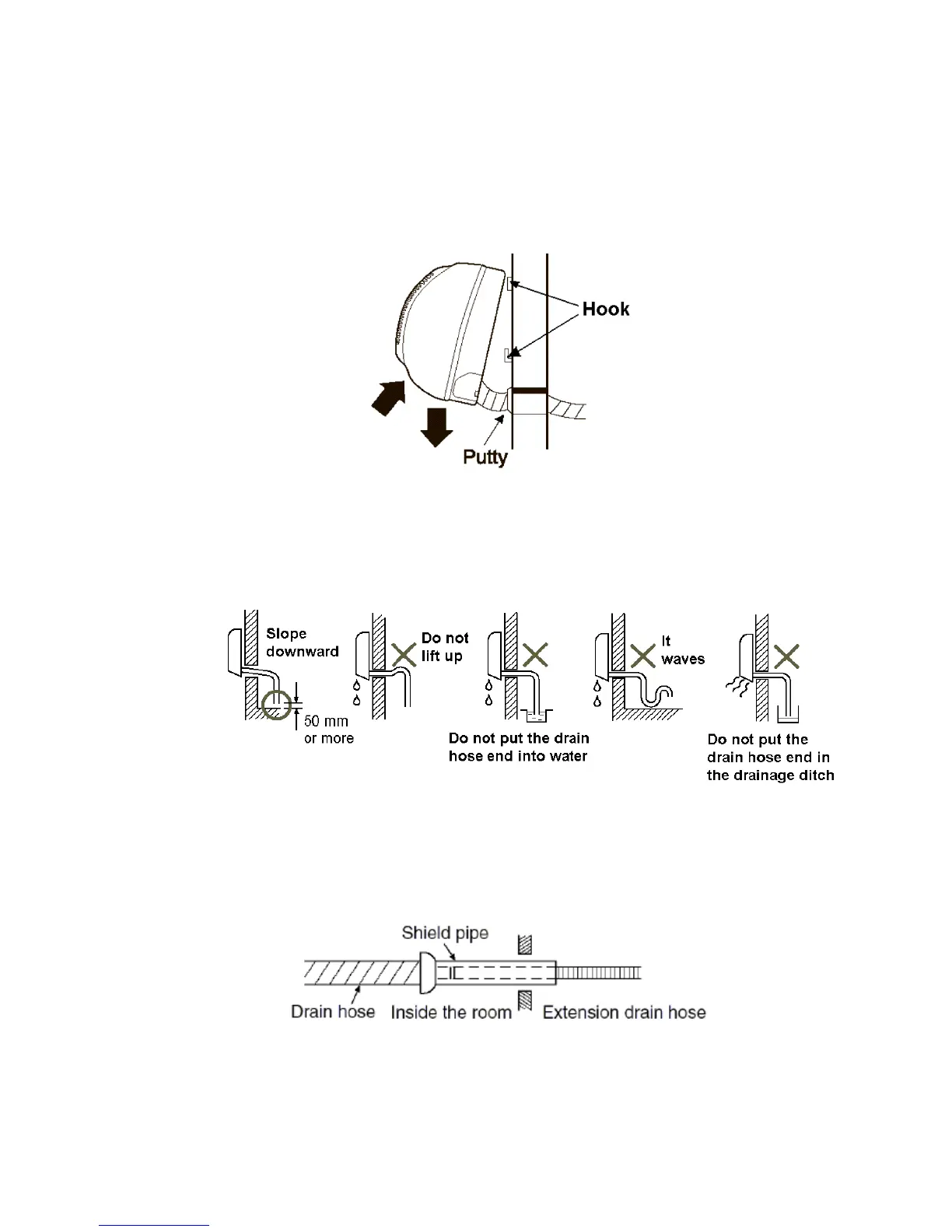

1. Passthepipingthroughtheholeinthewallandhooktheindoorunitonthemountingplatebytheupper
hooks.
2. Movethebodyoftheunitfromsidetoverifyifitissecurelyfixed.
3. Whilepushingtheunittowardthewall,liftitslightlyfrombeneathtohookituponthemountingplateby
thelowerhooks.
4. Makesuretheunitfirmlyrestsonthehooksofthemountingplate.

B.1.6. DrainagePipingWorks
1. Installthedrainhosesothatitslopesdownwardslightlyforfreedrainage.Avoidinstallingitasshownin
thebelowillustrationsmarkedwithan“X”.

2. Putwaterinthedrainpanandmakesurethatthewaterdrainsoutdoors.
3. Iftheflexibledrainhoseprovidedwiththeindoorunitisnotlongenough,pleaseextenditbyjoiningitto
anextensionhose(notprovided).Besuretoinsulatetheconnectingpartoftheextensiondrainhosewith
ashieldpipeasshown.

4. Iftheattacheddrainhosepassesthroughanindoorarea,insulateitwithheatinsulationmaterial.
