Daitsu FMCD*ECM series - Wired Wall Pad

Page 53 of 62
SK2014‐SON‐002‐TechMnl‐FMCD‐003
D.2. WiredWallPad

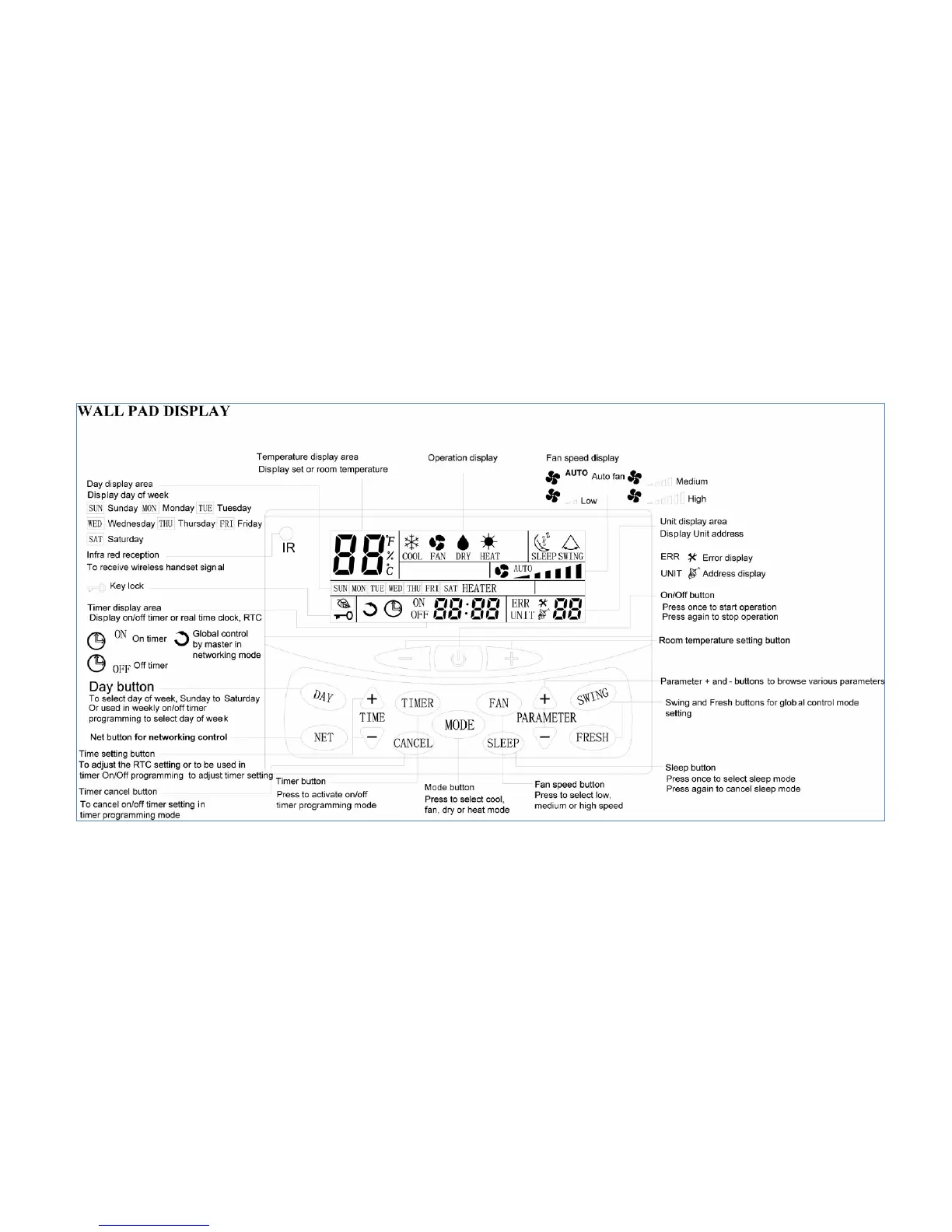

D.2.1. WallPadDisplay

































Attention
 Wallpadwillrecognizethemainboardmodelautomaticallywhetheritis2‐pipeor4‐pipesystem.
 AutoCool‐Heatoperationisapplicablein4‐pipesystemonly.
 Whenthewall
padisinstalled,thewall‐padtemperaturesensorautomaticallyoverridesthedefaultreturnairsensor(attachedtotheunit’sreturnairgrille).
