Daitsu FMCD*ECM series - Installing the Mounting Plate; Drilling the Condensate Drainage Hole

Page 15 of 62
SK2014‐SON‐002‐TechMnl‐FMCD‐00
3

B.1.3. InstallingtheMountingPlate
1. Selectthestructuralposition(e.g.apillarorlintel)onthewall.
2. Thentemporarilyfastenthemountingplateonthewallwithasteelnail.

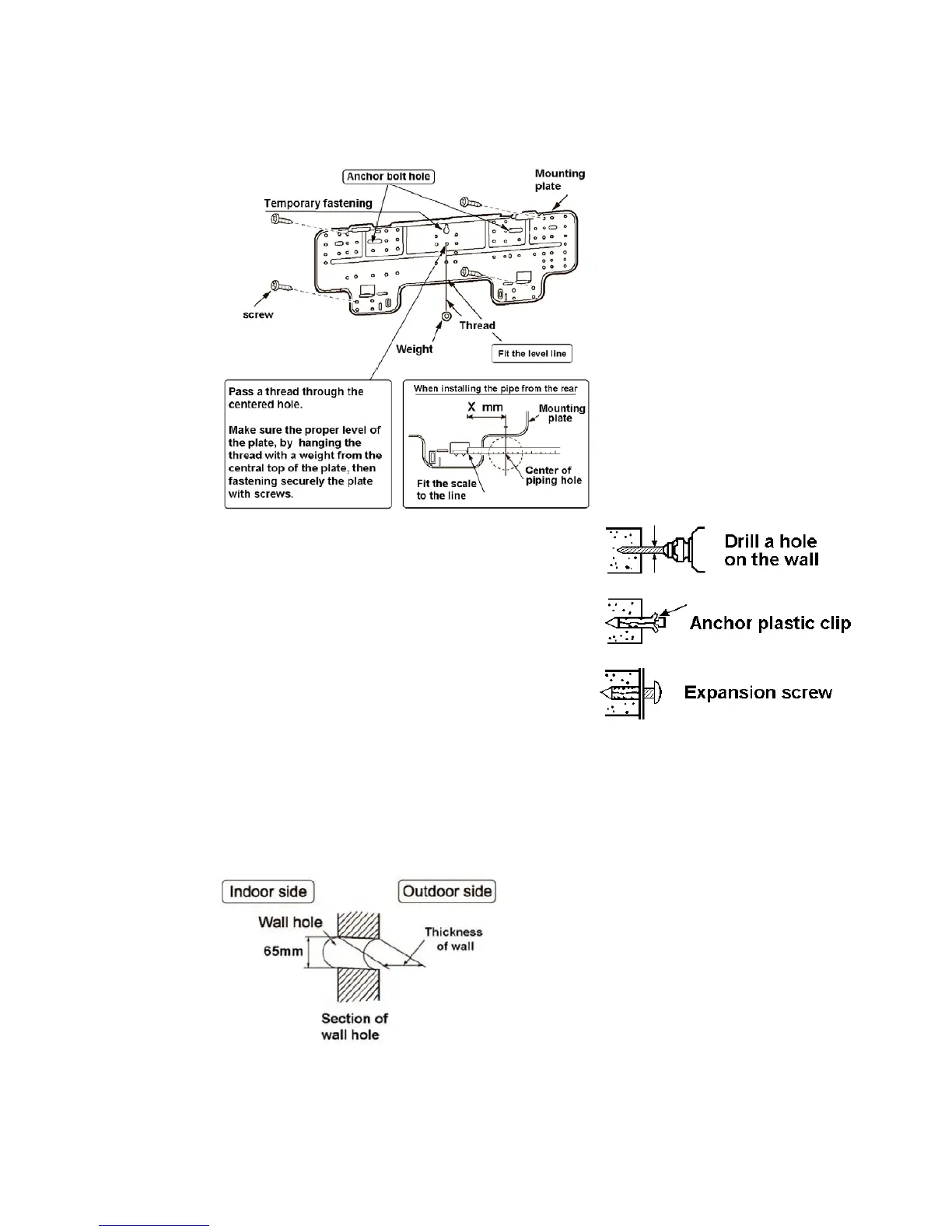

3. Mountthemountingplatehorizontallyasshowninthe
abovefigureorbymeansofgradiometer.Failureto
followthismaycause
watertodripindoorsandcreate
additionalnoise.
4. Fixthemountingplatebymeansofexpansionscrewsor
tappingscrews.






B.1.4. DrillingtheCondensateDrainageHole
1. Ensurethattheholeforcondensatedrainageiscorrectlypositioned.Theheightshouldbelowerthanthe
bottomedgeoftheindoorunit.
2. Drilla65mmdiameterholewithadescendingslope.
3. Sealitoffwithputtyafterinstallation.

