B.2. UnitMaintenancesandPreparations

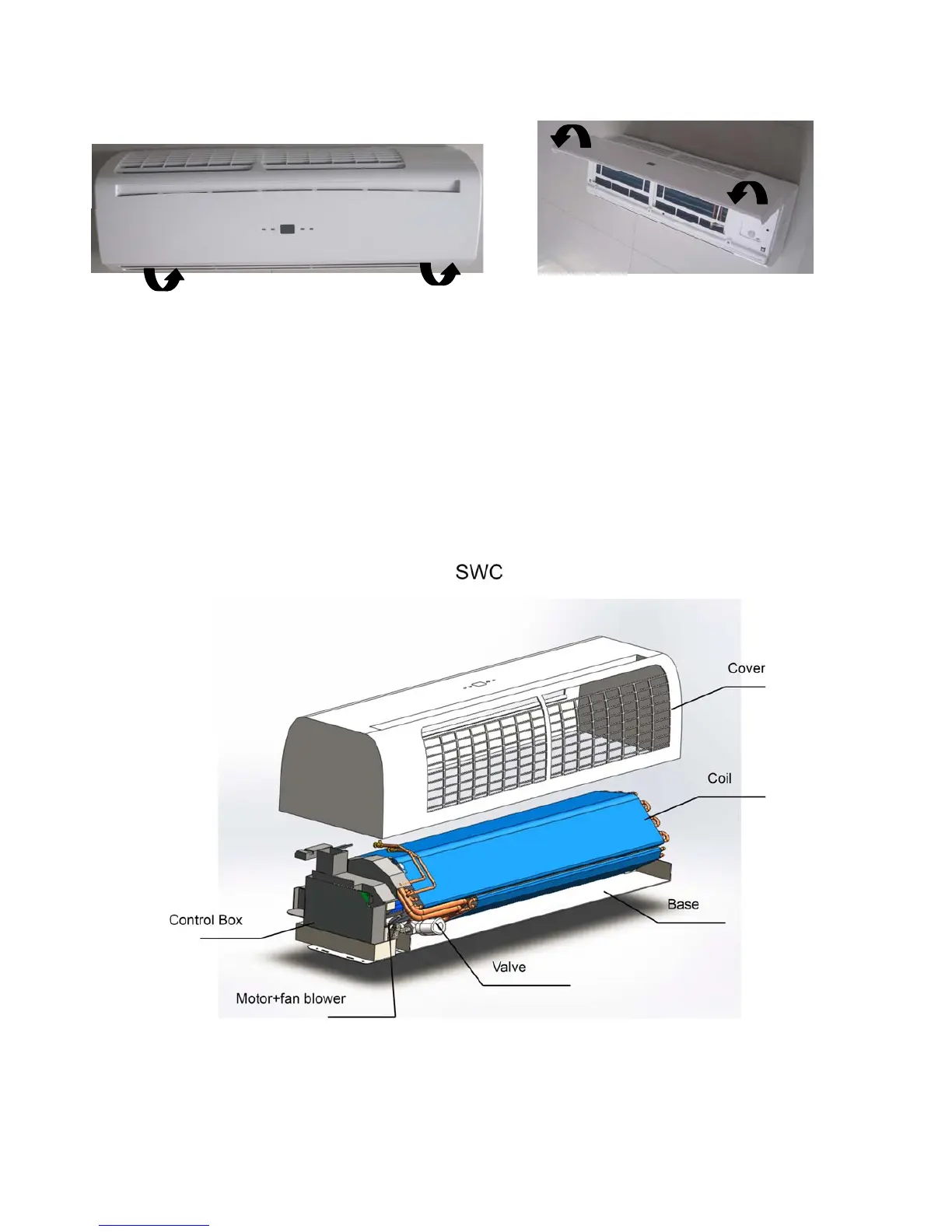

B.2.1. OpeningandClosingOfLift‐UpGrilleCover



B.2.2. RemovingFrontCoverAssembly
1. Setthehorizontallouvertothehorizontalposition.
2. Removethescrewcapsbelowthelouver,andthenremovethemountingscrews.
3. Openthelift‐upgrillecoverbygraspingthepanelatbothsidesasshownabove.
4. Removetheremainingscrewslocatedinthecenteroftheunit/ofthefrontcover.
5. Graspthelowerpartofthefrontcoverandpulltheentireassemblyoutanduptowardsyou.


Closethegrillecoverbypressingdownatthe
positionsindicatedbythearrows.
