5. d09: Jog Frequency Control – Parameter value d09 programs a Multi-function Input
Terminal: M1 (Pr.38), M2 (Pr.39), M3 (Pr.40), M4 (Pr.41) or M5 (Pr.42) for Jog control.
Jog operation programmed by d09 can only be initiated with the motor stopped (refer
to Pr.15, Pr.16).
6.
d10: Accel./Decel. Speed Inhibit – Parameter d10 programs a Multi-functional Input
Terminal: M1 (Pr.38), M2 (Pr.39), M3 (Pr.40), M4 (Pr.41), M5 (Pr.42) for "hold speed"
control. When the command is accepted, acceleration and deceleration is stopped
and the AC drive maintains the motor at a constant speed.
7.
d11: First or Second Accel./Decel. Time Select – Parameter value d11 programs a
Multi-function Input Terminal: M1 (Pr.38), M2 (Pr.39), M3 (Pr.40), M4 (Pr.41) or M5
(Pr.42) to control selection of first or second Accel./Decel. times (refer to Pr.10, Pr.11,
Pr.12, Pr.13).
NOTE: This function is disabled when the drive is performing other functions.

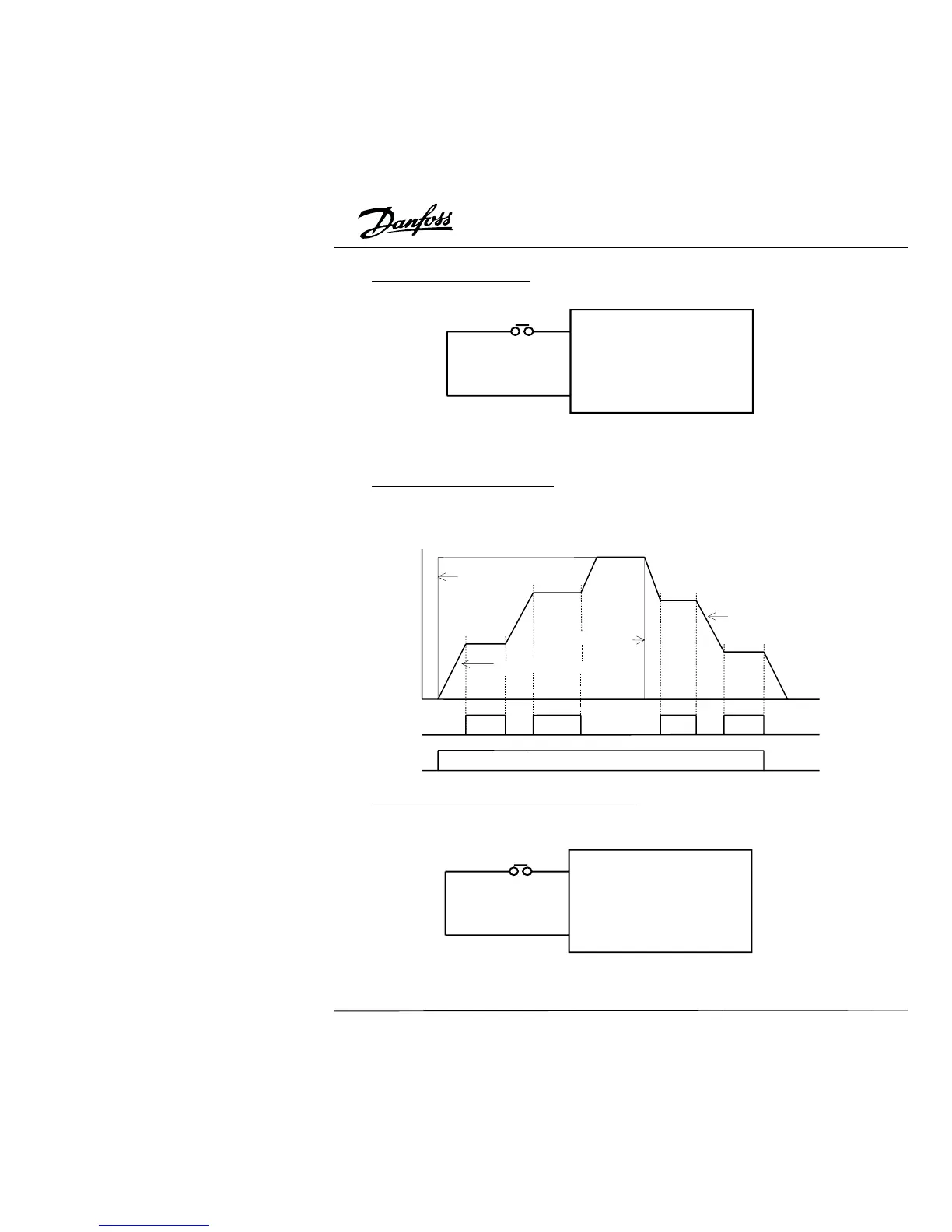

d09 jog operation
Command
Mx "Closed": Operation available.
GND
VLT MICRO
d11 Switch for 1st / 2nd
Accel./Decel.
Mx "Closed": Operation available.
Running with 2nd Accel./Decel.
GND
VLT MICRO
