Danfoss 176F7302 User Manual

VLT
®
MICRO
Recommended Input Fuses
BUSSMAN Type JJN
Fuse
VLT MICRO model176F7300 JJN-10
VLT MICRO model176F7301 JJN-20
VLT MICRO model176F7302 JJN-25
VLT MICRO model176F7303 JJN-10
VLT MICRO model176F7304 JJN-20
VLT MICRO model176F7305 JJN-25
VLT MICRO model176F7306 JJN-10
VLT MICRO model176F7307 JJN-20
VLT MICRO model176F7308 JJN-25
10
NOTE:
1. Main-circuit terminals spec. is M3.
2. Main-circuit wiring is 600V 14AWG max.
3. Wiring between drive and motor should
not exceed 330 ft. (100m)
(1) 100 ft. (30m) below, the PWM carrier
frequency should be 15kHz below.
(2) 165 ft. (50m) below, the PWM carrier
frequency should be 10kHz below.
(3) 300 ft. (100m) below, the PWM carrier
frequency should be 5kHz below.
4. Voltage drop (V) = √3 • line resistance
(Ω.Km) • line lengfh (m) • Current (A) • 10
-3

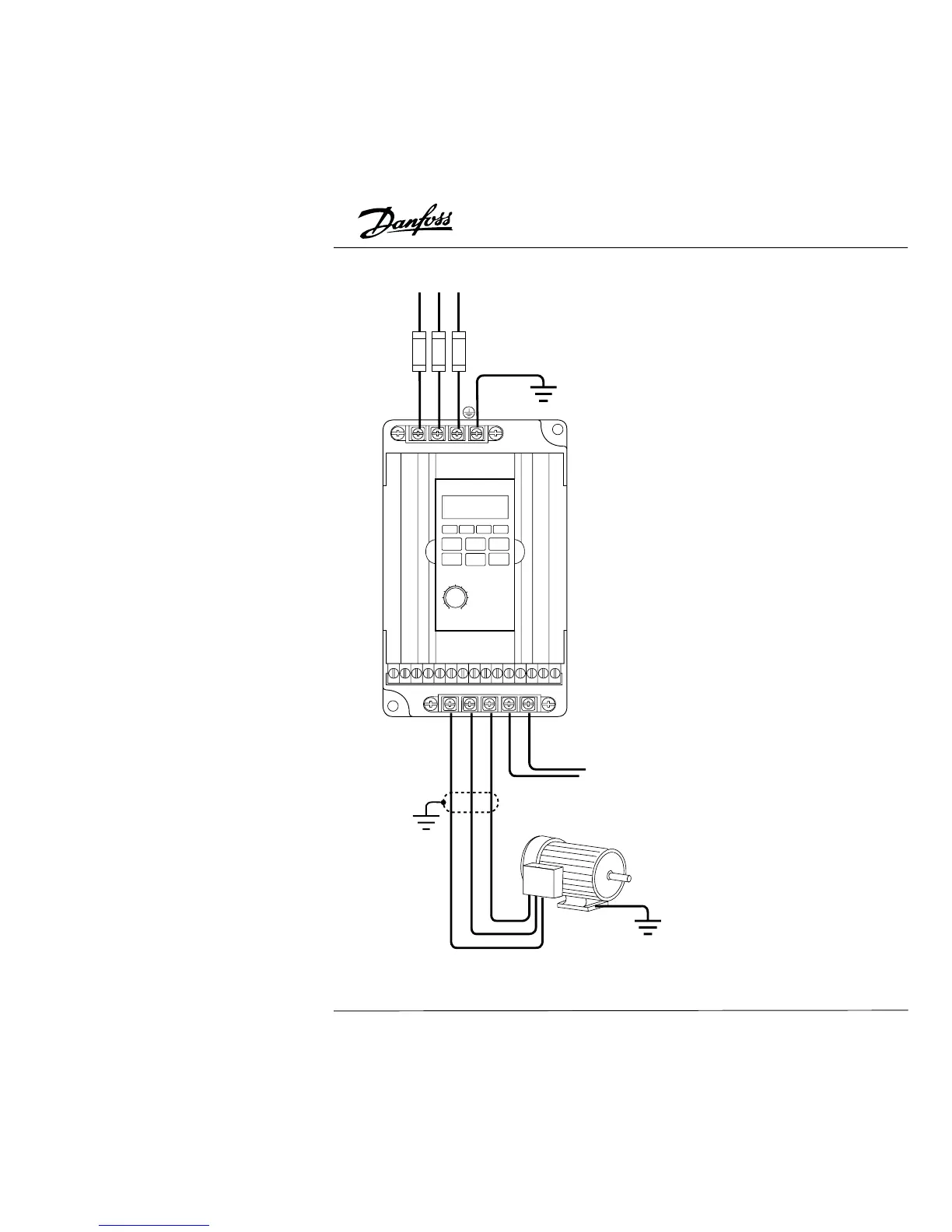

Connection for optional brake resistor.
Refer to Appendix for model numbers.
R S T
U
V
W
B1 B2
200-240 V200-240 V
200-240 V200-240 V
200-240 V
AC unitsAC units
AC unitsAC units
AC units
