Setting 1S mode can be done by the following menu sequence:
EN: Main Menu – Channels settings – Channel #X – Regulation Type –
{ Enter – Up/Down (1S/PR) – Enter }
EN: Main Menu – Channels settings – Channel #X – Regulation Type – { Enter – Up/
Down (1S/PR) – Enter }

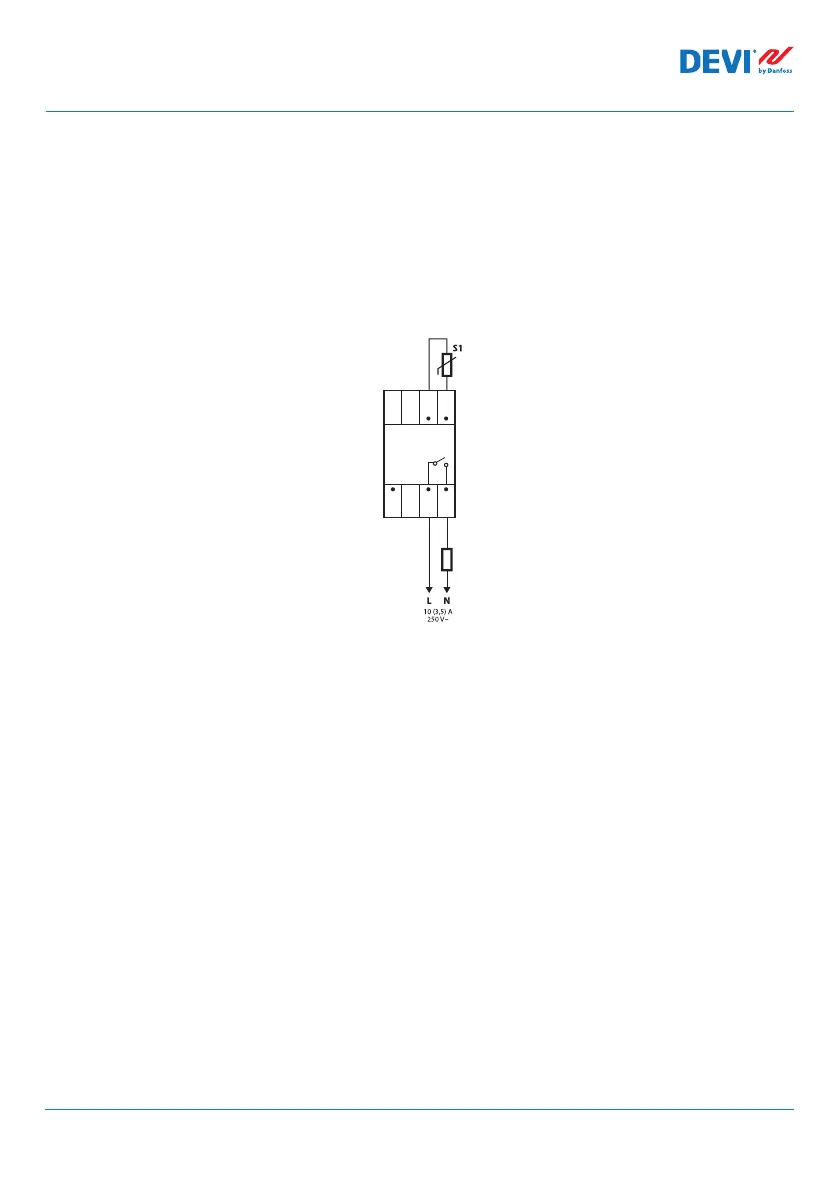

Common Channel diagram for 1S mode is shown on the picture below:
Channel #1
COM
DI 1
C 1
NO 1
AI 1
Some control parameters can be set up: mandatory – control temperature, optionally –
hysteresis and control alarm temperature diapason.
Temperature. 1S mode has temp. setting with max. diapason from -50°C degree to 200°C.
Default: 5°C.
NB: Each type of sensor has its own temperature range, which may differ from the maximum
given above.
Hysteresis.1S mode has hysteresis setting with diapason from 0,2 degree to 9 degree.
Default: 0,4°C.
NB: Hysteresis is used as the plus or minus value to the set temperature. For example, if
set temp. = 5°C and hysteresis = 0,4°C, then heating will turn off at the temperature of
5 + 0,4 = 5,4°C and accordingly turn on at the temperature of 5 – 0,4 = 4,6°C.
