Danfoss H1T 045 - Charge Pressure Relief Valve Adjustment

Charge Pressure Relief Valve Adjustment
Operate the system with the pump in neutral (zero displacement) when measuring charge pressures.

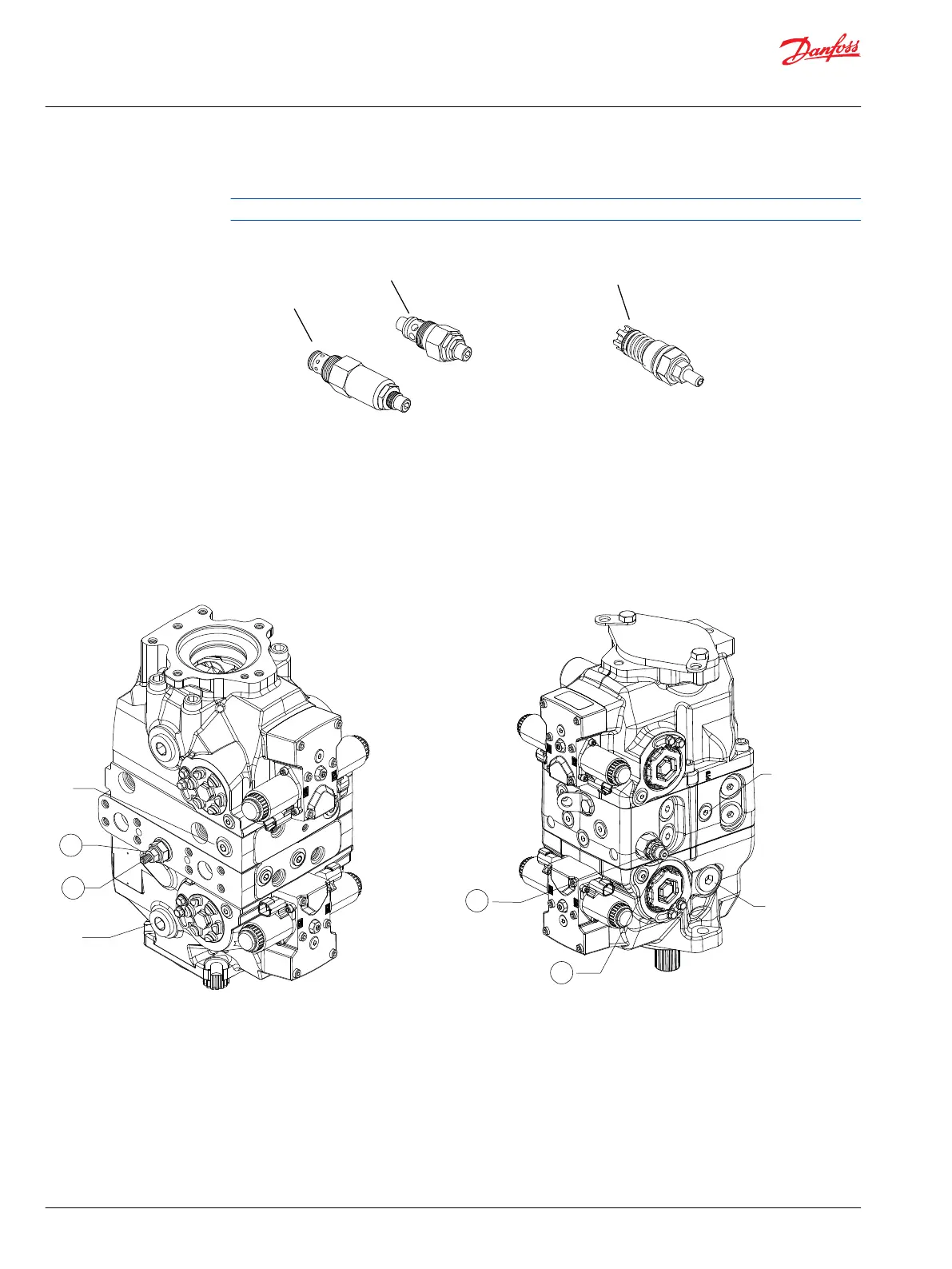

P109549
New style
Old style
Old style
This procedure explains how to check and adjust the charge pressure relief valve.
Charge pressure adjustment
L2
P109550
M3
045/053
060/068
1
2
M3
L2
1
2
Lock nut, wrench size 19 mm, torque 40 N•m [29.5 lb•ft] (pos. 1)
Adjusting screw, wrench size 6 mm (pos. 2)
Service Manual
H1T 045/053, 060/068 Axial Piston Tandem Pumps
