Displacement Limiter Adjustment for Tandem Pumps
An optional displacement limiter is located on each side of the pump housing. The maximum
displacement can be limited in either direction.
Displacement limiters are not pre-set by the factory but are installed to minimize the extension of the
adjustment screw while not limiting the maximum displacement of the pump. A small amount of
clockwise screw adjustment is required before the 100% displacement condition is reached.
C
Caution
Before adjusting the displacement limiter, mark the position of the servo cylinder.

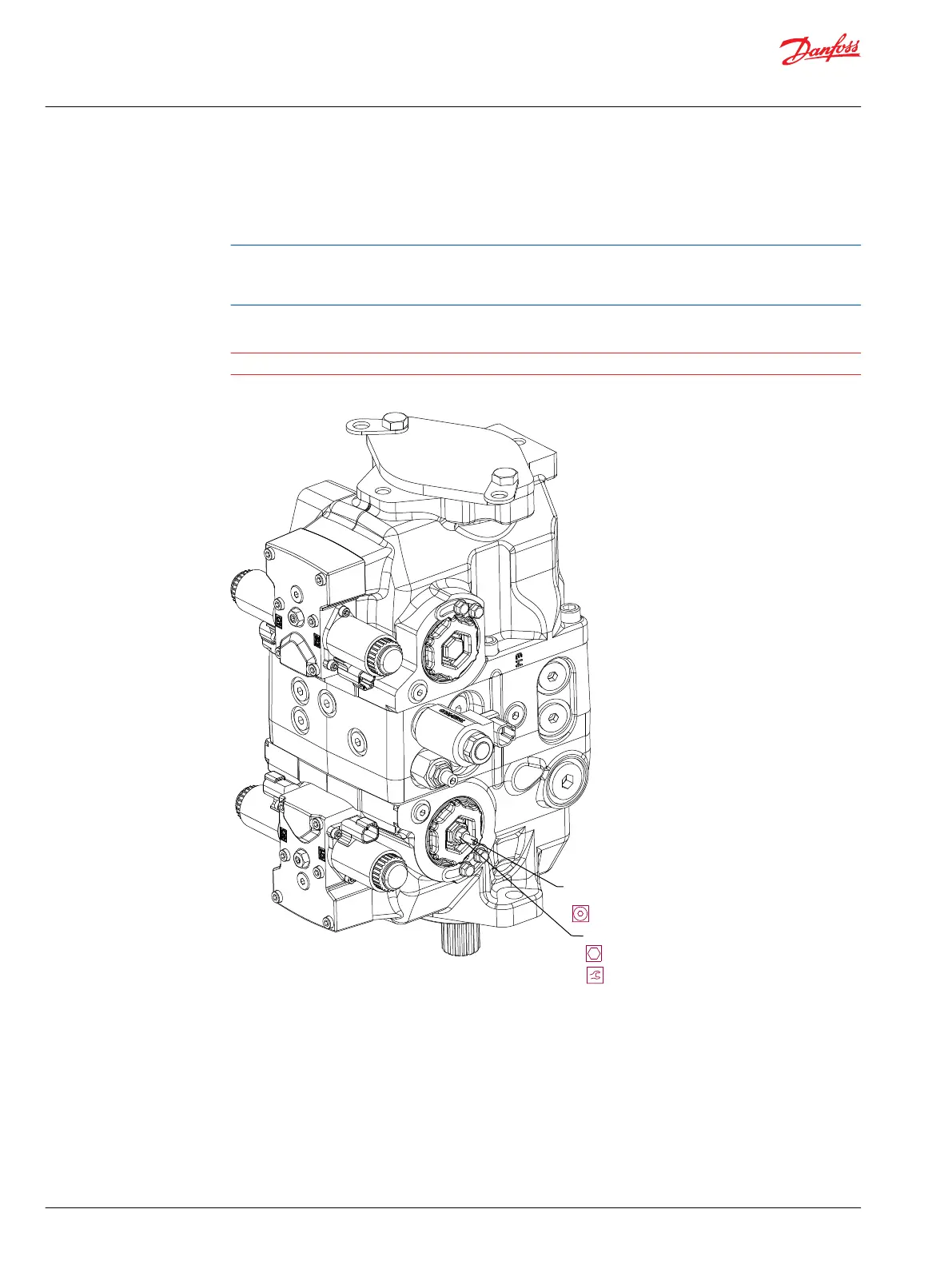

Displacement limiter adjustment
4 mm
13 mm
P106 144E
23 N•m
[17 lbf•ft]
E450
E550
Service Manual
H1T 045/053, 060/068 Axial Piston Tandem Pumps
Adjustments
48 |
©
Danfoss | September 2020 AX152886481761en-000405
