P109558
B015
B015
B020
G250
D065
G250
D065
G250
B015
G250
G250
B015
B020
B020
B020
G250
V10

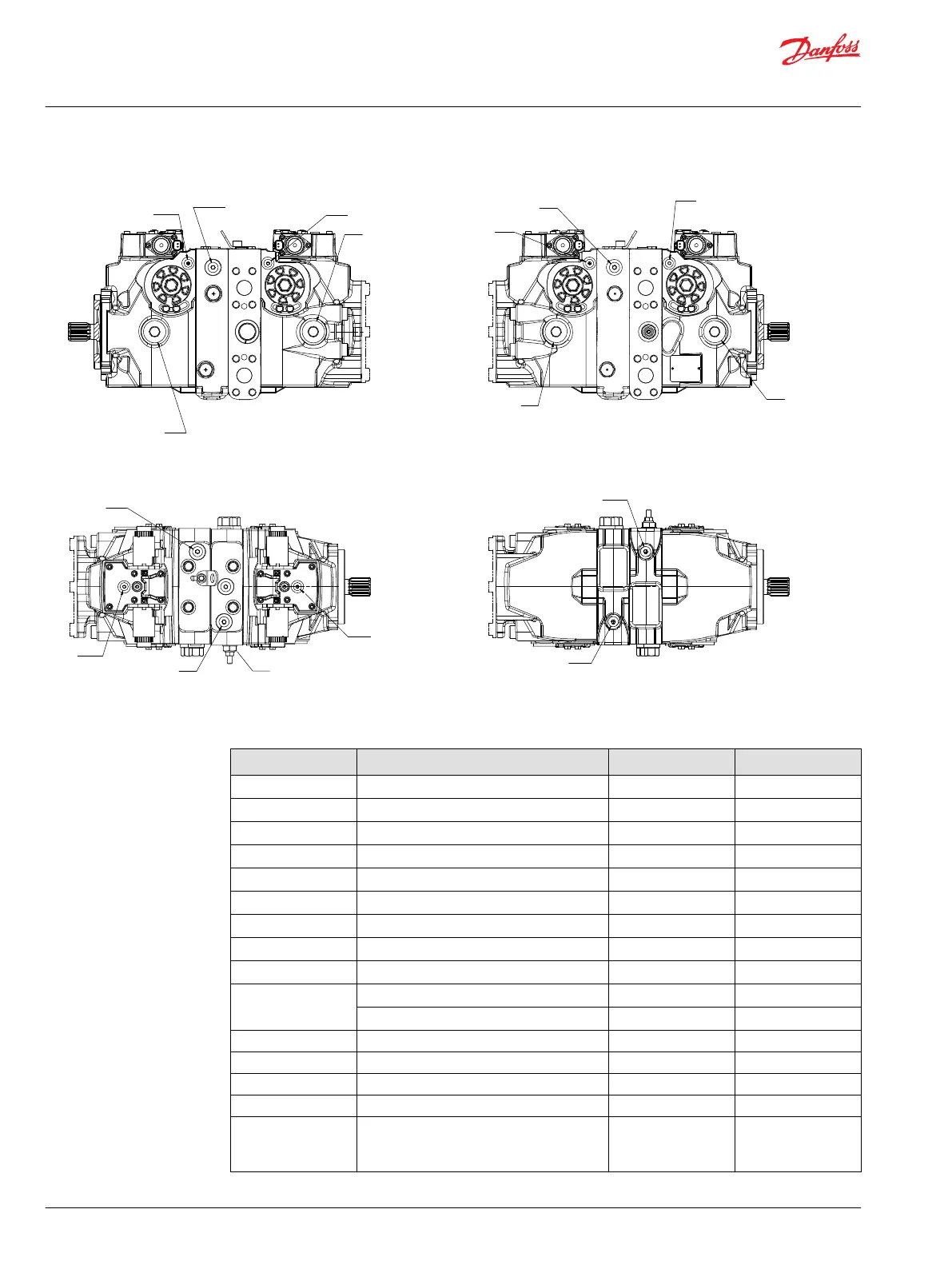

Fastener Size and Torque Chart
Item Fastener Wrench size Torque
D015 Neutral adjust screw 4 mm internal hex NA
D050 Control coil mounting screw 4 mm internal hex 8 N•m [5.9 lbf•ft]
D060 Neutral adjust locking nut 13 mm hex 10 N•m [7 lbf•ft]
D200 Swash plate feedback pin (not shown) 13 mm hex 25 N•m [18.4 lbf•ft]
D250 Electric control mounting screw 5 mm internal hex 13 N•m [9.5 lbf•ft]
E350 Servo cylinder locking screw 10 mm hex 14.5 N•m [11 lbf•ft]
G10 Control cut-off valve 1 1/16 in hex 45 N•m [33 lbf•ft]
G10B Control cut-off valve coil nut 24 mm hex 10 N•m [7.5 lbf•ft]
K007
Charge check / HPRV 8 mm internal hex 80 N•m [60 lbf•ft]
K350
A pad cover mounting screw 17 mm hex 64 N•m [47 lbf•ft]
B pad cover mounting screw 18 mm hex 76 N•m [56 lbf•ft]
L010 Pressure limiter adjust screw 8 mm internal hex NA
L300/L400/L101/L201 Pressure limiter cartridge 14 mm hex 30 N•m [22 lbf•ft]
L024 Pressure limiter locking nut 14 mm hex 20 N•m [15 lbf•ft]
L100/L200/L101/L201 High pressure relief valve 22 mm hex 70 N•m [52 lbf•ft]
V10-1
V10-2
V10-3
Charge relief valve 27 mm hex 52 N•m [38 lbf•ft]
Service Manual
H1T 045/053, 060/068 Axial Piston Tandem Pumps
Torque Chart
76 |
©
Danfoss | September 2020 AX152886481761en-000405
