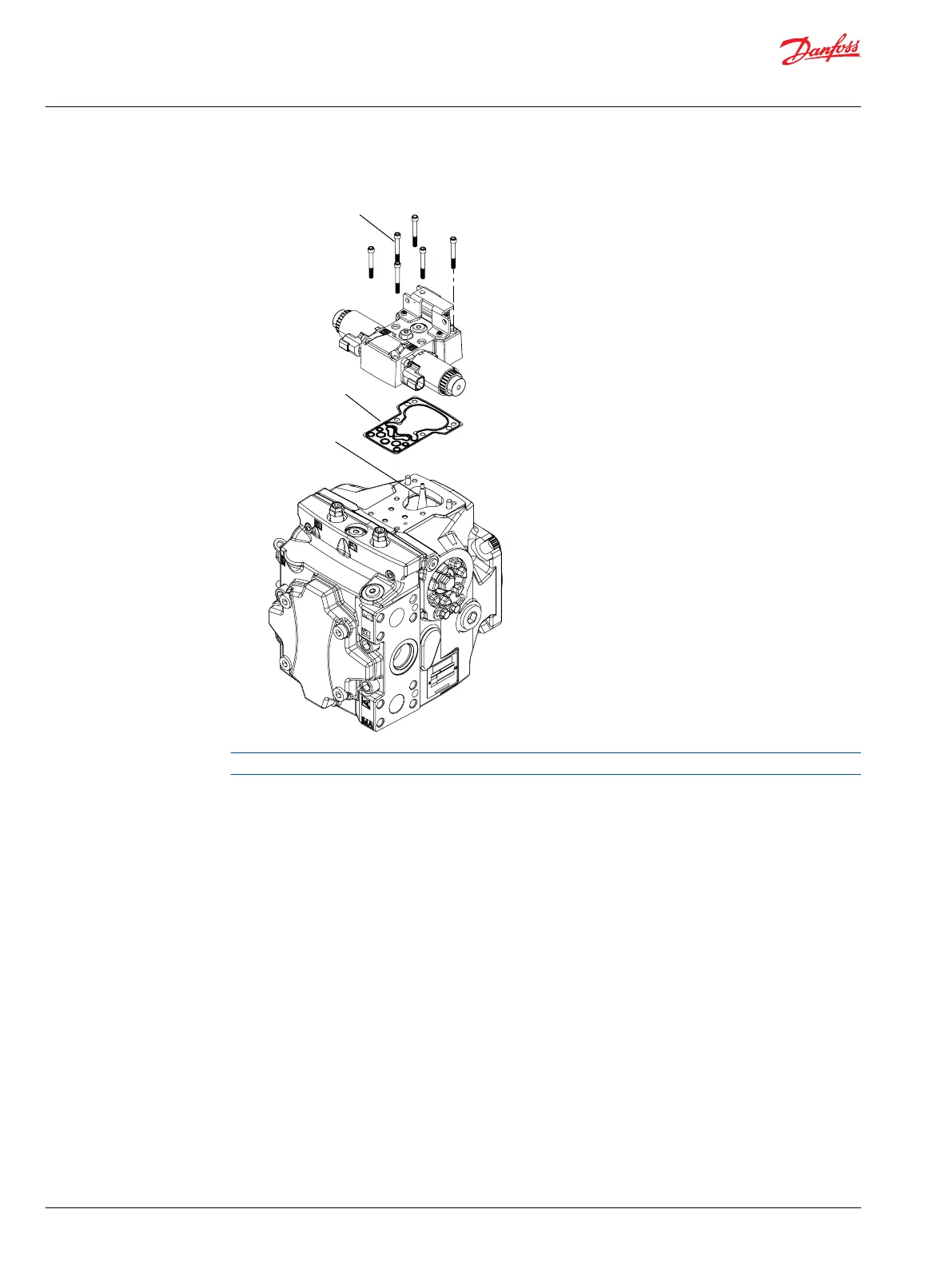

EDC with Angle Sensor Repair
D250
D150
Feedback link
Dowel pins (D300) must remain in the housing.
1. Clean pump externally with clean solvent to remove debris.
2. Using a 5 mm internal hex wrench, remove the six cap screws (D250)
3. Remove the control module and gasket (D150) and discard the gasket.
4. Install a new gasket (D150).
5. Ensure assembly fixture is positioned over the linkage spring in EDC center.
6. Position the control on the pump housing and ensure that feedback pin on swashplate is positioned
properly in control arm.
Service Manual
H1T 045/053, 060/068 Axial Piston Tandem Pumps
Minor repair
