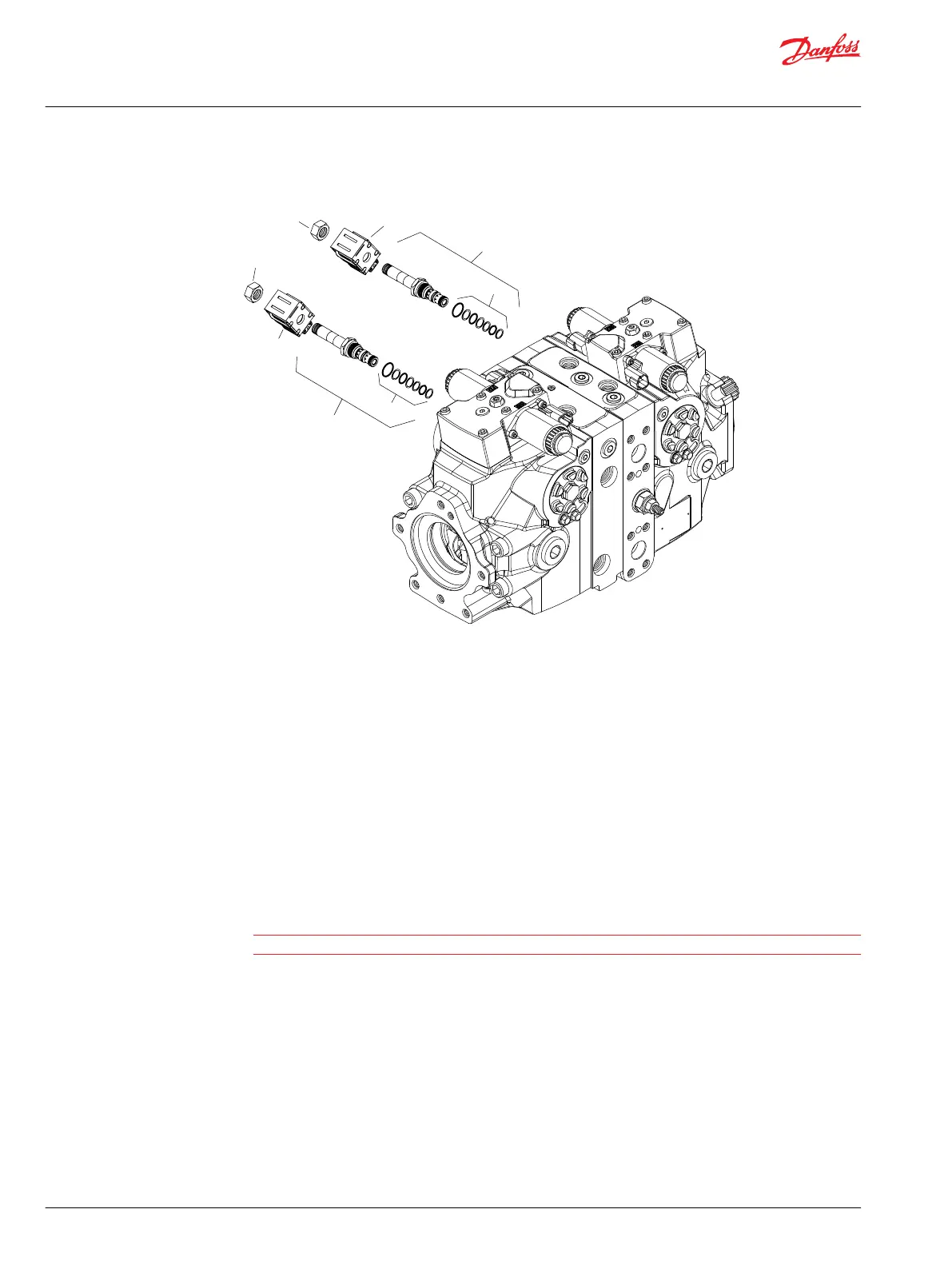

Control cutoff valve (060/068)
G10A
G10
G20
G30
G10A
G10
G20
G30
1. Disconnect the coil from the vehicle/machine wire harness.
2. Using a 24 mm hex wrench, remove the control cut-off valve coil nut (G30).
3. Remove the coil (G20).
4. Use a 1 1/16 in hex wrench to remove the control cut-off valve (G10).
5. Remove and discard the O-rings and backup rings (G10A).
6. Inspect the sealing surfaces of the pump and control valve for nicks or scratches.
7. Replace components as necessary.
8. Lubricate and install new O-rings (G10A) onto the valve.
9. Install the control valve (G10). Torque to 46 N•m [34 lbf•ft].
10. Slide the coil (G20) onto the valve.
11. Install the coil nut (G30). Torque to 9 N•m [7 lbf•ft].
C
Caution
Do not over torque.
12. Operate vehicle/machine through full range of controls to ensure proper operation.
Service Manual
H1T 045/053, 060/068 Axial Piston Tandem Pumps
Minor repair
74 |
©
Danfoss | September 2020 AX152886481761en-000405
