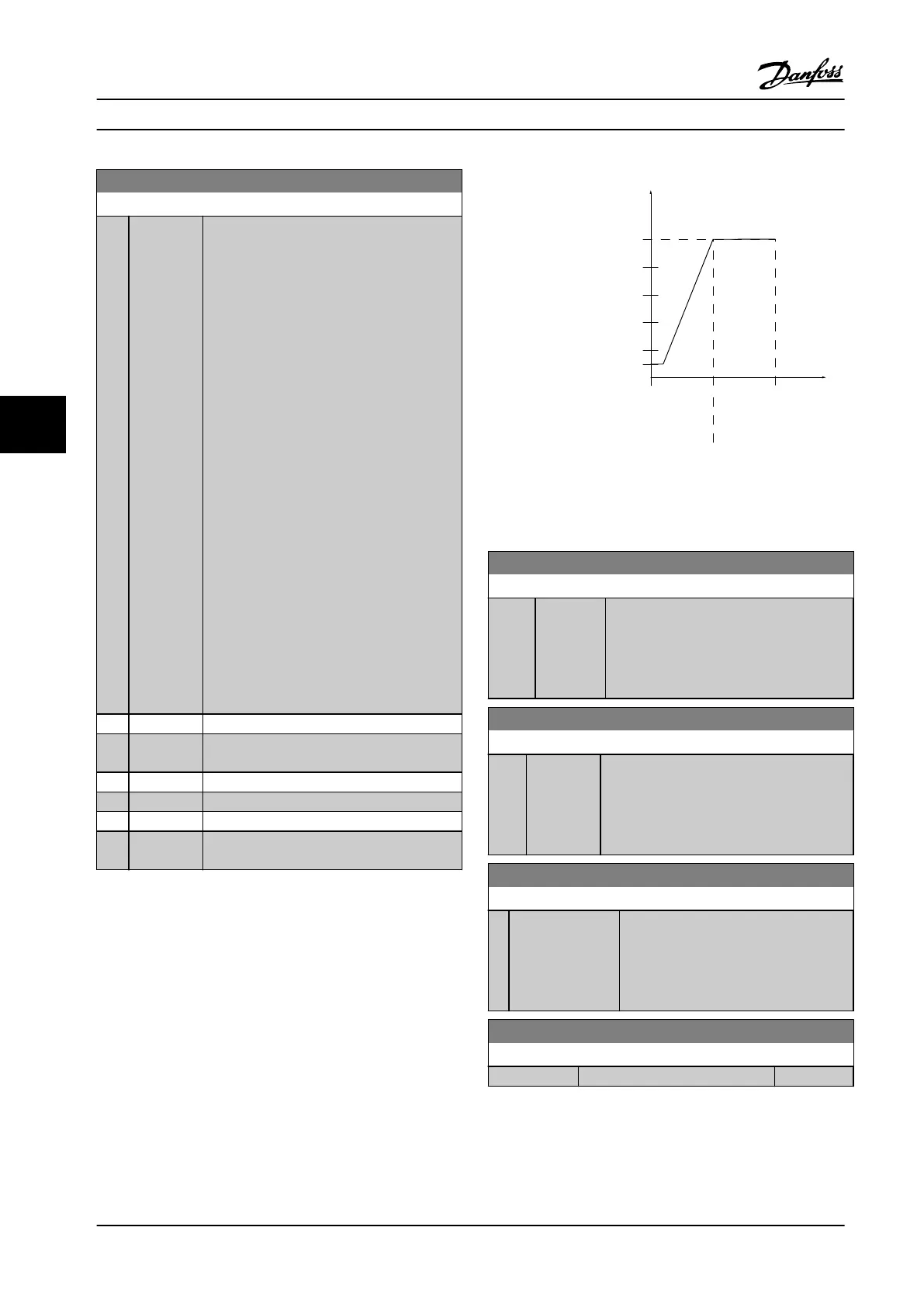

6-01 Live Zero Timeout Function
Option: Function:
Select the Timeout function. The function set
in parameter 6-01 Live Zero Timeout Function
will be activated if the input signal on
terminal 53 or 54 is below 50% of the value
in parameter 6-10 Terminal 53 Low Voltage,
parameter 6-12 Terminal 53 Low Current,
parameter 6-20 Terminal 54 Low Voltage or
parameter 6-22 Terminal 54 Low Current for a
time period
dened in parameter 6-00 Live
Zero Timeout Time. If several timeouts occur
simultaneously, the adjustable frequency drive
prioritizes the timeout functions as follows
1.
Parameter 6-01 Live Zero Timeout
Function
2.
Parameter 8-04 Control Timeout
Function
The output frequency of the adjustable
frequency drive can be:
•
[1] frozen at the present value
•
[2] overruled to stop
•
[3] overruled to jog speed
•
[4] overruled to max. speed
•
[5] overruled to stop with
subsequent trip
[0]
* O
[1] Freeze
output
[2] Stop
[3] Jogging
[4] Max. speed
[5] Stop and
trip
Ref./Feedback
[RPM]
Analog input
High Ref./
Feedb. Value'
Low Ref./
Feedb. Value'
'Low Voltage' or
'Low Current'
'High Voltage' or
'High Current'
130BA038.13
1 V 5 V 10 V
300
600
900
1200
1500
[V]
150
Par 6-xx
Par 6-xx
Par 6-xx
Par 6-xx
Figure 6.12
6-10 Terminal 53 Low Voltage
Range: Function:
0.07 V* [ 0 - par.
6-11 V]
Enter the low voltage value. This analog
input scaling value should correspond to
the low reference/feedback value set in
parameter 6-14 Terminal 53 Low Ref./Feedb.
Value.
6-11 Terminal 53 High Voltage
Range: Function:
10 V* [ par. 6-10
- 10 V]
Enter the high voltage value. This analog
input scaling value should correspond to the
high reference/feedback value set in
parameter 6-15 Terminal 53 High Ref./Feedb.
Value.
6-14 Terminal 53 Low Ref./Feedb. Value
Range: Function:
0* [-999999.999 -
999999.999 ]
Enter the analog input scaling value that
corresponds to the low voltage/low
current set in parameter 6-10 Terminal 53
Low Voltage and parameter 6-12 Terminal
53 Low Current.
6-15 Terminal 53 High Ref./Feedb. Value
Range: Function:
Size related* [-999999.999 - 999999.999 ]
How to Program
VLT
®
HVAC Drive FC 102
96 Danfoss A/S © 08/2014 All rights reserved. MG11F522
