Enclosure Type Size E1 E2 F1 F2 F3 F4
315-450 kW at
400 V
(380-480 V)
450-630 kW at
690 V
(525-690 V)
315-450 kW at
400 V
(380-480 V)
450-630 kW at
690 V
(525-690 V)
500-710 kW at
400 V
(380-480 V)
710-900 kW at
690 V
(525-690 V)
800-1000 kW at
400 V
(380-480 V)
1000-1200 kW at
690 V
(525-690 V)
500-710 kW at
400 V
(380-480 V)
710-900 kW at
690 V
(525-690 V)
800-1000 kW at
400 V
(380-480 V)
1000-1400 kW at
690 V
(525-690 V)
IP
NEMA
21, 54
Type 1/ Type 12
00
Chassis
21, 54
Type 1/Type 12
21, 54
Type 1/Type 12
21, 54
Type 1/Type 12
21, 54
Type 1/Type 12
Shipping
dimensions
[mm]
Height
840 831 2324 2324 2324 2324
Width 2197 1705 1569 1962 2159 2559
Depth 736 736 1130 1130 1130 1130
Frequency
converter
dimensions
[mm]
Height 2000 1547 2204 2204 2204 2204
Width 600 585 1400 1800 2000 2400
Depth 494 498 606 606 606 606
Max
weight
[kg]
313 277 1004 1246 1299 1541

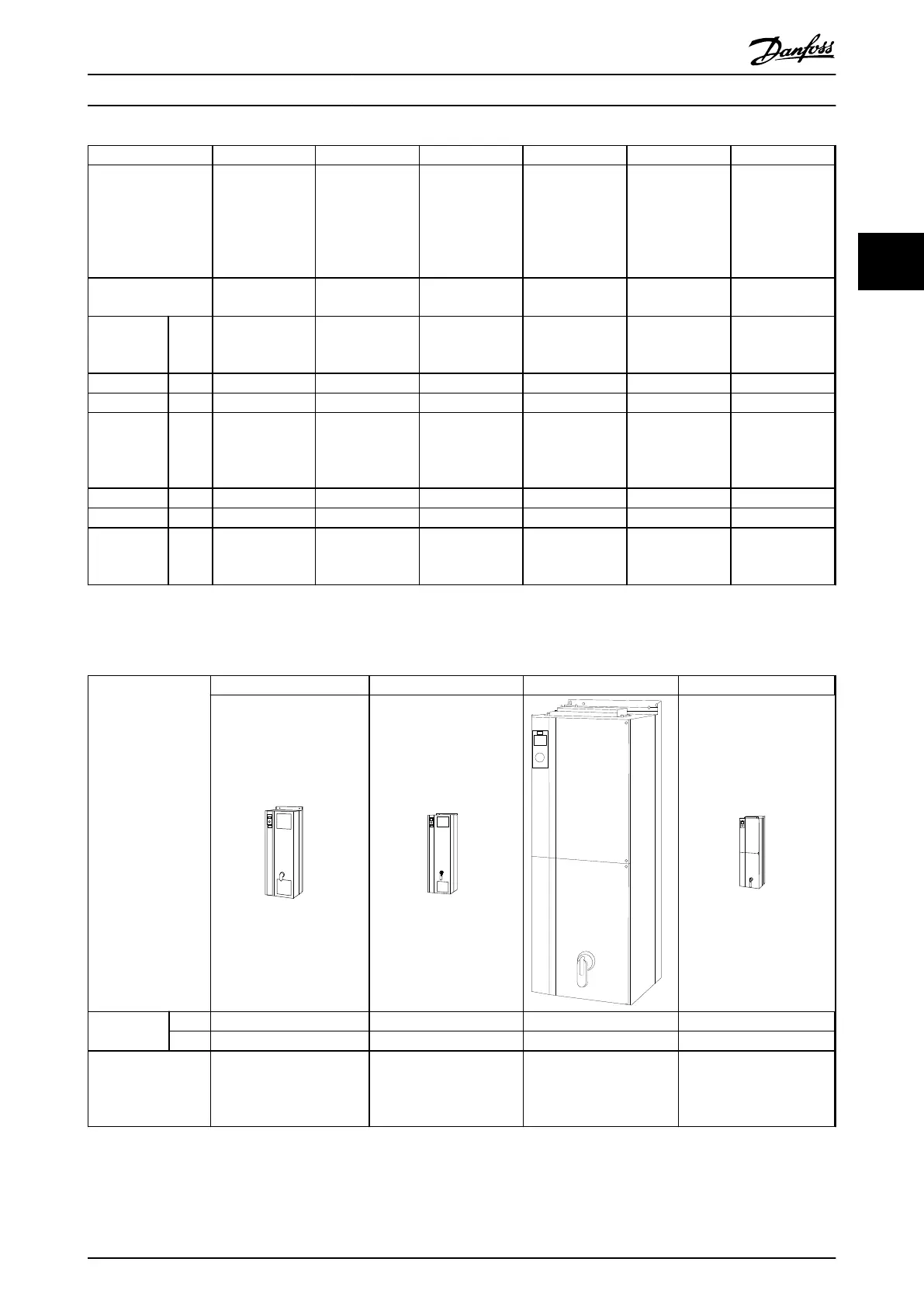

Table 3.4 Mechanical dimensions, Enclosure Types E and F
3.2.6
Rated Power
Enclosure type D1 D2 D3 D4
130BA816.10
130BA817.10
130BA819.10
130BA820.10
Enclosure
protection
IP 21/54 21/54 00 00
NEMA Type 1/Type 12 Type 1/Type 12 Chassis Chassis
Normal overload
rated power - 110%
overload torque
110 - 132 kW at 400 V
(380 - 480 V)
45 - 160 kW at 690 V
(525-690 V)
150 - 250 kW at 400 V
(380 - 480 V)
200 - 400 kW at 690 V
(525-690 V)
110 - 132 kW at 400 V
(380 - 480 V)
45 - 160 kW at 690 V
(525-690 V)
150 - 250 kW at 400 V
(380 - 480 V)
200 - 400 kW at 690 V
(525-690 V)
Table 3.5
Mechanical Installation VLT HVAC Drive FC 102 Operating Instructions
MG11F402 - Rev. 2013-12-16 19
3 3
