6.1.8 Changing a Text Value
If the selected parameter is a text value, change the text
value with the [
▲
]/[
▼
] keys.
[
▲
] increases the value, and [
▼
] decreases the value. Place
the cursor on the value to be saved and press [OK].
130BP068.10
740RPM
0 -01 Language
[0] English
10.64 A 1 [1]
0-0
*
Basic Settings

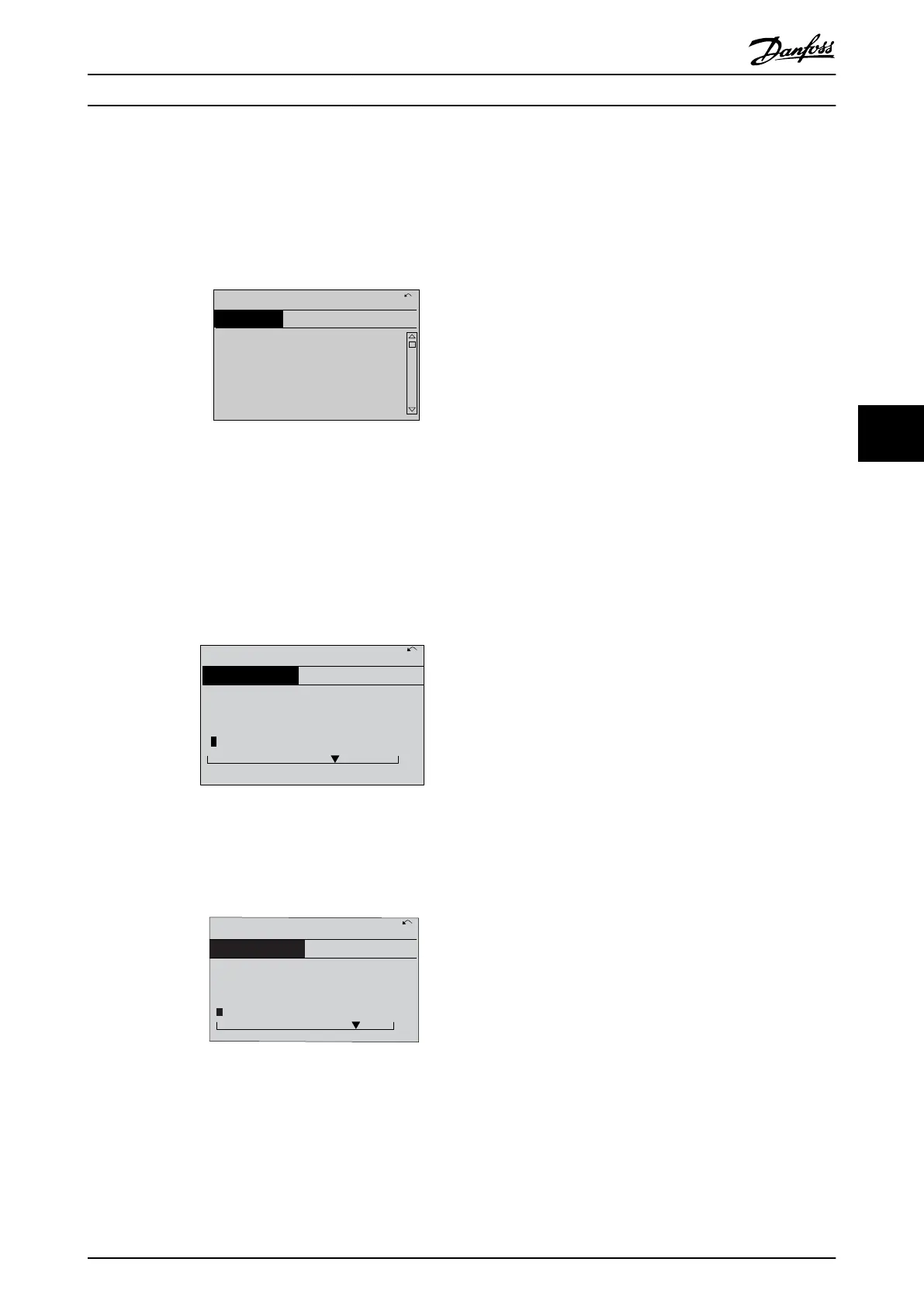

Illustration 6.20 Display Example
6.1.9 Changing a Group of Numeric Data
Values
If the selected parameter represents a numeric data value,
change the selected data value with the [◄] and [►] keys
as well as the up/down [
▲
] [
▼
] keys. Press [◄] and [►] to
move the cursor horizontally.
130BP069.10
1- 6*
113 RPM 1.78 A 1(1)
Load depen. setting
1 - 60 Low speed load
compensation
100%
Illustration 6.21 Display Example
Press [
▲
] and [
▼
] to change the data value. [
▲
] increases
the data value, and [
▼
] decreases the data value. Place the
cursor on the value to be saved and press [OK].
130BP070.10
1 - 60 Low speed load
compensation
1 0%
Load depen. setting 1- 6*
729RPM 6.21A 1(1)
6
Illustration 6.22 Display Example
6.1.10 Changing of Data Value, Step-by-
Step
Certain parameters can be changed step by step or
infinitely variably. This applies to parameter 1-20 Motor
Power [kW], parameter 1-22 Motor Voltage and
parameter 1-23 Motor Frequency.
The parameters are changed both as a group of numeric
data values and as numeric data values infinitely variably.
6.1.11 Read-out and Programming of
Indexed Parameters
Parameters are indexed when placed in a rolling stack.
15-30 Alarm Log: Error Code to 15-32 Alarm Log: Time
contain a fault log which can be read out. Select a
parameter, press [OK], and use [
▲
] and [
▼
] to scroll
through the value log.
Use parameter 3-10 Preset Reference as another example:
Select the parameter, press [OK], and use [
▲
] and [
▼
] to
scroll through the indexed values. To change the
parameter value, select the indexed value and press [OK].
Change the value by [
▲
] and [
▼
]. Press [OK] to accept the
new setting. Press [Cancel] to abort. Press [Back] to leave
the parameter.
6.2
Parameter Menu Structure
How to Programme VLT HVAC Drive FC 102 Operating Instructions
MG11F402 - Rev. 2013-12-16 111
