5 How to Operate the Frequency Converter
5.1 Operating with LCP
5.1.1 3 Ways of Operating
The frequency converter can be operated in 3 ways:
1. Graphical Local Control Panel (GLCP)
2. Numeric Local Control Panel (NLCP)
3. RS-485 serial communication or USB, both for PC
connection
If the frequency converter is fitted with fieldbus option,
refer to relevant documentation.
5.1.2
How to Operate Graphical LCP (GLCP)
The following instructions are valid for the GLCP (LCP 102).
The GLCP is divided into four functional groups
1. Graphical display with Status lines.
2. Menu keys and indicator lights (LEDs) - selecting
mode, changing parameters and switching
between display functions.
3. Navigation keys and indicator lights (LEDs).
4. Operation keys and indicator lights (LEDs).
Graphical display
The LCD-display is back-lit with a total of 6 alpha-numeric
lines. All data is displayed on the LCP which can show up
to 5 operating variables while in [Status] mode.
Display lines
a.
Status line Status messages displaying icons and
graphics.
b.
Line 1-2 Operator data lines displaying data and
variables defined or selected by the user. By
pressing the [Status] key, up to one extra line can
be added.
c.
Status line Status messages displaying text.
Auto
on
Reset
Hand
on
O
Status
Quick
Menu
Main
Menu
Alarm
Log
Back
Cancel
Info
OK
Status
1(0)
1234rpm 10,4A 43,5Hz
Run OK
43,5Hz
On
Alarm
Warn.
130BA018.13
1
2
3
4
b
a
c

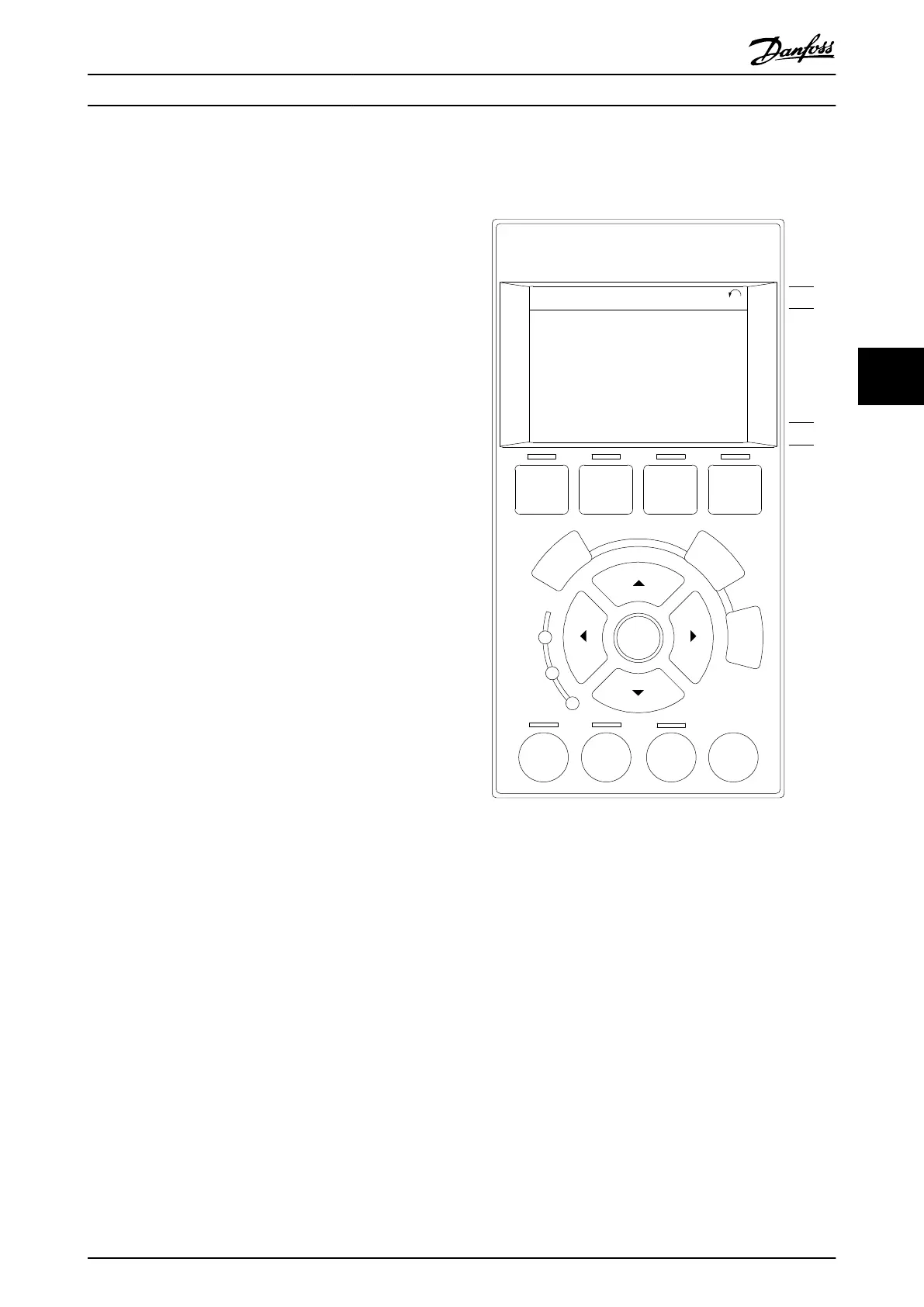

Illustration 5.1 Keypad
The display is divided into 3 sections
Top section
(a) shows the status when in status mode or up to 2
variables when not in status mode and in the case of
Alarm/Warning.
The number of the Active Set-up (selected as the Active
Set-up in 0-10 Active Set-up) is shown. When programming
in another Set-up than the Active Set-up, the number of
the Set-up being programmed appears to the right in
brackets.
Middle section
(b) shows up to 5 variables with related unit, regardless of
status. In case of alarm/warning, the warning is shown
instead of the variables.
Bottom section
(c) always shows the state of the frequency converter in
Status mode.
How to Operate the Frequenc...
VLT HVAC Drive FC 102 Operating Instructions
MG11F402 - Rev. 2013-12-16 73
5 5
