Danfoss Metasys N2 Operating Instructions

NOTICE
In motors without phase insulation paper or other
insulation reinforcement suitable for operation with
voltage supply (such as a frequency converter), fit a Sine-
wave filter on the output of the frequency converter.
U
1
V
1
W
1
175ZA114.11
96 97 98
96 97 98
FC
FC
Motor
Motor
U
2
V
2
W
2
U
1
V
1
W
1
U
2
V
2
W
2

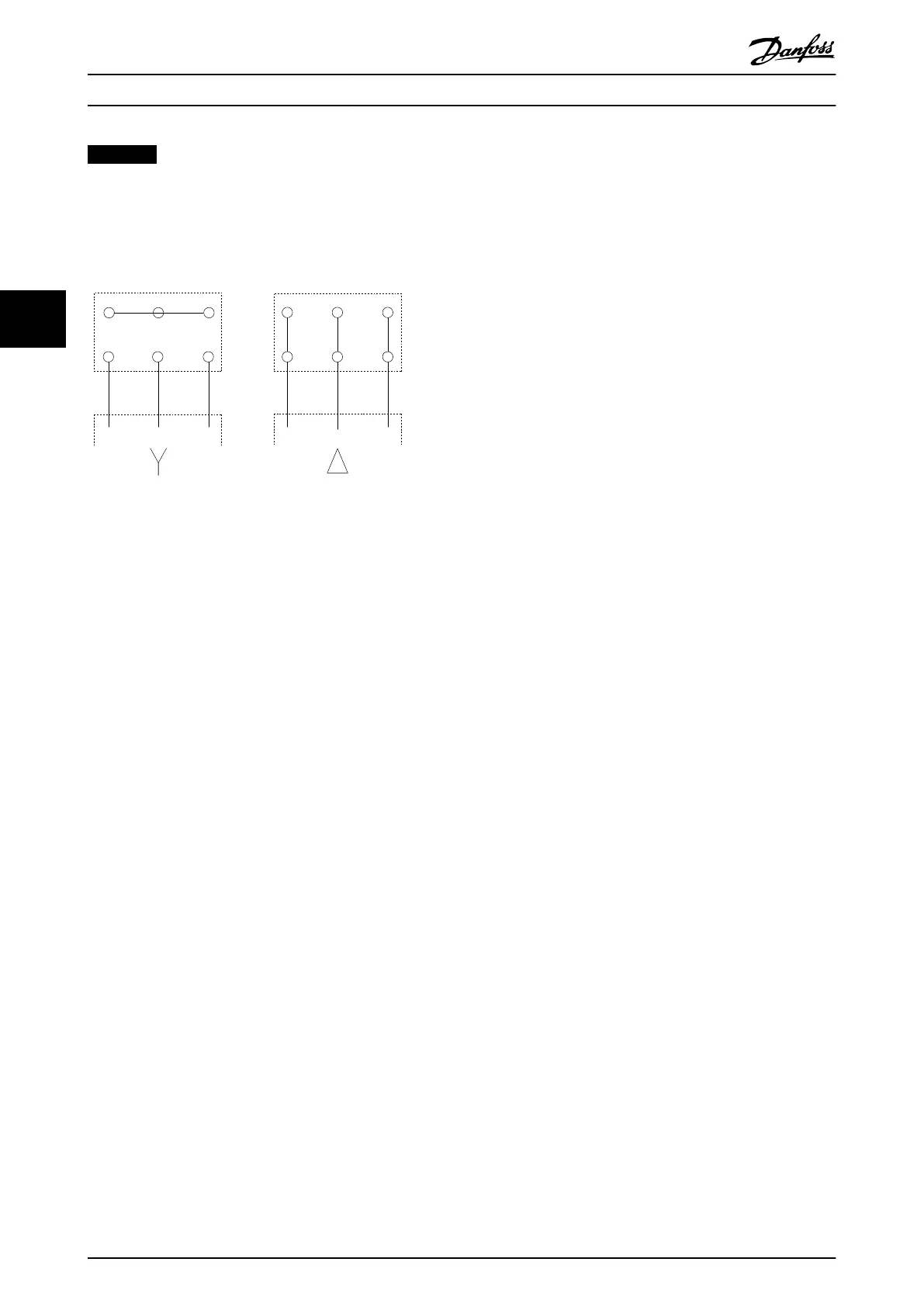

Illustration 4.2 Star/Delta Connections
Electrical Installation VLT HVAC Drive FC 102 Operating Instructions
46 MG11F402 - Rev. 2013-12-16
44
