-XD4.1
7
8
3
5
6
-XD4.4
4
-XD11.3
-XDL.1
1
2
R
TS
L1R
L3T
L2S
-XD4.3

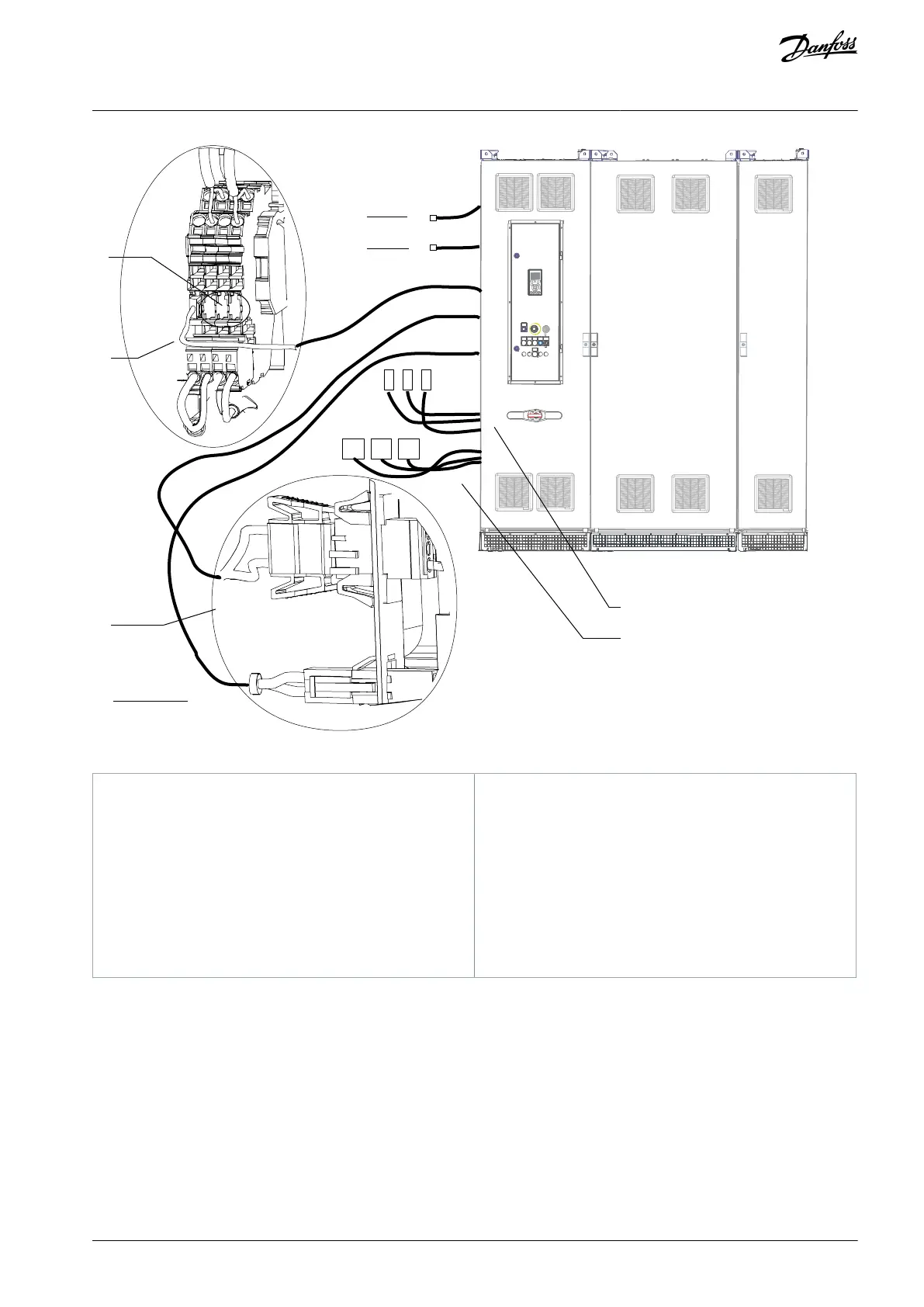

Illustration 45: Split Shipment Electrical Connections (Input Power Options Cabinet + E6h Drive Cabinet + Top Exit Cabinet)
1
Additional terminal connections
2
Thermal protection wiring harness to input filter
cabinet
3
DC-link harness to fan supply in the input filter cabi-
net
4
Cabinet heater supply harness to input filter cabinet
5
PHF contactor 1 supply harness to input filter cabi-
net (only with PHF option)
6
PHF contactor 2 supply harness to input filter cabi-
net (only with PHF option)
7
Mains cables (R/S/T) to input terminals (R/S/T) in the
input filter cabinet
8
Mains cables (L1R/L2S/L3T) to output terminals
(L1R/L2S/L3T) in the input filter cabinet
AQ262141314214en-000301 / 130R0880 | 79Danfoss A/S © 2021.11
Electrical Installation
VLT® HVAC Drive FC 102
Operating Guide
