Page 49 of 108
M-AP-001-EN Rev. N
Operating Envelopes
NOTE
The maximum Saturated Discharge Temperature (SDT) of the operating envelope represents the limit for compressors with
maximum FLA settings.
The maximum SDT for compressors with an FLA less than that is lower than the upper bound of the operating envelope and
depends on the FLA rating.
(1)
The actual obtainable capacity will be dependent on specic operating characteristics of each compressor model.
Refer to the current authorized compressor selection/rating software for more exact values and conditions.

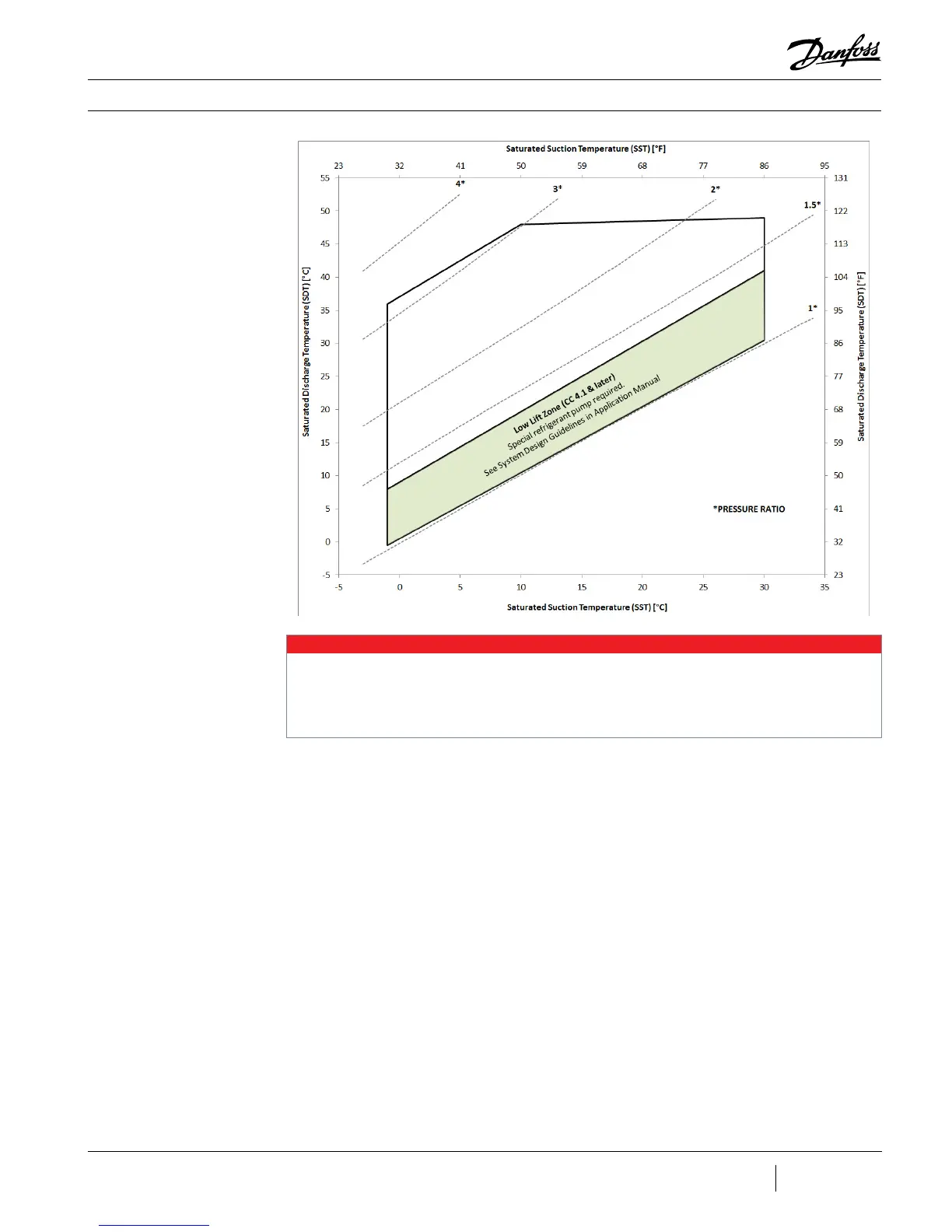

Figure 8-5 - Operating
Envelope, TT700 and TG520
(1)
