Sample Refrigeration Circuits

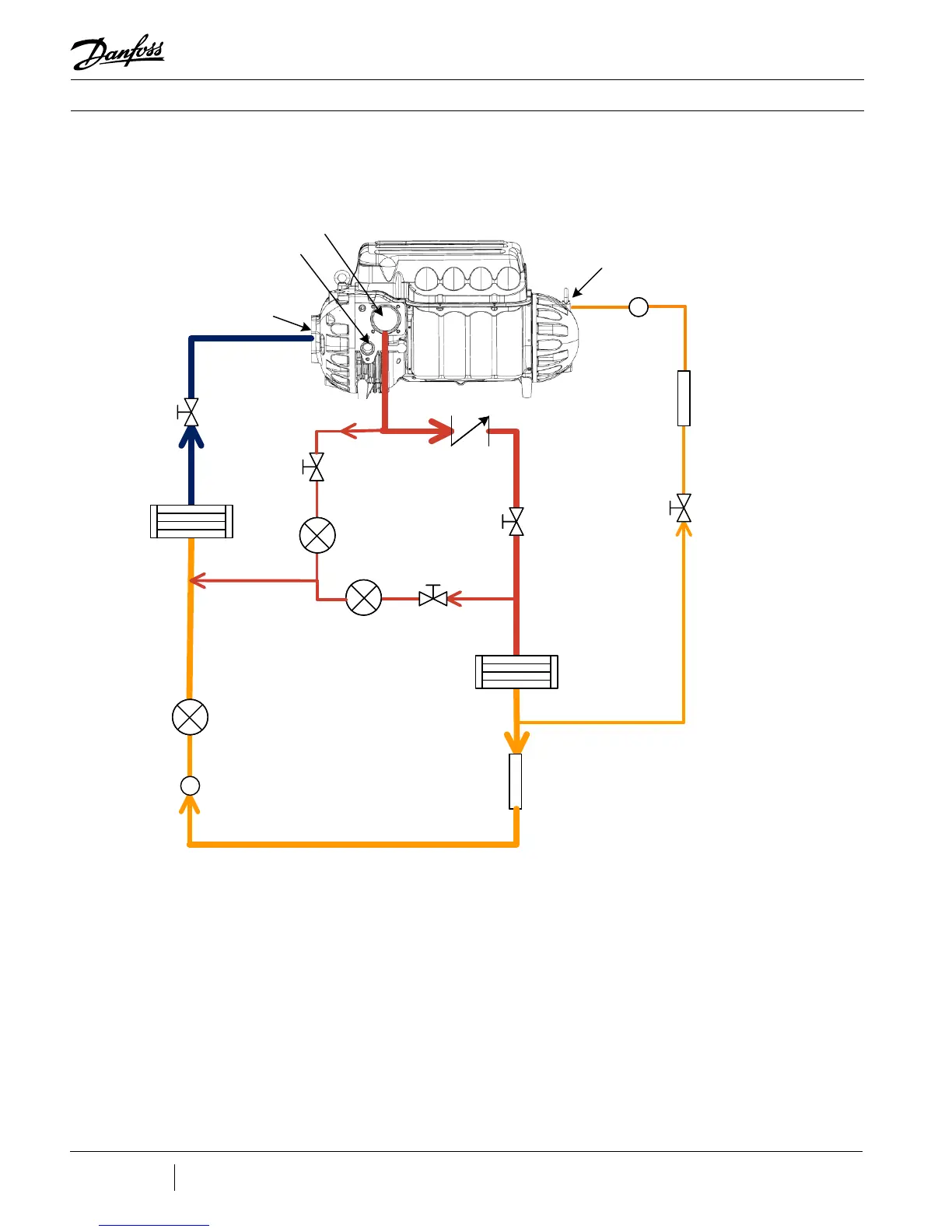

Figure 14-2 - Typical

Refrigeration Piping

Schematic With Staging and

Load Balancing Valve

Motor Cooling

Port

Suction

Port

Economizer

Port

Discharge Port

Sight

Glass

Sight

Glass

Filter/

Drier

Filter/

Drier

Evaporator

Expansion

Valv e

Expansion

Valv e

Staging

Valv e

Staging

Valv e

Load

Balancing

Valv e

Load

Balancing

Valv e

Condenser with

Subcooler

Filter/

Drier

Filter/

Drier

Sight

Glass

Check

Valv e
